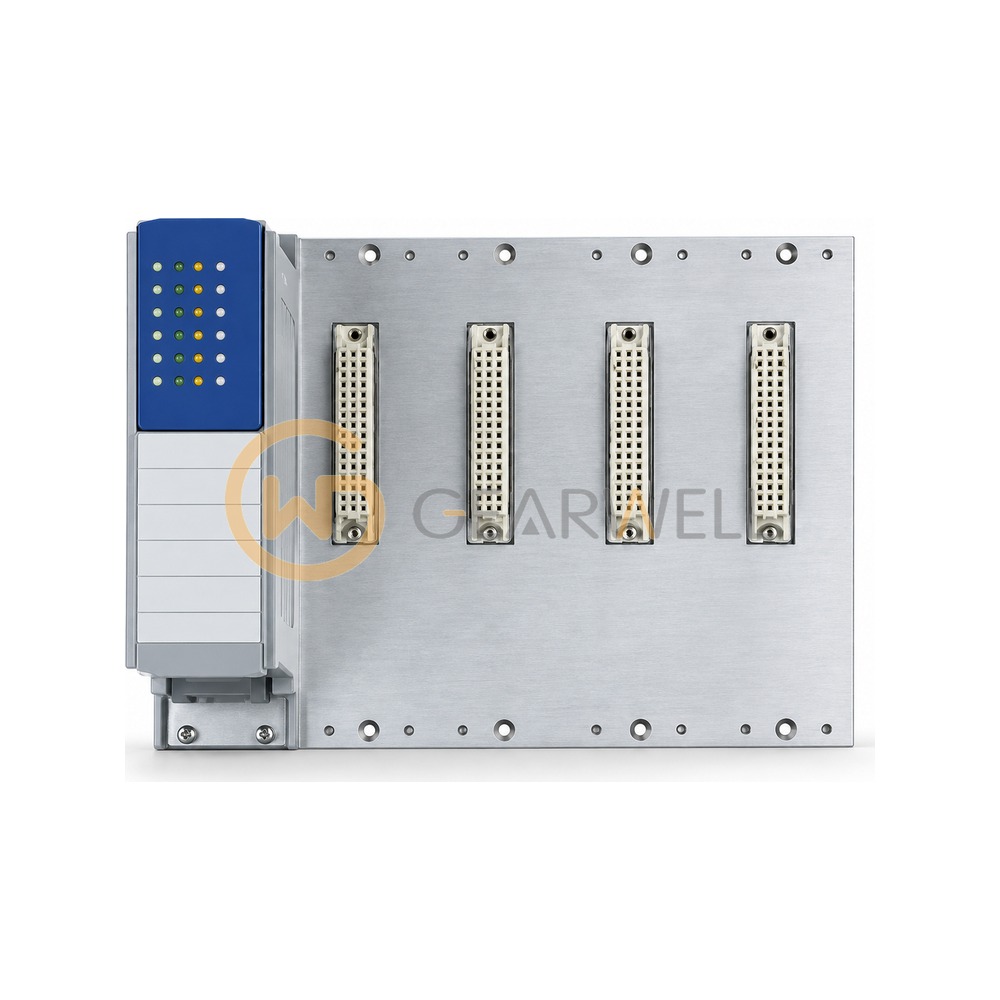

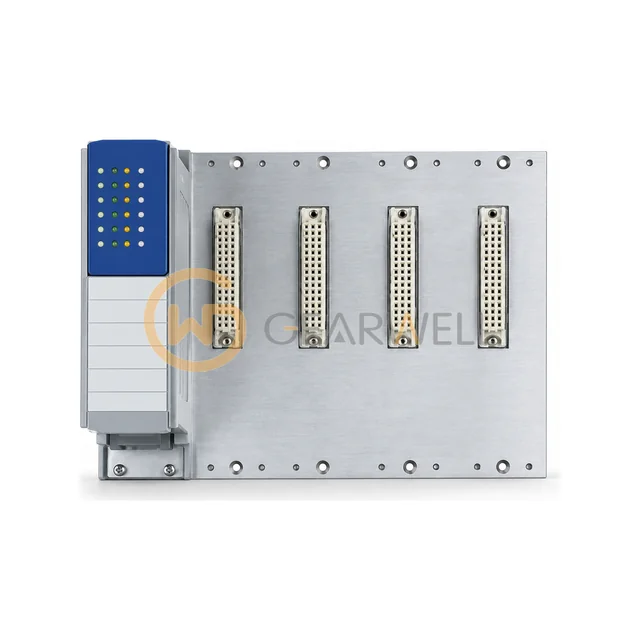

HIRSCHMANN MS30-1602SCAEHH09.0.10 MICE MS30 Modular Gigabit Switch
- Brand
- HIRSCHMANN
- Model
- MS30-1602SCAEHH09.0.10
- GEARWELL SKU
- GWP-000013275
- Category
- Industrial Communication
Key specifications
- Product code
- MS30 - Gigabit Ethernet uplinks, modular switch (MICE)
- Voltage code "C"
- as collected; not listed in the official configurator (listed option: A = 24 V DC, 18-32 V)
- Approvals (code A)
- CE, UL508, ISA 12.12.01 Class 1 Div. 2
- Software level (code E)
- Enhanced: HIPER-Ring, remote access, diagnosis, filters, redundancy
- Software release "09.0.10"
- as collected; not listed in the official configurator (release options: XX.X. latest, 09.1.)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HIRSCHMANN MS30-1602SCAEHH09.0.10 MICE MS30 Modular Gigabit Switch |
|---|---|
| Brand | HIRSCHMANN |
| Model | MS30-1602SCAEHH09.0.10 |
| Category | Industrial Communication |
| Product code | MS30 - Gigabit Ethernet uplinks, modular switch (MICE) |
| Voltage code "C" | as collected; not listed in the official configurator (listed option: A = 24 V DC, 18-32 V) |
| Approvals (code A) | CE, UL508, ISA 12.12.01 Class 1 Div. 2 |
| Software level (code E) | Enhanced: HIPER-Ring, remote access, diagnosis, filters, redundancy |
| Software release "09.0.10" | as collected; not listed in the official configurator (release options: XX.X. latest, 09.1.) |
| Temperature range (code S) | 0 to +60 °C |
| 10/100 Mbit/s ports (code 16) | 16 |
| 10/100/1000 Mbit/s ports (code 02) | 2 |
| Software configuration / customization (codes H, H) | Standard / Standard |
