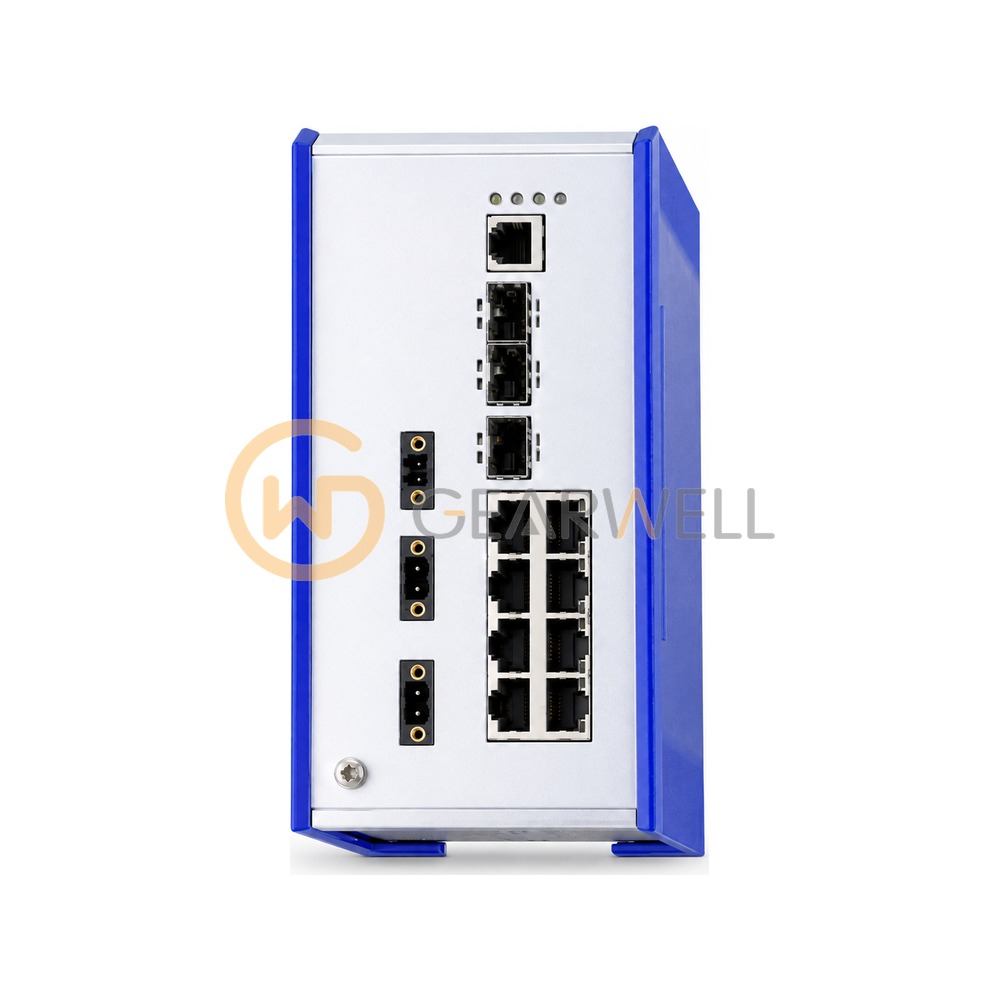

HIRSCHMANN RSP35-08033O6TT-SCCY9HPE3S07.0.01 RSP Rail Switch
- Brand
- HIRSCHMANN
- Model
- RSP35-08033O6TT-SCCY9HPE3S07.0.01
- GEARWELL SKU
- GWP-000013279
- Category
- Industrial Communication
Key specifications
- Approvals (code Y9)
- CE, FCC, EN 61131 + cUL508
- Ports (codes 08, 03)
- 8 x 10/100 Mbit/s, 3 x 10/100/1000 Mbit/s
- Customization (code HP)
- PRP
- Voltage range (code CC)
- 2 x 24-48 V DC
- Software release "07.0.01"
- as collected; not listed in the official configurator (options: XX.X. latest software version, XX latest maintenance version)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HIRSCHMANN RSP35-08033O6TT-SCCY9HPE3S07.0.01 RSP Rail Switch |
|---|---|
| Brand | HIRSCHMANN |
| Model | RSP35-08033O6TT-SCCY9HPE3S07.0.01 |
| Category | Industrial Communication |
| Approvals (code Y9) | CE, FCC, EN 61131 + cUL508 |
| Ports (codes 08, 03) | 8 x 10/100 Mbit/s, 3 x 10/100/1000 Mbit/s |
| Customization (code HP) | PRP |
| Voltage range (code CC) | 2 x 24-48 V DC |
| Software release "07.0.01" | as collected; not listed in the official configurator (options: XX.X. latest software version, XX latest maintenance version) |
| Temperature range (code S) | 0 to +60 °C |
| Product / data rate / hardware (RSP, 3, 5) | RSP; 10/100 and 10/100/1000 Mbit/s ports; Enhanced hardware (PRP, Fast MRP, HSR, DLR, NAT with Layer 3 type) |
| Uplink / port configuration (codes 3O6, TT) | 3 x SFP slot (1000 Mbit); all other ports twisted pair / RJ45 |
| Software configuration / level (codes E, 3S) | Enhanced encryption / HiOS Layer 3 Standard |
