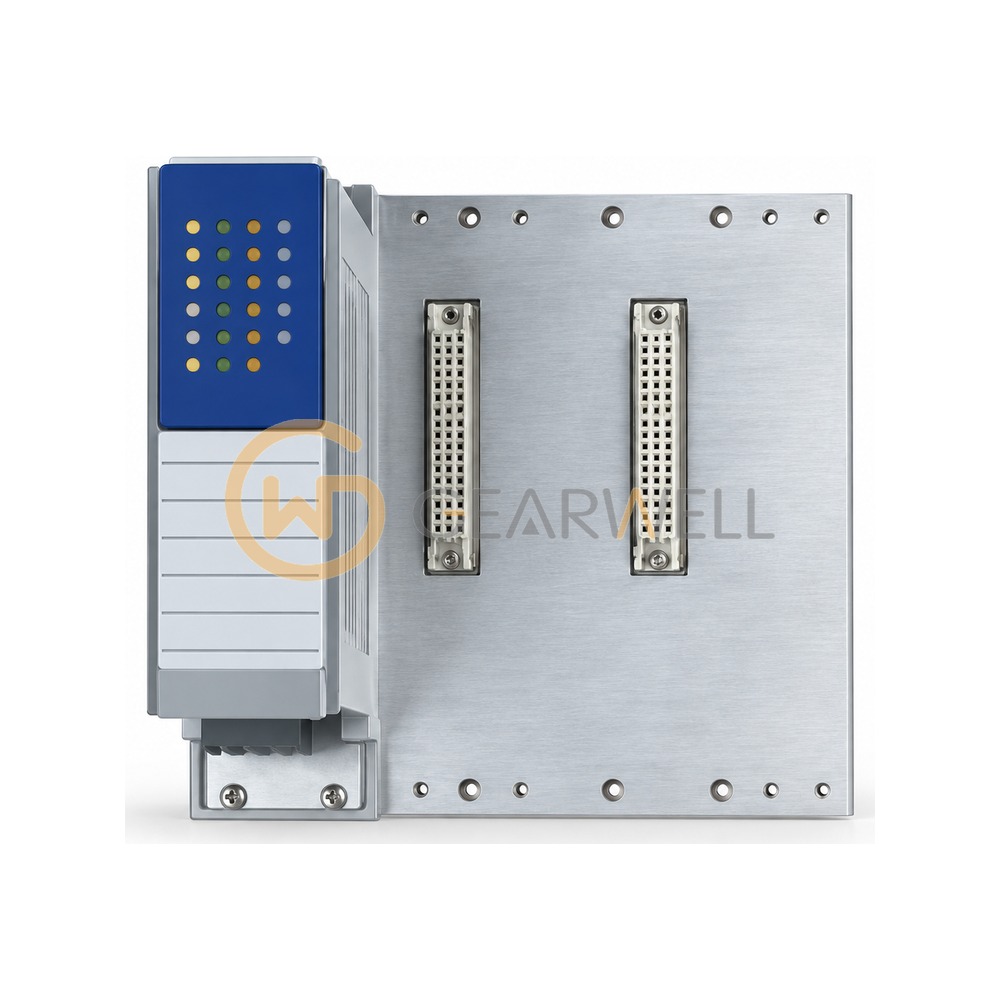

HIRSCHMANN MS20-0800SAAEH-H01.0.05 MICE MS20 Modular Managed Switch
- Brand
- HIRSCHMANN
- Model
- MS20-0800SAAEH-H01.0.05
- GEARWELL SKU
- GWP-000013273
- Category
- Industrial Communication
Key specifications
- Product code
- MS20 - Fast Ethernet uplinks, modular switch (MICE)
- Approvals (code A)
- CE, UL508, ISA 12.12.01 Class 1 Div. 2
- Code suffix "-H01.0.05"
- as collected; software release 01.0.05 and this hyphen position are not listed in the official configurator (release options: XX.X. latest, 09.1.)
- Voltage range (code A)
- 24 V DC (18-32 V)
- Software level (code E)
- Enhanced: HIPER-Ring, remote access, diagnosis, filters, redundancy
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HIRSCHMANN MS20-0800SAAEH-H01.0.05 MICE MS20 Modular Managed Switch |
|---|---|
| Brand | HIRSCHMANN |
| Model | MS20-0800SAAEH-H01.0.05 |
| Category | Industrial Communication |
| Product code | MS20 - Fast Ethernet uplinks, modular switch (MICE) |
| Approvals (code A) | CE, UL508, ISA 12.12.01 Class 1 Div. 2 |
| Code suffix "-H01.0.05" | as collected; software release 01.0.05 and this hyphen position are not listed in the official configurator (release options: XX.X. latest, 09.1.) |
| Voltage range (code A) | 24 V DC (18-32 V) |
| Software level (code E) | Enhanced: HIPER-Ring, remote access, diagnosis, filters, redundancy |
| Temperature range (code S) | 0 to +60 °C |
| 10/100 Mbit/s ports (code 08) | 8 |
| 10/100/1000 Mbit/s ports (code 00) | 0 |
| Software configuration / customization (codes H, H) | Standard / Standard |
