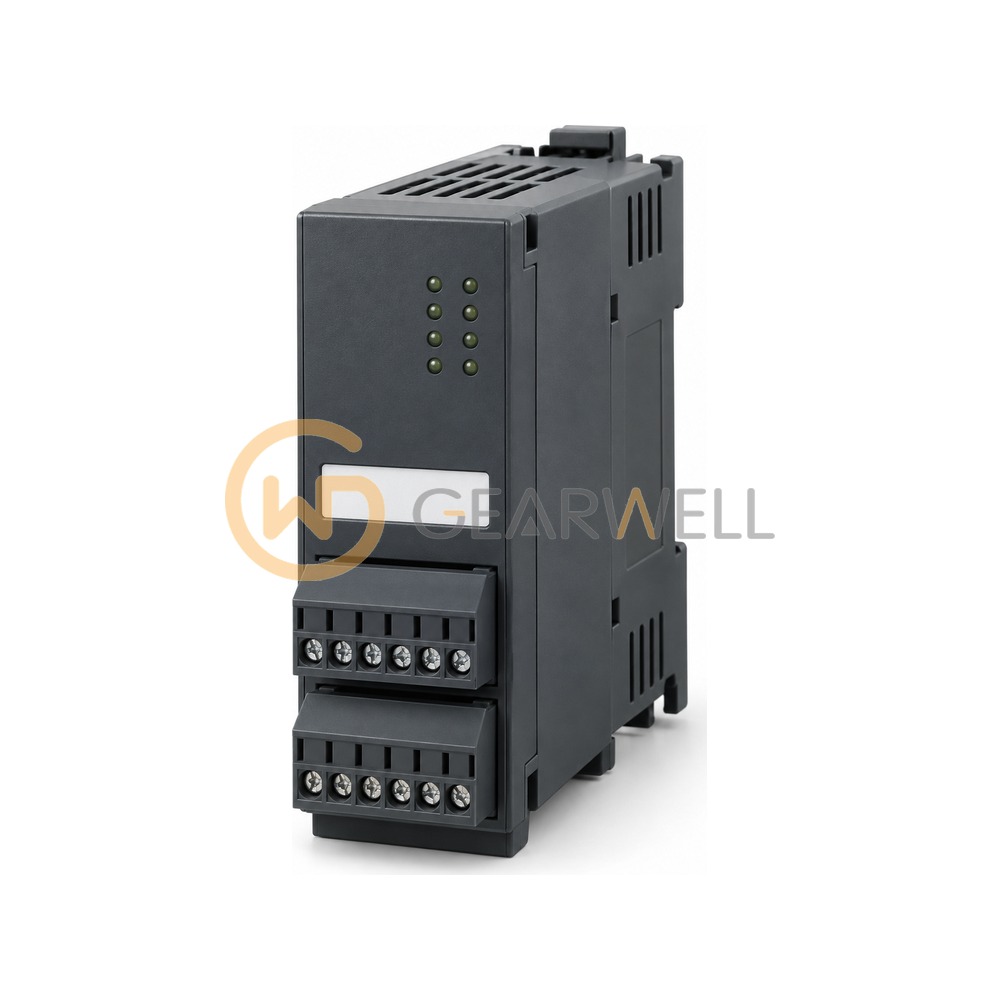

GE IC670MDL930K Field Control Isolated Relay Output Module 8-Point
- Brand
- GE
- Model
- IC670MDL930K
- GEARWELL SKU
- GWP-000013305
- Category
- PLCs & I/O
Key specifications
- Outputs
- 8 isolated: 6 Form A (NO) + 2 Form C (NO/NC)
- Isolation
- 250 VAC continuous, 1500 VAC for 1 minute
- Rated voltage
- 5/24/125 VDC, 120/240 VAC
- Revision suffix
- K (as collected; hardware revision, not part of the catalog number)
- Base catalog number
- IC670MDL930
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC670MDL930K Field Control Isolated Relay Output Module 8-Point |
|---|---|
| Brand | GE |
| Model | IC670MDL930K |
| Category | PLCs & I/O |
| Outputs | 8 isolated: 6 Form A (NO) + 2 Form C (NO/NC) |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
| Rated voltage | 5/24/125 VDC, 120/240 VAC |
| Revision suffix | K (as collected; hardware revision, not part of the catalog number) |
| Base catalog number | IC670MDL930 |
| Max. load current (resistive) | 2.0 A per point (5-265 VAC / 5-30 VDC), 16 A per module |
| Current drawn from BIU power supply | 313 mA max. |
