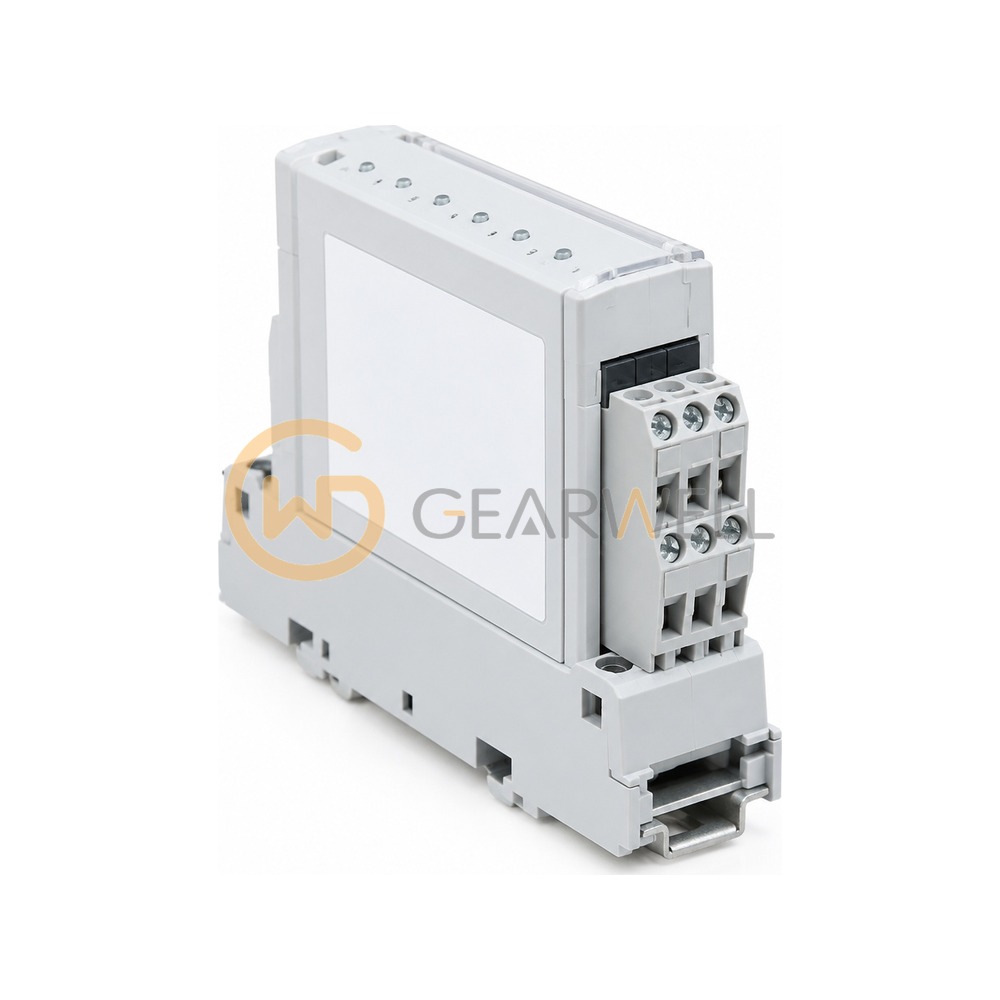

GE IC670MDL730 Field Control 24VDC 2A 8-Point ESCP Output Module
- Brand
- GE
- Model
- IC670MDL730
- GEARWELL SKU
- GWP-000034261
- Category
- PLCs & I/O
Key specifications
- Outputs
- 8, one group, positive logic
- Evidence
- GE Fanuc GFK-1288B 24 VDC Positive Logic ESCP Output Module datasheet (hosted at qualitrol.com)
- Isolation
- 250 VAC continuous; 1500 VAC for 1 minute
- Protection
- short-circuit, overcurrent, MOV on each output
- Load current
- 2.0 A max per point, 8 A max per module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC670MDL730 Field Control 24VDC 2A 8-Point ESCP Output Module |
|---|---|
| Brand | GE |
| Model | IC670MDL730 |
| Category | PLCs & I/O |
| Outputs | 8, one group, positive logic |
| Evidence | GE Fanuc GFK-1288B 24 VDC Positive Logic ESCP Output Module datasheet (hosted at qualitrol.com) |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Protection | short-circuit, overcurrent, MOV on each output |
| Load current | 2.0 A max per point, 8 A max per module |
| User supply voltage | 18-30 VDC, 24 VDC nominal |
| Response time on/off | 500 µs max |
| Current from BIU supply | 125 mA max |
| Inrush current per point | 10 A max for 10 ms |
