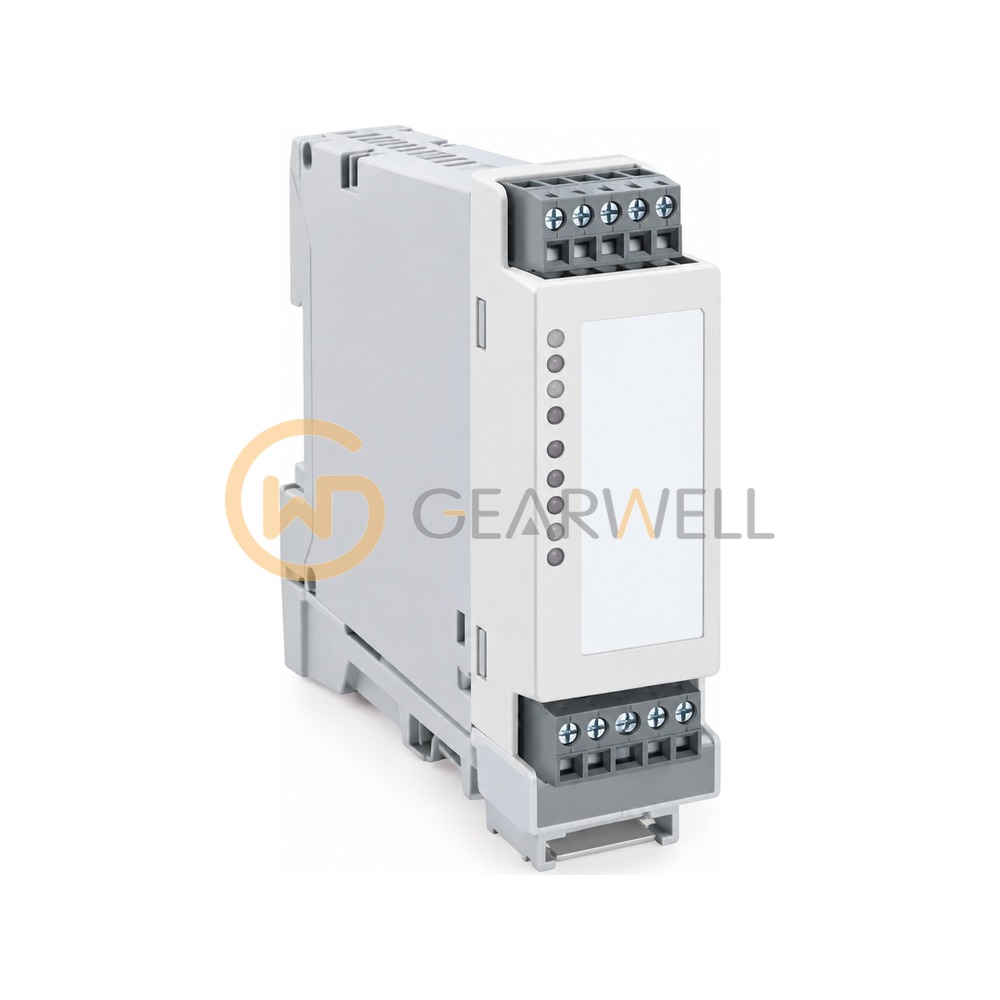

GE IC670MDL640 Field Control 24VDC Pos/Neg 16-Point Input Module
- Brand
- GE
- Model
- IC670MDL640
- GEARWELL SKU
- GWP-000025719
- Category
- PLCs & I/O
Key specifications
- Inputs
- 16 (one group), positive or negative logic
- Isolation
- 250 VAC continuous, 1500 VAC for 1 minute
- Input current
- 7.5 mA per point @ 24 VDC
- Rated voltage
- 24 VDC
- On state voltage
- +15 to +30 V (pos) / -15 to -30 V (neg)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC670MDL640 Field Control 24VDC Pos/Neg 16-Point Input Module |
|---|---|
| Brand | GE |
| Model | IC670MDL640 |
| Category | PLCs & I/O |
| Inputs | 16 (one group), positive or negative logic |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
| Input current | 7.5 mA per point @ 24 VDC |
| Rated voltage | 24 VDC |
| On state voltage | +15 to +30 V (pos) / -15 to -30 V (neg) |
| Input voltage range | 0-30 VDC |
| Response time on / off | 6 ms typ, 10 ms max |
| Current from BIU power supply | 75 mA typ, 83 mA max |
