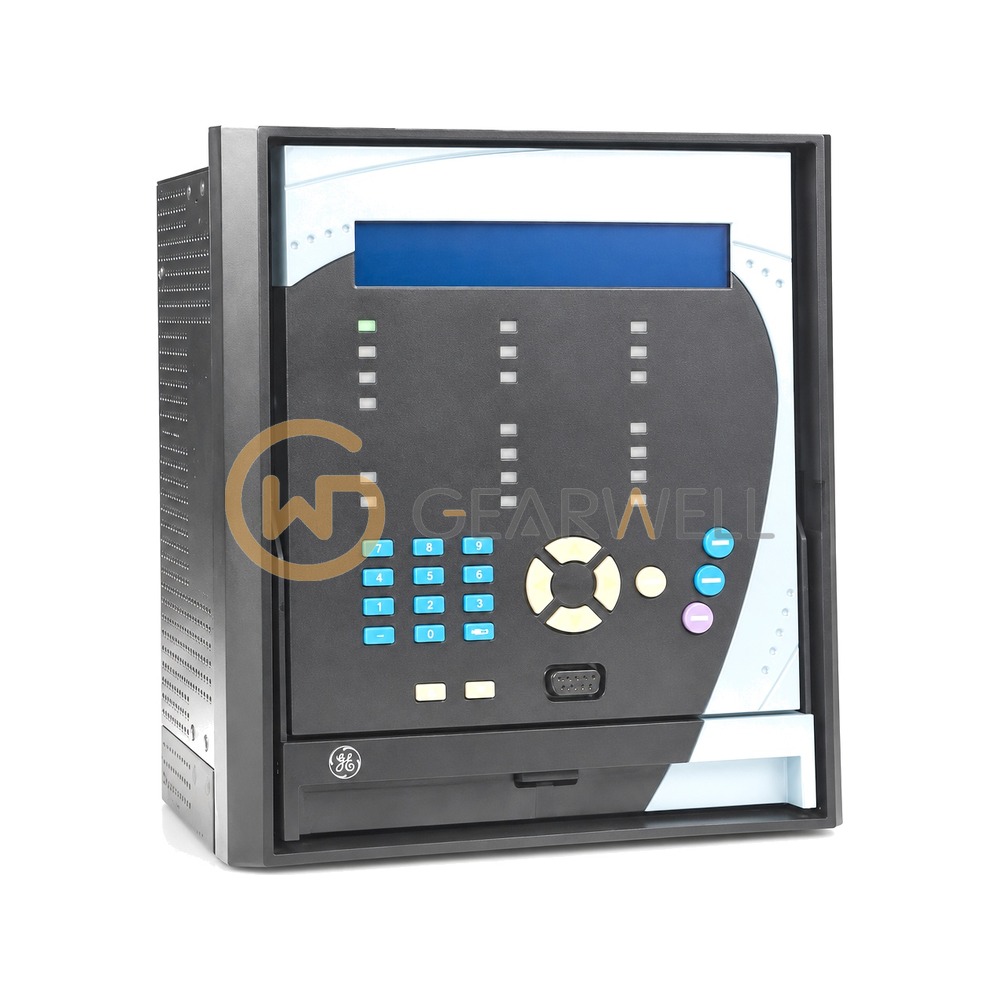

GE 745-W2-P1-G1-HI-E-H Multilin 745 Transformer Protection Relay
- Brand
- GE
- Model
- 745-W2-P1-G1-HI-E-H
- GEARWELL SKU
- GWP-000034419
- Category
- Circuit Protection
Key specifications
- Evidence
- GE Multilin 745 instruction manual 1601-0161-A9 / GEK-106635H, Table 2-1 order codes (gegridsolutions.com)
- Options A / L / R
- not in this code (analog I/O, loss of life, restricted ground fault not fitted)
- Control power (HI)
- 90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz
- Code as collected
- SR745-W2-P1-G1-HI-E-H (order code written 745-...)
- Display/Ethernet (E)
- Enhanced display, larger LCD
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE 745-W2-P1-G1-HI-E-H Multilin 745 Transformer Protection Relay |
|---|---|
| Brand | GE |
| Model | 745-W2-P1-G1-HI-E-H |
| Category | Circuit Protection |
| Evidence | GE Multilin 745 instruction manual 1601-0161-A9 / GEK-106635H, Table 2-1 order codes (gegridsolutions.com) |
| Options A / L / R | not in this code (analog I/O, loss of life, restricted ground fault not fitted) |
| Control power (HI) | 90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz |
| Code as collected | SR745-W2-P1-G1-HI-E-H (order code written 745-...) |
| Display/Ethernet (E) | Enhanced display, larger LCD |
| Harsh environment (H) | Harsh (chemical) environment conformal coating |
| Windings per phase (W2) | Two windings per phase |
| Phase current inputs (P1) | Winding 1 = 1 A, Winding 2 = 1 A |
| Ground current inputs (G1) | Winding 1/2 = 1 A, Winding 2/3 = 1 A |
