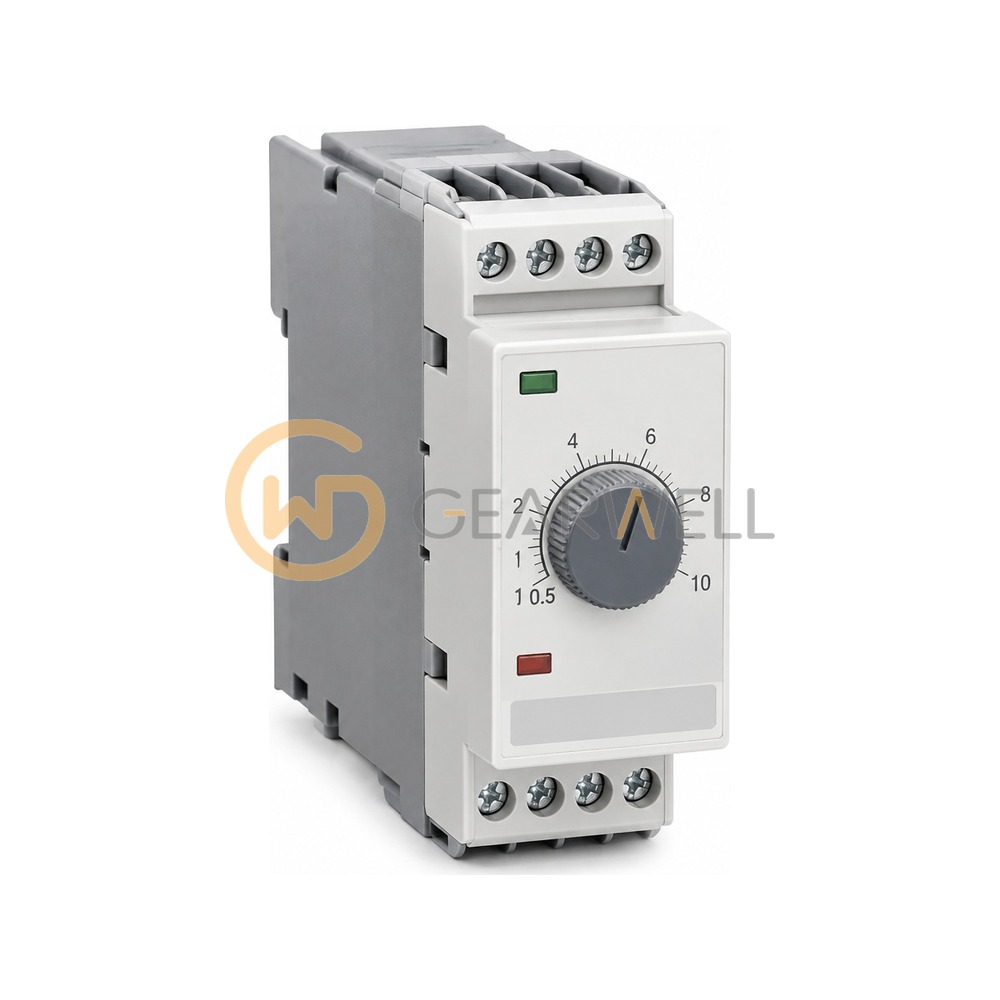

GE MVTT14B1BA0773C MVTT 14 Static Digital Time Delay Relay
- Brand
- GE
- Model
- MVTT14B1BA0773C
- GEARWELL SKU
- GWP-000034416
- Category
- Circuit Protection
Key specifications
- Case
- Size 2
- Accuracy
- ±2 % of setting or +20 ms -0 ms, whichever is greater
- Brand note
- MiDOS-range relay originally made by GEC Alstom / ALSTOM / AREVA T&D; now GE Vernova Grid Solutions
- Relay type
- MVTT 14 (time-delayed pick-up)
- Timing ranges
- 1 ms-1 s / 10 ms-10 s / 0.1-100 s / 1-1000 s / 10-10000 s (specify on order)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE MVTT14B1BA0773C MVTT 14 Static Digital Time Delay Relay |
|---|---|
| Brand | GE |
| Model | MVTT14B1BA0773C |
| Category | Circuit Protection |
| Case | Size 2 |
| Accuracy | ±2 % of setting or +20 ms -0 ms, whichever is greater |
| Brand note | MiDOS-range relay originally made by GEC Alstom / ALSTOM / AREVA T&D; now GE Vernova Grid Solutions |
| Relay type | MVTT 14 (time-delayed pick-up) |
| Timing ranges | 1 ms-1 s / 10 ms-10 s / 0.1-100 s / 1-1000 s / 10-10000 s (specify on order) |
| Output contacts | 4 change-over |
| Operation indicator | Non-volatile hand-reset LED trip indicator |
| Code suffix "B1BA0773C" | as collected; not listed in an official model-number table (GE brochures give no order-code table; specs depend on the exact model) |
| DC auxiliary supply ratings | 24/27, 30/34, 48/54, 110/125, 220/250 V DC (specify on order) |
