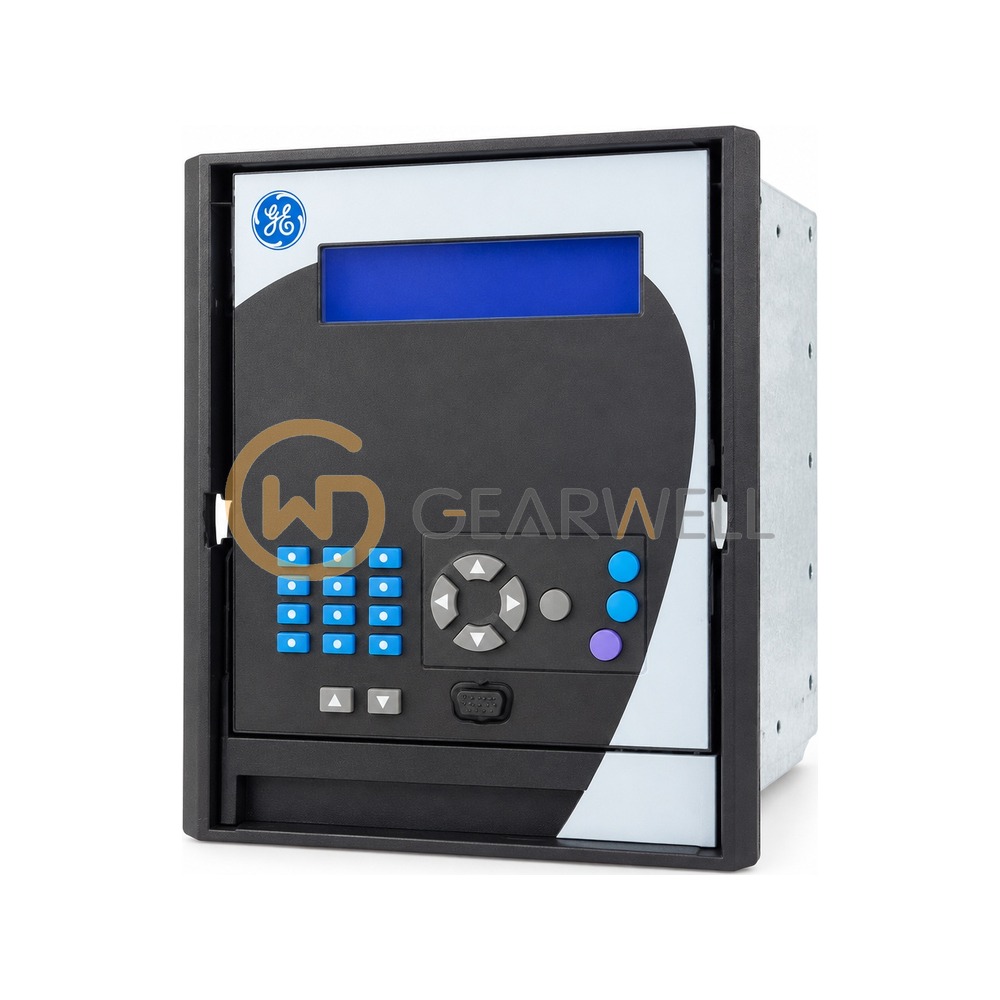

GE 469-P5-HI-A20-H Multilin 469 Motor Management Relay
- Brand
- GE
- Model
- 469-P5-HI-A20-H
- GEARWELL SKU
- GWP-000034418
- Category
- Circuit Protection
Key specifications
- Display
- Basic display (no display option letter)
- Evidence
- GE Multilin 469 instruction manual 1601-0122-A9 / GEK-106474H, Table 2-1 order codes (gegridsolutions.com)
- Base unit
- 469 Motor Management Relay
- Control power (HI)
- 90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz
- Code as collected
- SR469-P5-HI-A20-H (GE names the product SR469; the order code is written 469-...)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE 469-P5-HI-A20-H Multilin 469 Motor Management Relay |
|---|---|
| Brand | GE |
| Model | 469-P5-HI-A20-H |
| Category | Circuit Protection |
| Display | Basic display (no display option letter) |
| Evidence | GE Multilin 469 instruction manual 1601-0122-A9 / GEK-106474H, Table 2-1 order codes (gegridsolutions.com) |
| Base unit | 469 Motor Management Relay |
| Control power (HI) | 90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz |
| Code as collected | SR469-P5-HI-A20-H (GE names the product SR469; the order code is written 469-...) |
| Analog outputs (A20) | Four (4) 4 to 20 mA analog outputs |
| Harsh environment (H) | Harsh (chemical) environment conformal coating |
| Phase current inputs (P5) | 5 A phase CT secondaries |
