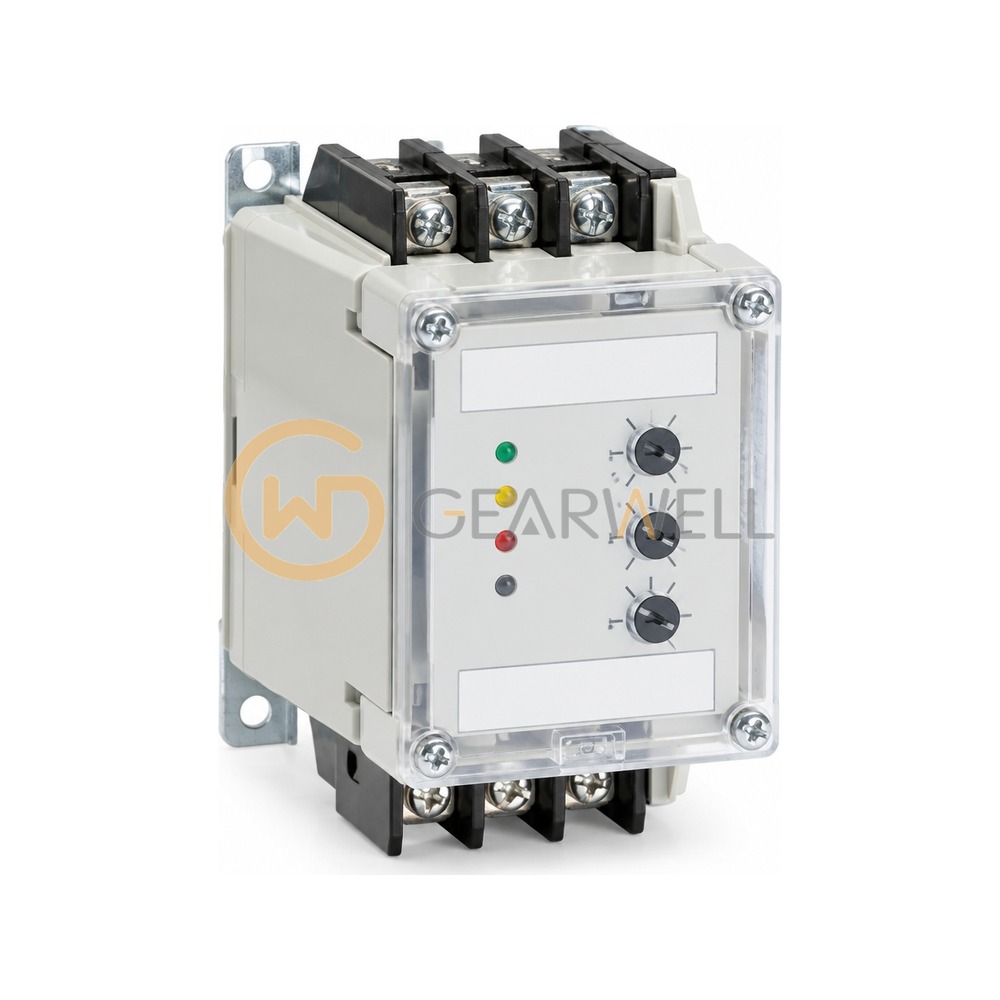

GE MVAJ13D1GB0780A MVAJ 13 Tripping Relay
- Brand
- GE
- Model
- MVAJ13D1GB0780A
- GEARWELL SKU
- GWP-000034411
- Category
- Circuit Protection
Key specifications
- Case
- Size 2 or size 4 case (per type)
- Reset
- Hand reset
- Status
- Manufacturing of the MVAJ 11 to 34 range discontinued
- Supply
- Low burden relays are suitable for AC or DC operation
- Brand note
- MiDOS-range relay originally made by GEC Alstom / ALSTOM / AREVA T&D; now GE Vernova Grid Solutions
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE MVAJ13D1GB0780A MVAJ 13 Tripping Relay |
|---|---|
| Brand | GE |
| Model | MVAJ13D1GB0780A |
| Category | Circuit Protection |
| Case | Size 2 or size 4 case (per type) |
| Reset | Hand reset |
| Status | Manufacturing of the MVAJ 11 to 34 range discontinued |
| Supply | Low burden relays are suitable for AC or DC operation |
| Brand note | MiDOS-range relay originally made by GEC Alstom / ALSTOM / AREVA T&D; now GE Vernova Grid Solutions |
| Relay type | MVAJ 13 |
| Burden class | Low burden, ESI 48-4 Class EB1 |
| Operating time | Not greater than 10 ms at rated voltage |
| Order information | Relay type, voltage rating, number and combination of contacts are specified when ordering |
| Code suffix "D1GB0780A" | as collected; not listed in an official model-number table (GE brochures give no order-code table; specs depend on the exact model) |
| Contact rating, break DC | 100 W resistive / 50 W inductive, max. 5 A and 660 V |
| Contact rating, make and carry for 3 s | 7500 W DC / 7500 VA AC, max. 30 A and 660 V |
