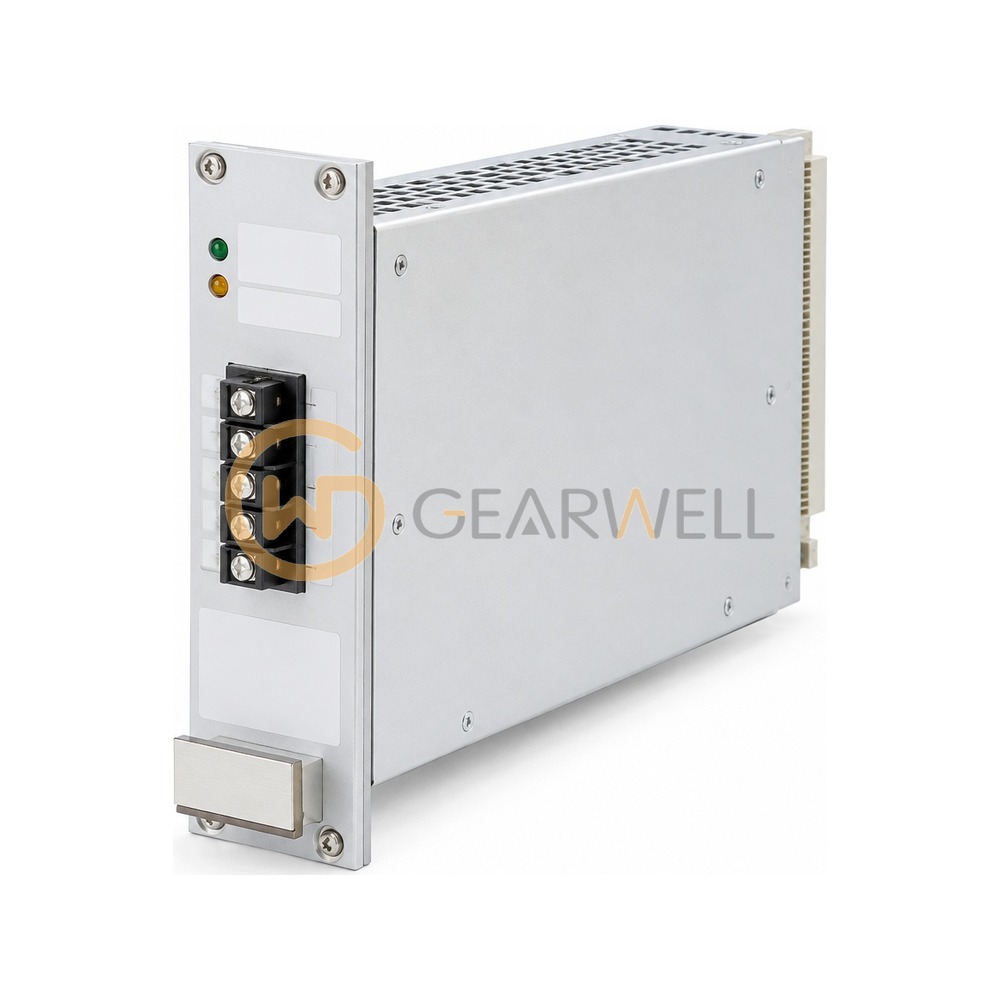

GE URSHA Multilin UR SH Power Supply Module, 125/300 V AC/DC
- Brand
- GE
- Model
- URSHA
- GEARWELL SKU
- GWP-000034424
- Category
- Power Supplies
Key specifications
- Evidence
- GE Vernova C30 instruction manual 1601-0088-AL2, Table 2-7 UR order codes for replacement modules (SH A) and section 2.5.5
- Order code
- UR-SHA (power supply option SH, replacement module)
- Supply range
- High range: 125 / 300 V AC/DC
- Internal fuse
- 4 A / 250 V
- Weight (approx.)
- 2 lb 2 oz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE URSHA Multilin UR SH Power Supply Module, 125/300 V AC/DC |
|---|---|
| Brand | GE |
| Model | URSHA |
| Category | Power Supplies |
| Evidence | GE Vernova C30 instruction manual 1601-0088-AL2, Table 2-7 UR order codes for replacement modules (SH A) and section 2.5.5 |
| Order code | UR-SHA (power supply option SH, replacement module) |
| Supply range | High range: 125 / 300 V AC/DC |
| Internal fuse | 4 A / 250 V |
| Weight (approx.) | 2 lb 2 oz |
| Power consumption | typical 15-20 W/VA, maximum 45 W/VA |
| Min / max DC voltage | 88 / 300 V |
| Nominal AC voltage | 100 to 240 V at 50/60 Hz |
| Nominal DC voltage | 125 to 250 V |
| Voltage loss hold-up | 200 ms at maximum load |
