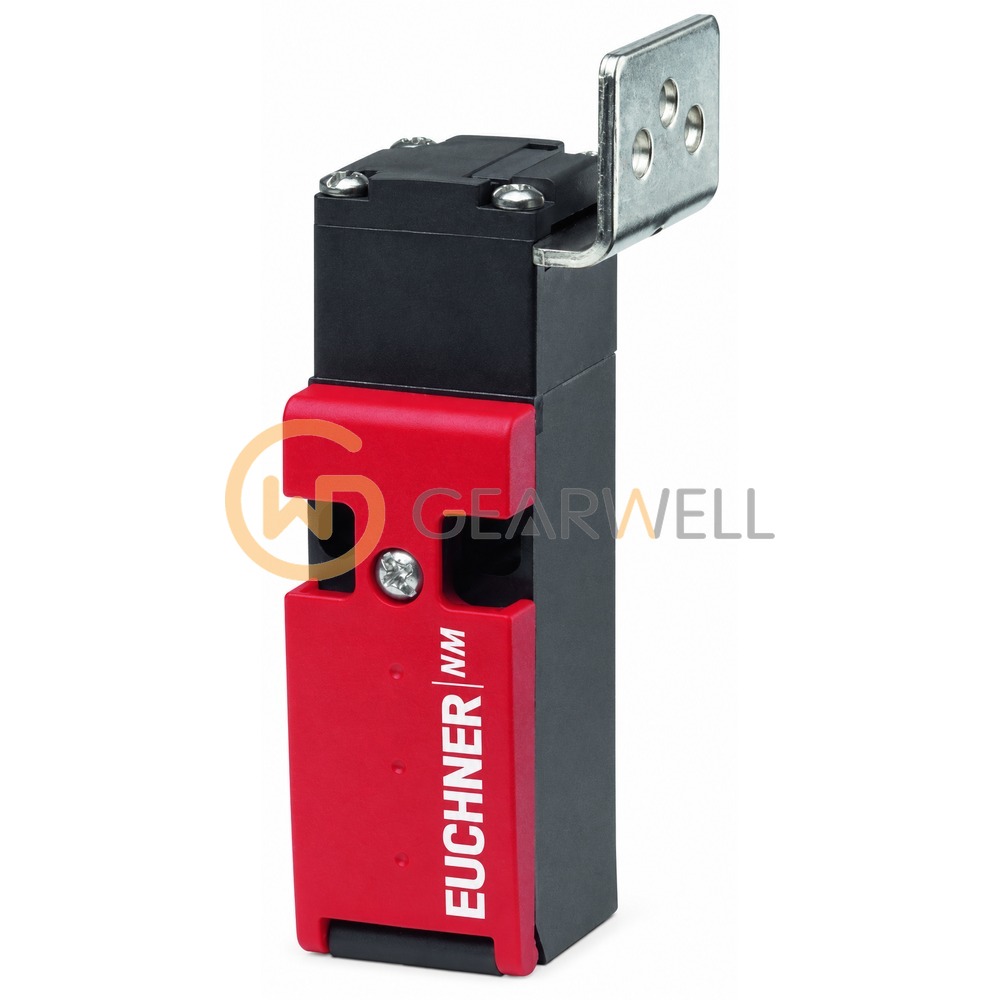

EUCHNER NM01VZA-M Mechanical Safety Switch
- Brand
- EUCHNER
- Model
- NM01VZA-M
- GEARWELL SKU
- GWP-000001970
- Category
- Machine Safety & Vision
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER NM01VZA-M is a small NM.VZ series safety switch with a short housing and separate actuator, order no. 084451. Slow-action switching element ES01 has 1 positively driven contact, rated AC-15 4 A 230 V and DC-13 4 A 24 V. The reinforced thermoplastic housing has one M16 x 1.5 cable entry and IP67 protection, works from -20 to 80 °C, and the approach direction can be changed in 90° steps. B10D is 4x10 6 with a mission time of 20 y, and the actuator is not included.
Technical reference
| Product name | EUCHNER NM01VZA-M Mechanical Safety Switch |
|---|---|
| Brand | EUCHNER |
| Model | NM01VZA-M |
| Category | Machine Safety & Vision |
