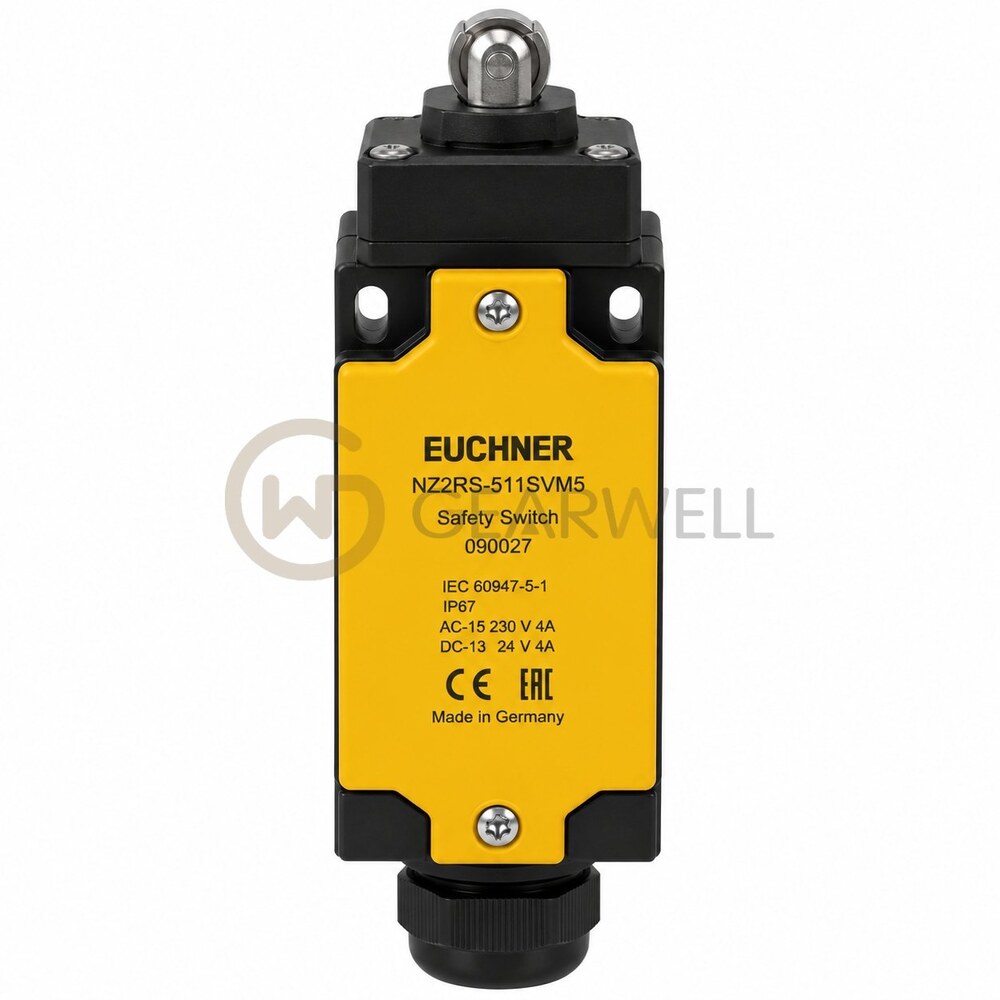

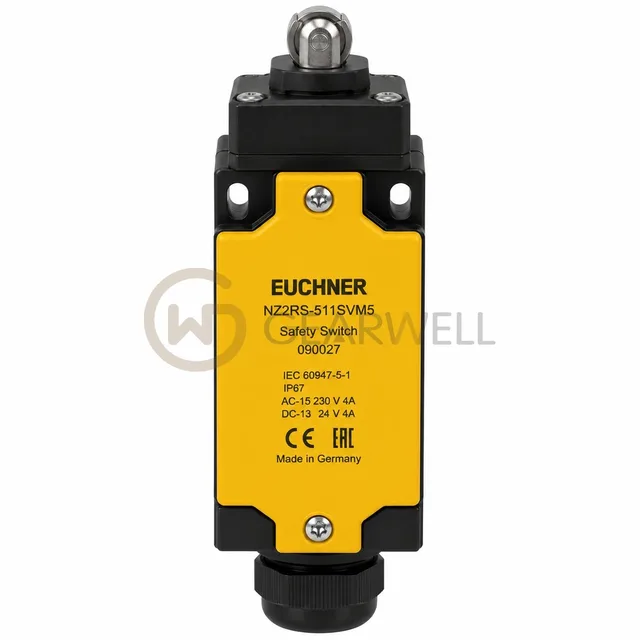

EUCHNER NZ2RS-511SVM5 Industrial Sensor
- Brand
- EUCHNER
- Model
- NZ2RS-511SVM5
- GEARWELL SKU
- GWP-000002920
- Category
- Industrial Automation Parts
Key specifications
- Contact
- Silver alloy, gold flashed
- Housing
- Anodized die-cast alloy
- Gross weight
- 0,347kg
- Actuating force
- 15 ... 30 N
- Ambient temperature
- -25 ... 80 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER NZ2RS-511SVM5 is an NZ series safety switch with a roller plunger and steel roller of 12 mm diameter (version C according to EN 50041), order no. 090027. Snap-action switching element 511 has 1 positively driven contact and 1 NO contact, rated DC-13 4 A 24 V and AC-15 4 A 30 V with a rated insulation voltage of 50 V. Connection is by a 5-pin M12 plug connector, and the anodized die-cast alloy housing is rated IP67 for -25 to 80 °C ambient. Mechanical life is 30 x 10⁶ operations and the approach direction can be adjusted in 90° steps.
Technical reference
| Product name | EUCHNER NZ2RS-511SVM5 Industrial Sensor |
|---|---|
| Brand | EUCHNER |
| Model | NZ2RS-511SVM5 |
| Category | Industrial Automation Parts |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
| Gross weight | 0,347kg |
| Actuating force | 15 ... 30 N |
| Ambient temperature | -25 ... 80 °C |
| Contact bounce time | max. 3 ms |
| Degree of protection | IP67 |
| Number of door position positively driven contacts | 1 |
