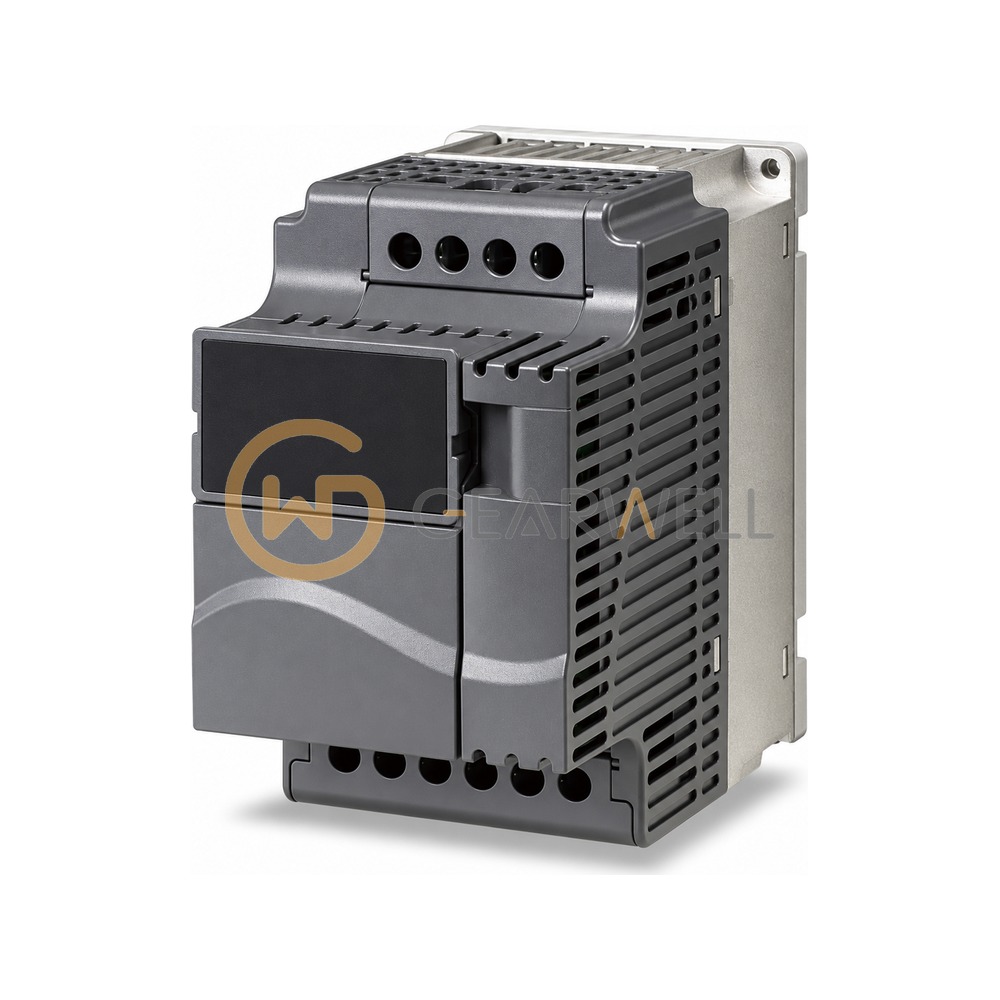

DELTA VFD110E43A VFD-E series AC Motor Drive
- Brand
- DELTA
- Model
- VFD110E43A
- GEARWELL SKU
- GWP-000012576
- Category
- Motors & Gearboxes
Key specifications
- Size
- C
- Rated power
- 11 kW
- Dimensions HxWxD
- 260x130x169.2 mm
- Mains voltage range
- 400V: 342 ~ 528 V
- Rated input current
- 25 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD110E43A is a VFD-E series sensorless vector compact AC motor drive in the standard version for a 3-phase 380-480 V, 50/60 Hz supply. It suits an 11 kW (15 HP) motor, with a rated output current of 24 A, a rated output capacity of 18.3 kVA and a rated input current of 26 A. Overload capacity is 150% of rated current for 1 minute and the output frequency range is 0.1 to 599 Hz. The drive has a built-in EMC filter, a built-in brake chopper for an optional brake resistor, a built-in PLC and an RS-485 (Modbus) port. It is a frame C unit in an IP20 enclosure weighing 4.2 kg.
Technical reference
| Product name | DELTA VFD110E43A VFD-E series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD110E43A |
| Category | Motors & Gearboxes |
| Size | C |
| Rated power | 11 kW |
| Dimensions HxWxD | 260x130x169.2 mm |
| Mains voltage range | 400V: 342 ~ 528 V |
| Rated input current | 25 A |
| Rated output current | 24 A |
| Rated output capacity | 18.3 kVA |
| Recommended brake resistor | 53/2000 Ω/W |
