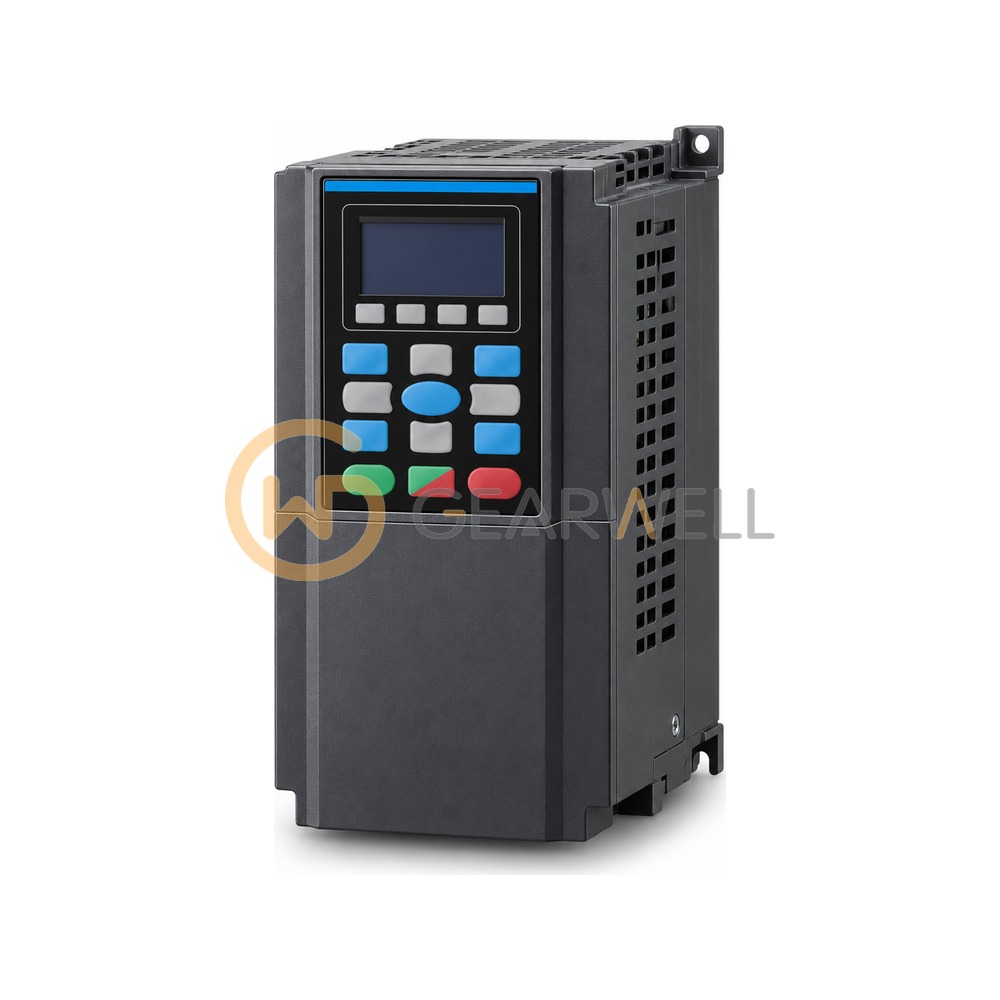

DELTA VFD075CP43B-21 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD075CP43B-21
- GEARWELL SKU
- GWP-000012563
- Category
- Motors & Gearboxes
Key specifications
- Weight
- 2.6 ± 0.3 kg; cooling: fan cooling
- Frame size
- A; Dimensions (W x H x D): 130 x 250 x 170 mm
- Light duty
- rated output capacity 14.3 kVA, rated output current 18* A (*version B models), applicable motor output 7.5 kW / 10 HP
- Normal duty
- rated output capacity 10.4 kVA, rated output current 12 A, applicable motor output 5.5 kW / 7.5 HP
- Input current
- 22 A (light duty), 17 A (normal duty)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD075CP43B-21 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 18 A output current in light duty for motors up to 7.5 kW (10 HP), built in frame A. In normal duty it delivers 12 A for 5.5 kW (7.5 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A braking chopper is built in and the DC choke is optional, with no built-in EMC filter. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with top cover and standard conduit plate. Version letter B denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD075CP43B-21 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD075CP43B-21 |
| Category | Motors & Gearboxes |
| Weight | 2.6 ± 0.3 kg; cooling: fan cooling |
| Frame size | A; Dimensions (W x H x D): 130 x 250 x 170 mm |
| Light duty | rated output capacity 14.3 kVA, rated output current 18* A (*version B models), applicable motor output 7.5 kW / 10 HP |
| Normal duty | rated output capacity 10.4 kVA, rated output current 12 A, applicable motor output 5.5 kW / 7.5 HP |
| Input current | 22 A (light duty), 17 A (normal duty) |
| Braking chopper | Frame A, B, C built-in; DC choke optional; EMC filter: not built-in for VFD____CP43A/B (frame A) |
| Max. output frequency | 599.00 Hz; carrier frequency 2 ~ 15 kHz (default 8) |
| Rated voltage / frequency | 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz; operating voltage range 323 ~ 528 VAC |
