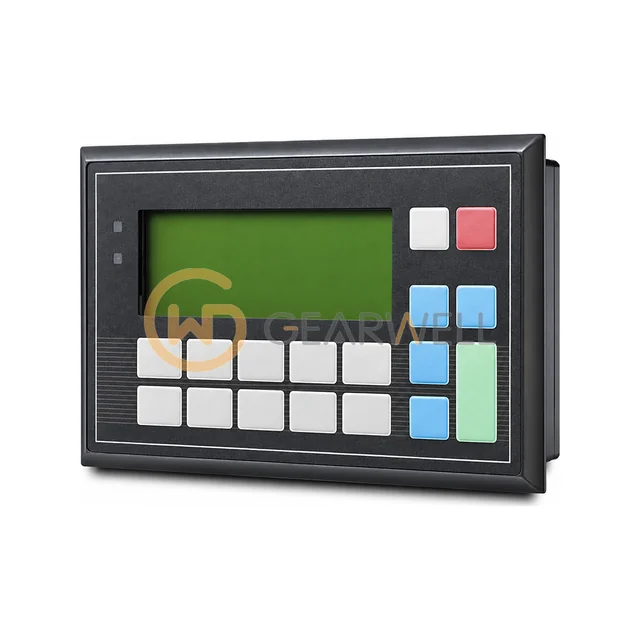

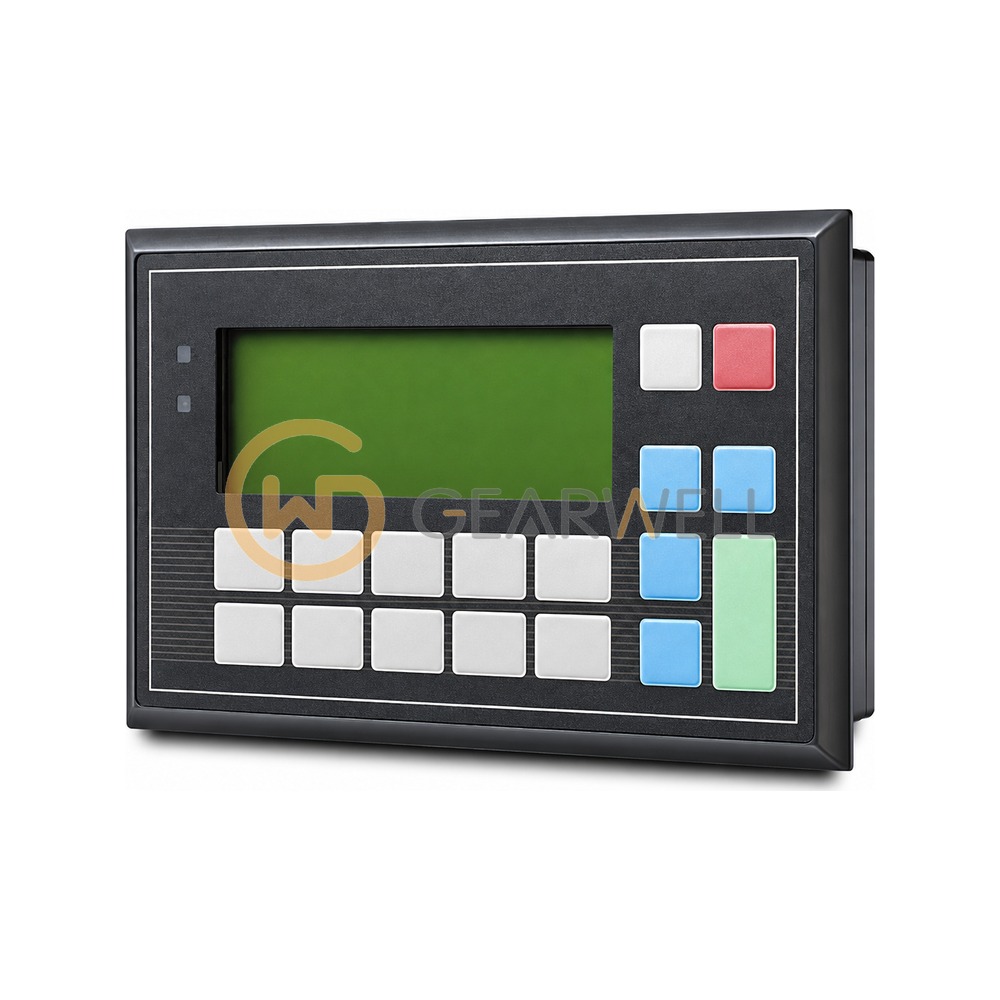

DELTA TP04P-32TP1T TP04P Text Panel HMI with Built-in PLC
- Brand
- DELTA
- Model
- TP04P-32TP1T
- GEARWELL SKU
- GWP-000012171
- Category
- HMIs & Industrial PCs
Key specifications
- RTC
- Built-in real time clock (RTC)
- Keys
- Provides 0 ~ 9 numeric keys with user-defined function
- Display
- 4.1" STN-LCD
- Protocol
- Supports Modbus ASCII/RTU modes
- Serial ports
- Built-in RS-485 port*2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta TP04P-32TP1T is a TP04P 4-line text panel HMI with a built-in PLC based on the DVP-SS2 core, with 8 k steps of program capacity and 5k words of D devices. The 4.1" monochrome STN-LCD shows 192 x 64 pixels, and the front has 17 function keys including 0 ~ 9 numeric keys; flash memory is 1 M bytes. This model has 16 digital inputs and 16 transistor outputs, plus 2 sets of 10 kHz high-speed pulse input. It offers USB for program upload and download, two RS-485 ports with Modbus ASCII/RTU, and a built-in real time clock; it is programmed with TPEditor.
Technical reference
| Product name | DELTA TP04P-32TP1T TP04P Text Panel HMI with Built-in PLC |
|---|---|
| Brand | DELTA |
| Model | TP04P-32TP1T |
| Category | HMIs & Industrial PCs |
| RTC | Built-in real time clock (RTC) |
| Keys | Provides 0 ~ 9 numeric keys with user-defined function |
| Display | 4.1" STN-LCD |
| Protocol | Supports Modbus ASCII/RTU modes |
| Serial ports | Built-in RS-485 port*2 |
| High-speed pulse input | Provides 2 sets of 10 kHz high-speed pulse input |
| Program upload/download | Built-in USB port for program upload/download |
| PLC core / program capacity | Adopts the core of the DVP-SS2 Series PLC: program capacity: 8 k steps / D device: 5k words |
