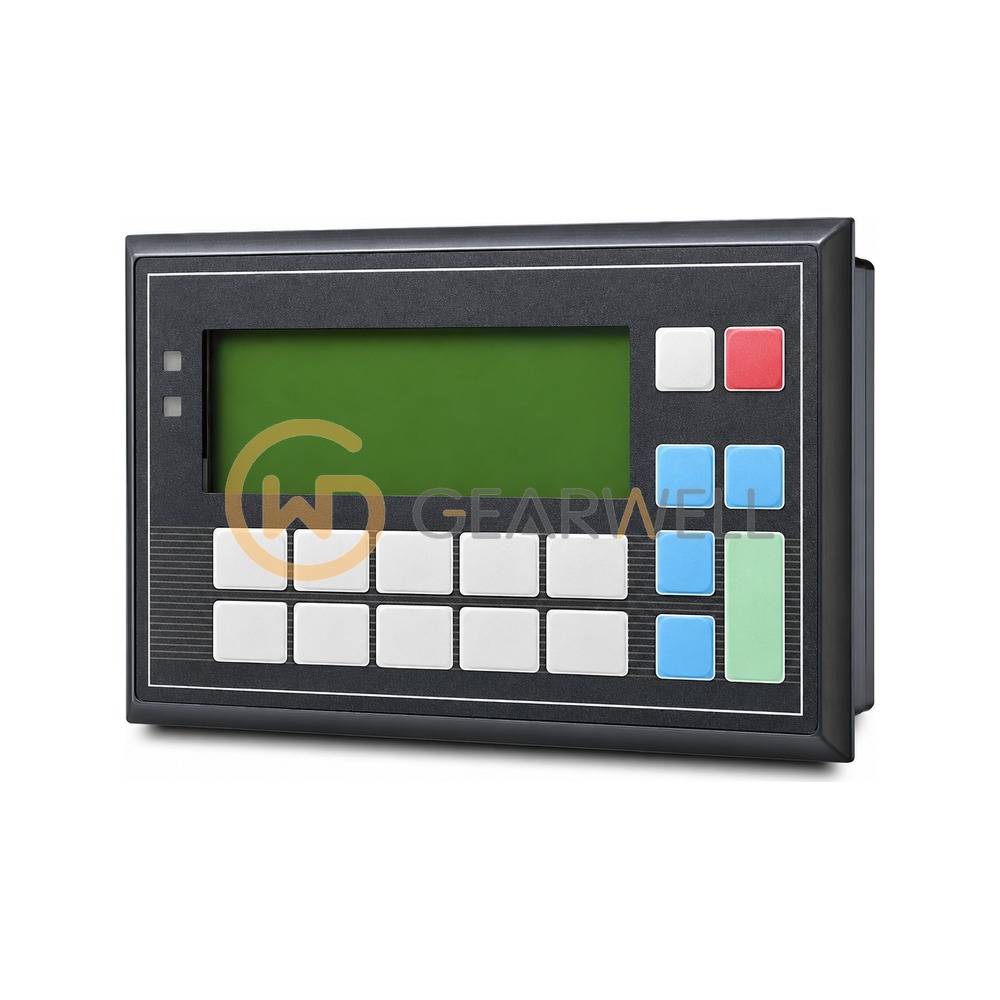

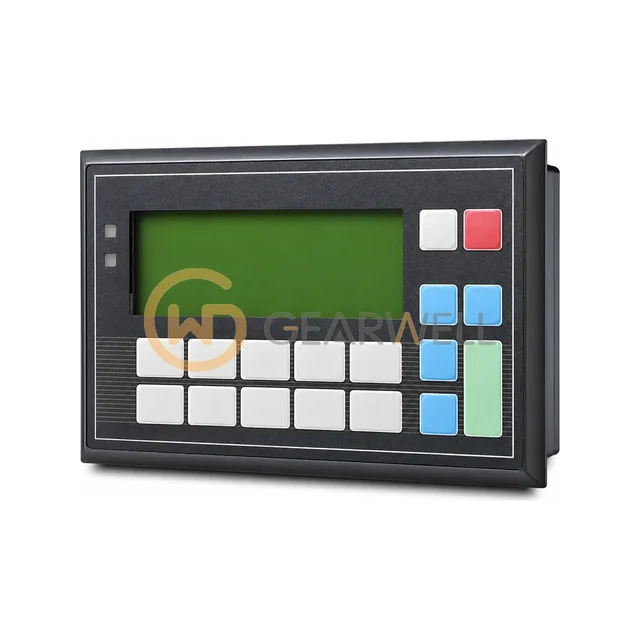

DELTA TP04P-21EX1T TP04P Text Panel HMI with Built-in PLC
- Brand
- DELTA
- Model
- TP04P-21EX1T
- GEARWELL SKU
- GWP-000012949
- Category
- HMIs & Industrial PCs
Key specifications
- I/O
- Digital and analog I/O terminals available (model dependent)
- RTC
- Built-in real time clock
- Keys
- 0 ~ 9 numeric keys with user-defined function
- Display
- 4.1" STN-LCD
- Serial ports
- Built-in RS-485 x 2, Modbus ASCII/RTU
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta TP04P-21EX1T is a TP04P 4-line text panel HMI with a built-in PLC based on the DVP-SS2 core, with 8 k steps of program capacity and 5k words of D devices. The 4.1" monochrome STN-LCD shows 192 x 64 pixels, and the front has 17 function keys including 0 ~ 9 numeric keys; flash memory is 1 M bytes. This model has 8 digital inputs, 8 transistor outputs, 2 analog current inputs, 1 analog current output and 2 PT temperature inputs. It offers USB for program upload and download, two RS-485 ports with Modbus ASCII/RTU, and a built-in real time clock; it is programmed with TPEditor.
Technical reference
| Product name | DELTA TP04P-21EX1T TP04P Text Panel HMI with Built-in PLC |
|---|---|
| Brand | DELTA |
| Model | TP04P-21EX1T |
| Category | HMIs & Industrial PCs |
| I/O | Digital and analog I/O terminals available (model dependent) |
| RTC | Built-in real time clock |
| Keys | 0 ~ 9 numeric keys with user-defined function |
| Display | 4.1" STN-LCD |
| Serial ports | Built-in RS-485 x 2, Modbus ASCII/RTU |
| High-speed pulse input | 2 sets, 10 kHz |
| Program upload/download | Built-in USB port |
| PLC core / program capacity | DVP-SS2 core: 8k steps / D device 5k words |
