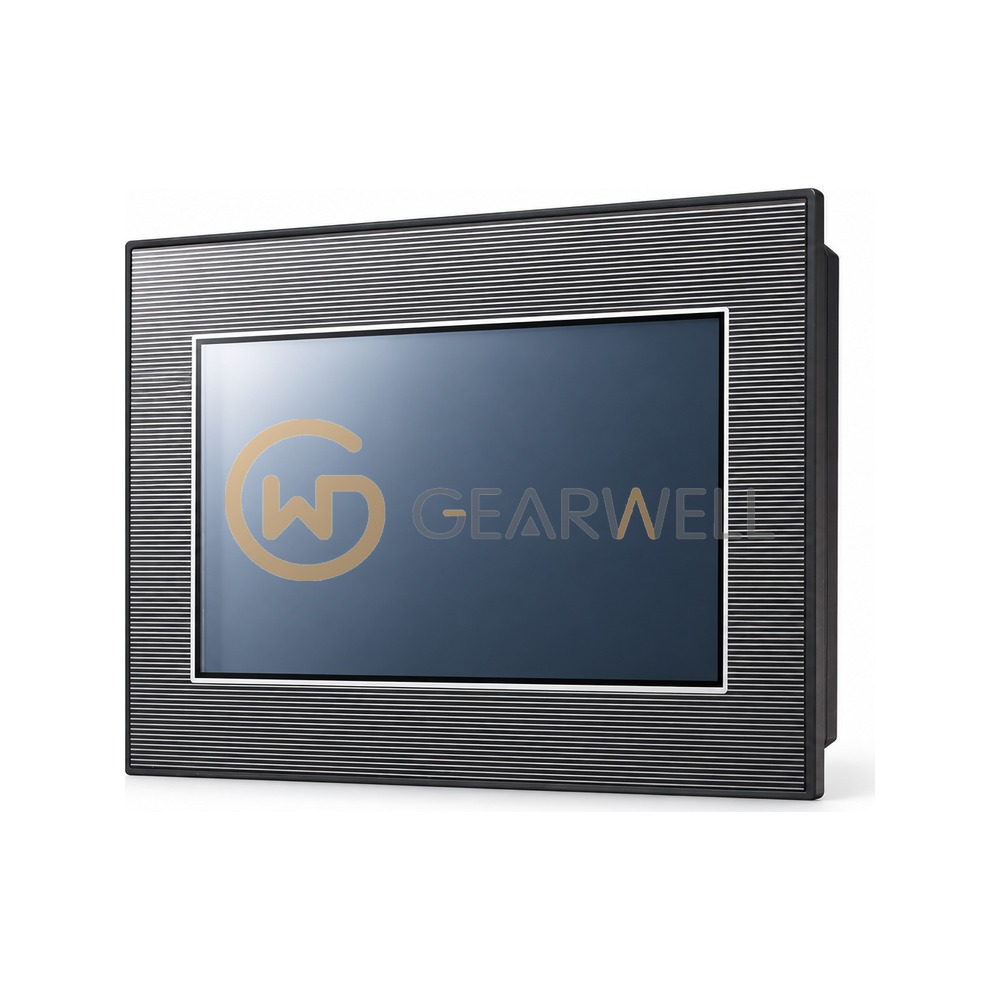

DELTA TP70P-16TP1R TP70P Touch Panel HMI with Built-in PLC
- Brand
- DELTA
- Model
- TP70P-16TP1R
- GEARWELL SKU
- GWP-000012172
- Category
- HMIs & Industrial PCs
Key specifications
- CPU
- 32-bit ARM Cortex-M4 MCU
- Resolution
- 800×480 pixels
- Output type
- Relay
- Display area
- Width × Height = 154 × 85 (Unit: mm); 7 inches (diagonal)
- Screen/Color
- 7” TFT LCD (65535 colors)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta TP70P-16TP1R is a TP70P 7" TFT-LCD touch panel HMI with a built-in PLC based on the DVP-SS2 core, with 4 k steps of program capacity and 5k words of D devices. The screen shows 65,535 colors and the unit has 64 M bytes of flash memory. This model has 8 digital inputs and 8 relay outputs, plus 2 sets of 10 kHz high-speed pulse input. It offers USB for program upload and download, two RS-485 ports with Modbus ASCII/RTU, and a built-in real time clock; it is programmed with TPEditor.
Technical reference
| Product name | DELTA TP70P-16TP1R TP70P Touch Panel HMI with Built-in PLC |
|---|---|
| Brand | DELTA |
| Model | TP70P-16TP1R |
| Category | HMIs & Industrial PCs |
| CPU | 32-bit ARM Cortex-M4 MCU |
| Resolution | 800×480 pixels |
| Output type | Relay |
| Display area | Width × Height = 154 × 85 (Unit: mm); 7 inches (diagonal) |
| Screen/Color | 7” TFT LCD (65535 colors) |
| Program memory | Flash ROM: 128 MB (OS: 30 MB/Backup: 16 MB/User AP: 82 MB) |
| Digital input terminal | X0~X7 (8 terminals) |
| Digital output terminal | Y0~Y7 (8 terminals) |
