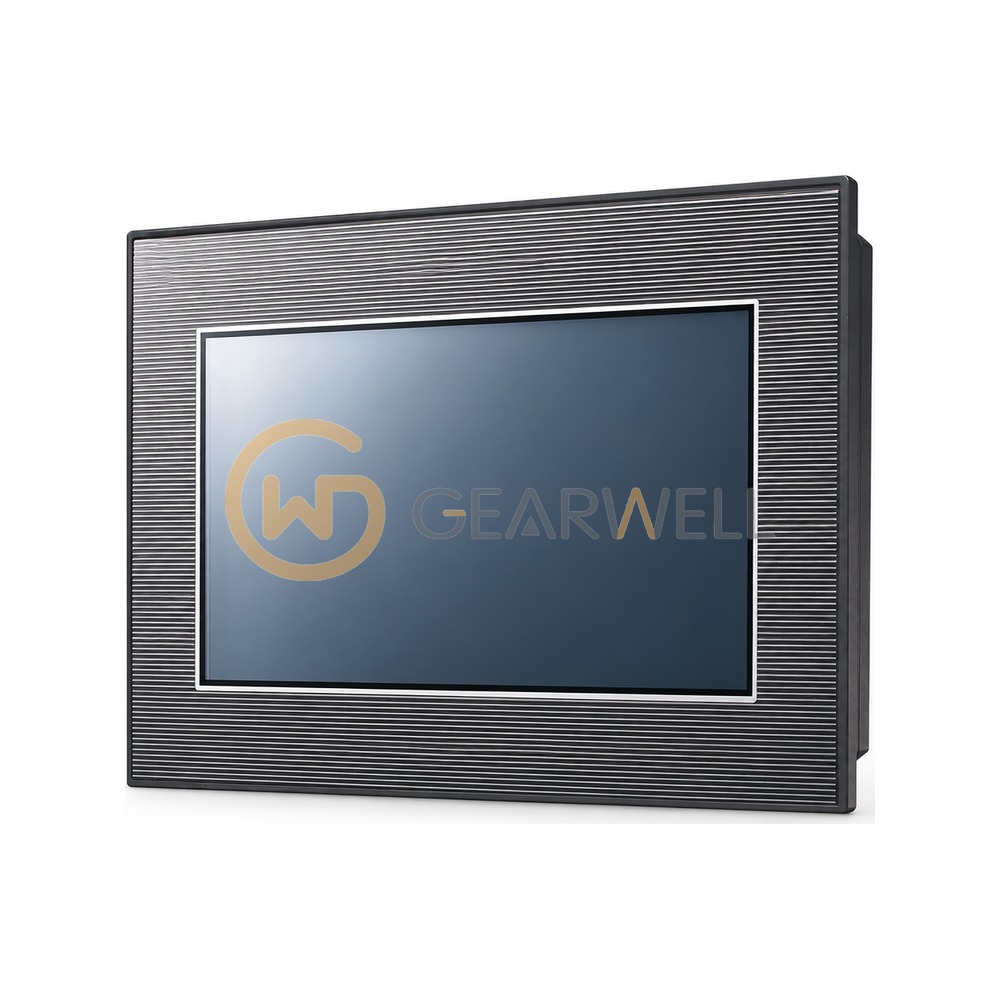

DELTA TP70P-21EX1T TP70P Touch Panel HMI with Built-in PLC
- Brand
- DELTA
- Model
- TP70P-21EX1T
- GEARWELL SKU
- GWP-000012173
- Category
- HMIs & Industrial PCs
Key specifications
- USB
- Built-in USB port to connect with computers. Supports program upload/download and connection monitor with WPLsoft/ISPsoft/TPEditor software
- Display
- Touchscreen LCD with 65535 colors
- PLC Link
- Supports PLC Link
- Connectivity
- Supports Delta's controllers, and can be connected to all series of Delta's AC servo drives, AC motor drives, and temperature controllers
- Serial ports
- Offers two serial communication ports : One supports PLC communication, and the other supports Text Panel communication
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta TP70P-21EX1T is a TP70P 7" TFT-LCD touch panel HMI with a built-in PLC based on the DVP-SS2 core, with 4 k steps of program capacity and 5k words of D devices. The screen shows 65,535 colors and the unit has 64 M bytes of flash memory. This model has 8 digital inputs, 8 transistor outputs, 2 analog current inputs, 1 analog current output and 2 PT temperature inputs. It offers USB for program upload and download, two RS-485 ports with Modbus ASCII/RTU, and a built-in real time clock; it is programmed with TPEditor.
Technical reference
| Product name | DELTA TP70P-21EX1T TP70P Touch Panel HMI with Built-in PLC |
|---|---|
| Brand | DELTA |
| Model | TP70P-21EX1T |
| Category | HMIs & Industrial PCs |
| USB | Built-in USB port to connect with computers. Supports program upload/download and connection monitor with WPLsoft/ISPsoft/TPEditor software |
| Display | Touchscreen LCD with 65535 colors |
| PLC Link | Supports PLC Link |
| Connectivity | Supports Delta's controllers, and can be connected to all series of Delta's AC servo drives, AC motor drives, and temperature controllers |
| Serial ports | Offers two serial communication ports : One supports PLC communication, and the other supports Text Panel communication |
| Graphical objects | Provides various kinds of graphical objects, including X-Y curves, circular meters, bar charts, sliders, and historical/real-time alarms |
