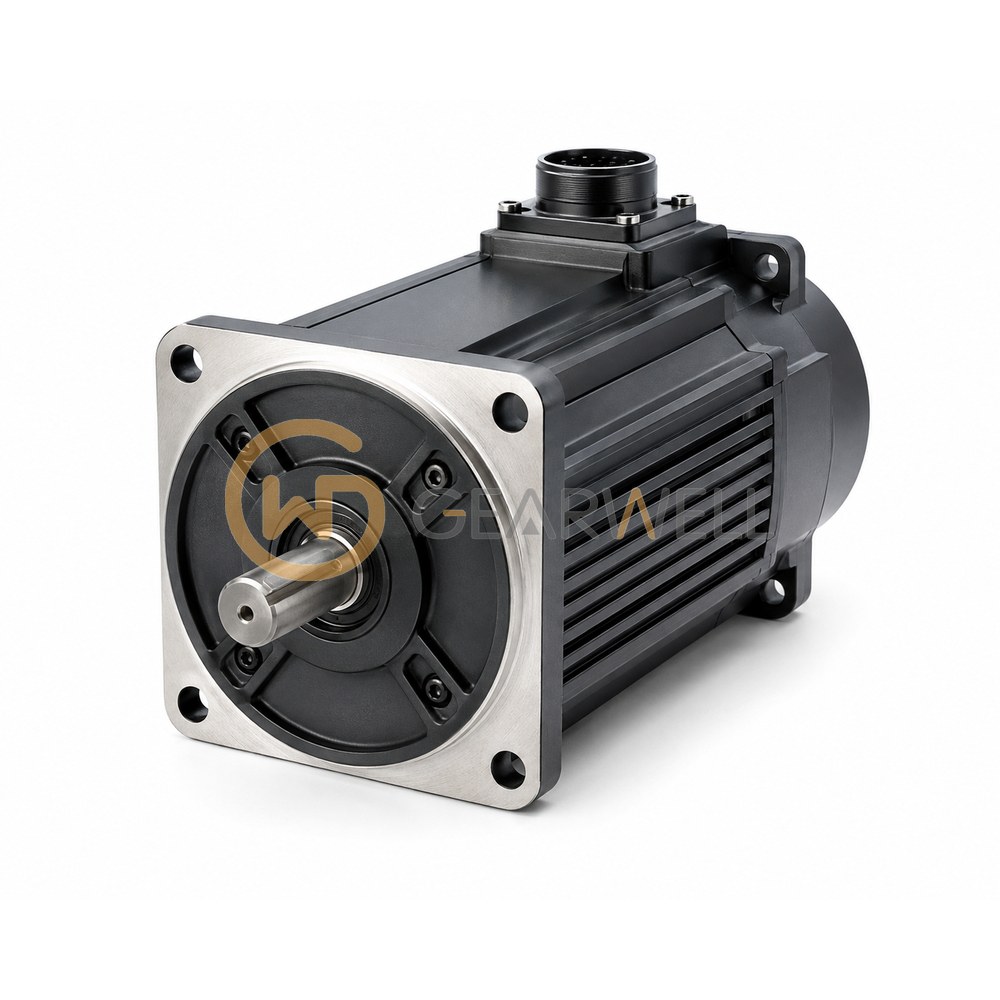

DELTA ECMA-E21310RS Servo Motors
- Brand
- DELTA
- Model
- ECMA-E21310RS
- GEARWELL SKU
- GWP-000003925
- Category
- Motors & Gearboxes
Key specifications
- Brake
- Without brake
- Rated speed
- 2,000 RPM
- Product type
- AC servo motor
- Rated output
- 1.0 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ECMA-E21310RS is a Delta ECMA series medium-inertia AC servo motor for 220 V servo drives, with a 130 mm frame and a rated output of 1.0 kW. It gives 4.77 N-m rated and 14.3 N-m maximum torque at a rated speed of 2000 r/min (3000 r/min maximum), with 5.6 A rated and 16.8 A maximum current. The motor has a 17-bit incremental encoder, and the R shaft code means a keyway with fixed screw holes, an oil seal and no holding brake. Rotor inertia is 8.41 (x10-4 kg-m2) and the weight is 7.0 kg; IP65 applies when waterproof connectors are used.
Technical reference
| Product name | DELTA ECMA-E21310RS Servo Motors |
|---|---|
| Brand | DELTA |
| Model | ECMA-E21310RS |
| Category | Motors & Gearboxes |
| Brake | Without brake |
| Rated speed | 2,000 RPM |
| Product type | AC servo motor |
| Rated output | 1.0 kW |
