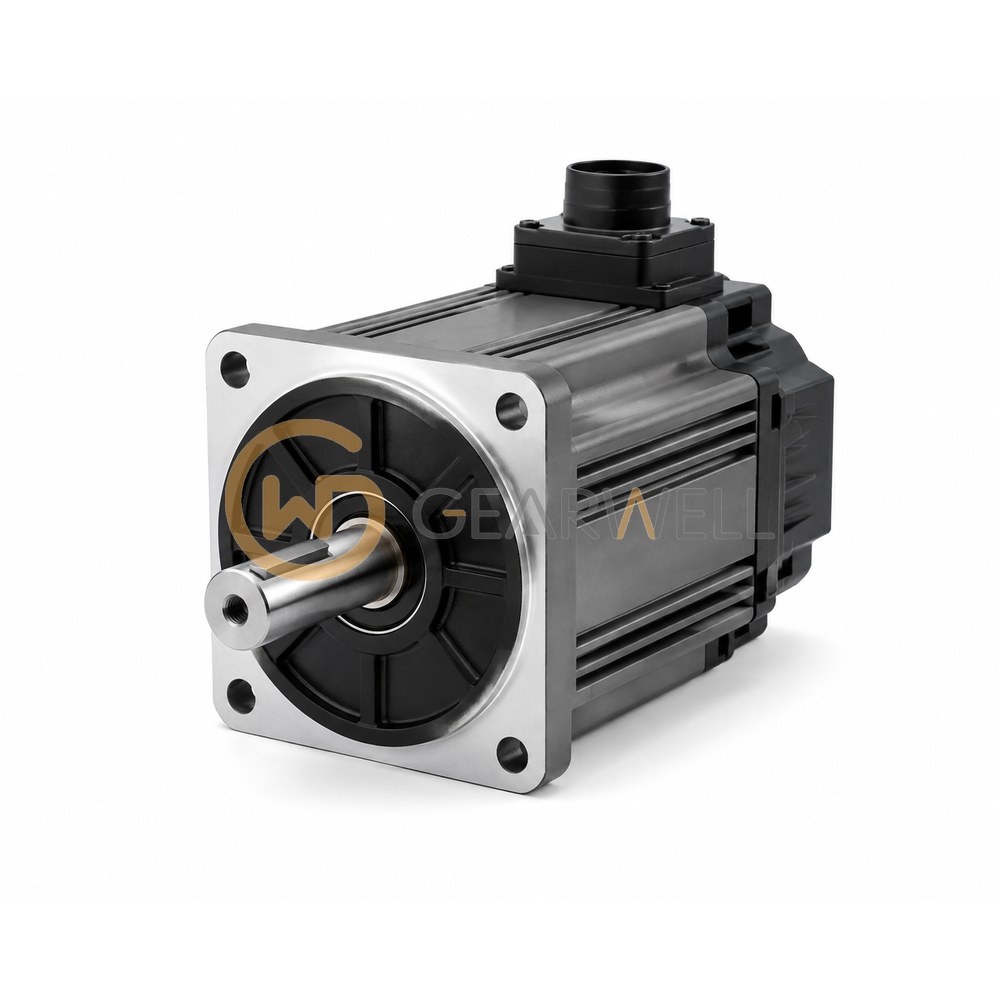

DELTA ECMA-E11320RS Servo Motor
- Brand
- DELTA
- Model
- ECMA-E11320RS
- GEARWELL SKU
- GWP-000001697
- Category
- Motors & Gearboxes
Key specifications
- Rated speed
- 2000 r/min
- Product type
- AC servo motor
- Rated output
- 2.0 kW
- Rated torque
- 9.55 N·m
- Rated current
- 11.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ECMA-E11320RS is a Delta ECMA series medium-inertia AC servo motor for 220 V servo drives, with a 130 mm frame and a rated output of 2.0 kW. It gives 9.55 N-m rated and 28.65 N-m maximum torque at a rated speed of 2000 r/min (3000 r/min maximum), with 11.01 A rated and 33.03 A maximum current. The motor has a 20-bit incremental encoder, and the R shaft code means a keyway with fixed screw holes, an oil seal and no holding brake. Rotor inertia is 14.59 (x10-4 kg-m2) and the weight is 7.8 kg; IP65 applies when waterproof connectors are used.
Technical reference
| Product name | DELTA ECMA-E11320RS Servo Motor |
|---|---|
| Brand | DELTA |
| Model | ECMA-E11320RS |
| Category | Motors & Gearboxes |
| Rated speed | 2000 r/min |
| Product type | AC servo motor |
| Rated output | 2.0 kW |
| Rated torque | 9.55 N·m |
| Rated current | 11.0 A |
| Rated voltage | 110 V AC |
