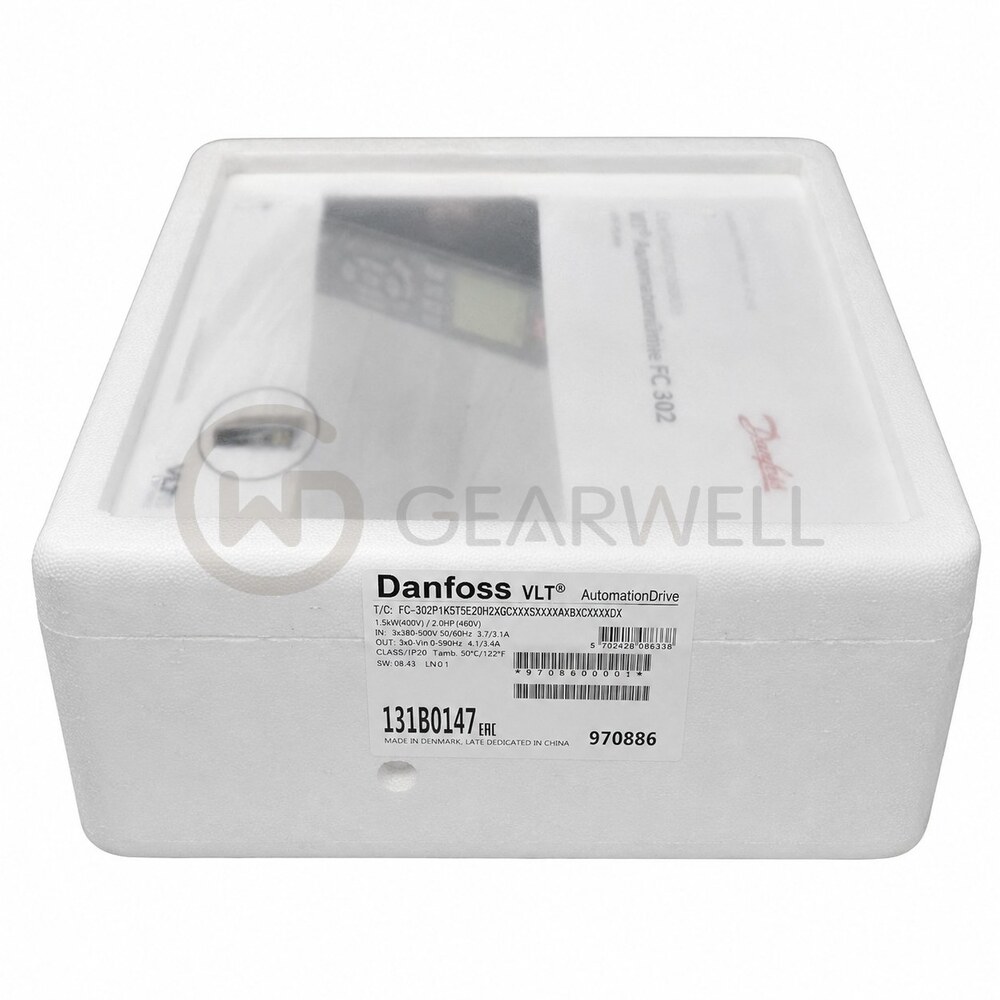

Danfoss FC-302P1K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX Variable Frequency Drive

Product overview

The Danfoss FC-302P1K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P1K5, rated 1.5 kW / 2 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 4.1 A continuous and 6.6 A intermittent (60 s) output current on 380-440 V, or 3.4 A and 5.4 A on 441-500 V, with a continuous input current of 3.7 A at 400 V and an estimated power loss of 62 W. The code E20 selects the IP20/Chassis version, which is enclosure size A2; H2 means an RFI filter of class A2 (C3), and X in position 18 means no brake IGBT. The remaining characters give a VLT® Control Panel LCP 102 graphical keypad (G), a coated PCB to class 3C3 (C), no mains option, standard cable entries and the latest released standard software (SXXX), no fieldbus A-option (AX), with no B-option (BX) or C-options (CX) and no D-option (DX).
