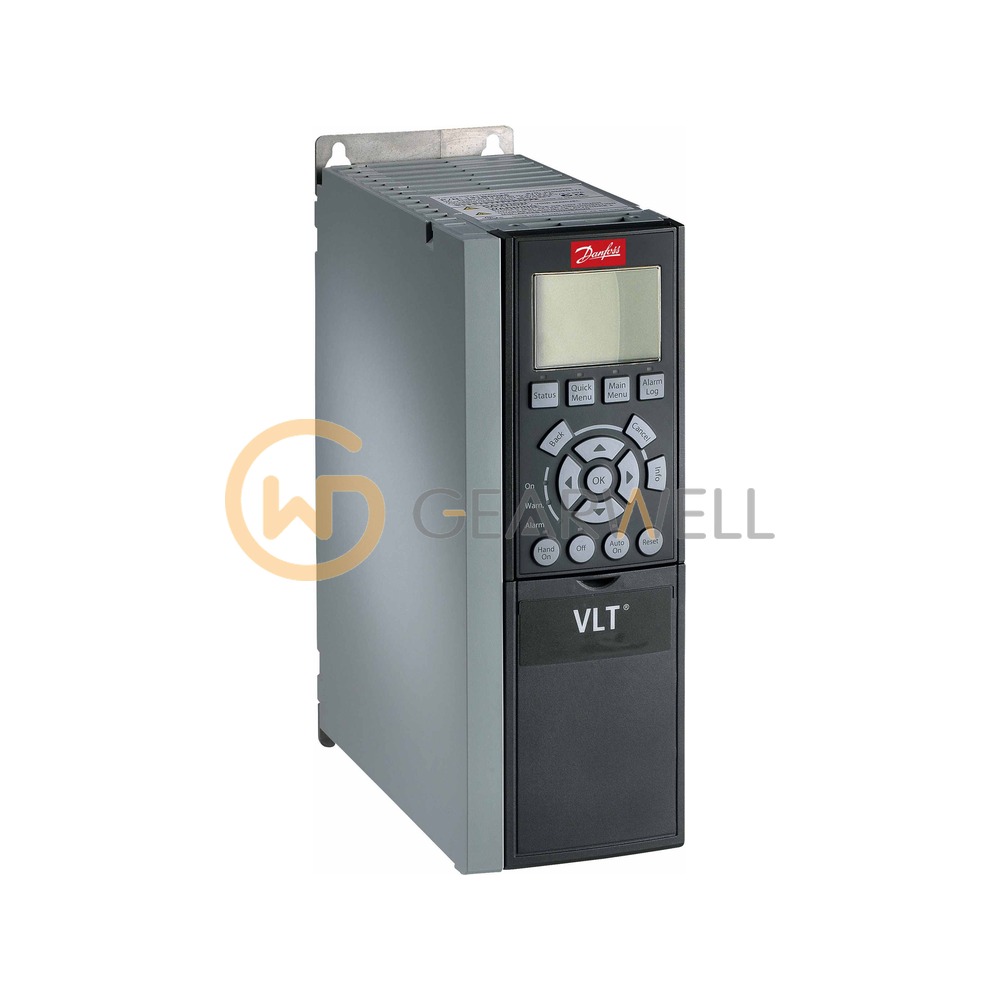

Danfoss FC-302P2K2T5 AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- FC-302P2K2T5
- GEARWELL SKU
- GWP-000011636
- Category
- Variable Frequency Drives
Key specifications
- Enclosure options
- E20 (IP20) / E55 (IP55) / E66 ... (specify on order)
- Collected type code
- FC-302P2K2T5
- Mains supply (code T5)
- 3-phase 380-500 V AC
- Rated power (code P2K2)
- 2.2 kW / 3.0 HP
- Remaining positions options
- RFI H1 / H2 / H3 / H4, brake X / B, LCP X / N / G, coating X / C, A option AX / A0 / AL / AN ... (specify on order)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-302P2K2T5 is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P2K2, rated 2.2 kW / 3 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 5.6 A continuous and 9 A intermittent (60 s) output current on 380-440 V, or 4.8 A and 7.7 A on 441-500 V, with a continuous input current of 5 A at 400 V and an estimated power loss of 88 W. The enclosure, RFI filter, brake, LCP, coating and option characters are not specified in this catalog number, so the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-302P2K2T5 AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-302P2K2T5 |
| Category | Variable Frequency Drives |
| Enclosure options | E20 (IP20) / E55 (IP55) / E66 ... (specify on order) |
| Collected type code | FC-302P2K2T5 |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P2K2) | 2.2 kW / 3.0 HP |
| Remaining positions options | RFI H1 / H2 / H3 / H4, brake X / B, LCP X / N / G, coating X / C, A option AX / A0 / AL / AN ... (specify on order) |
