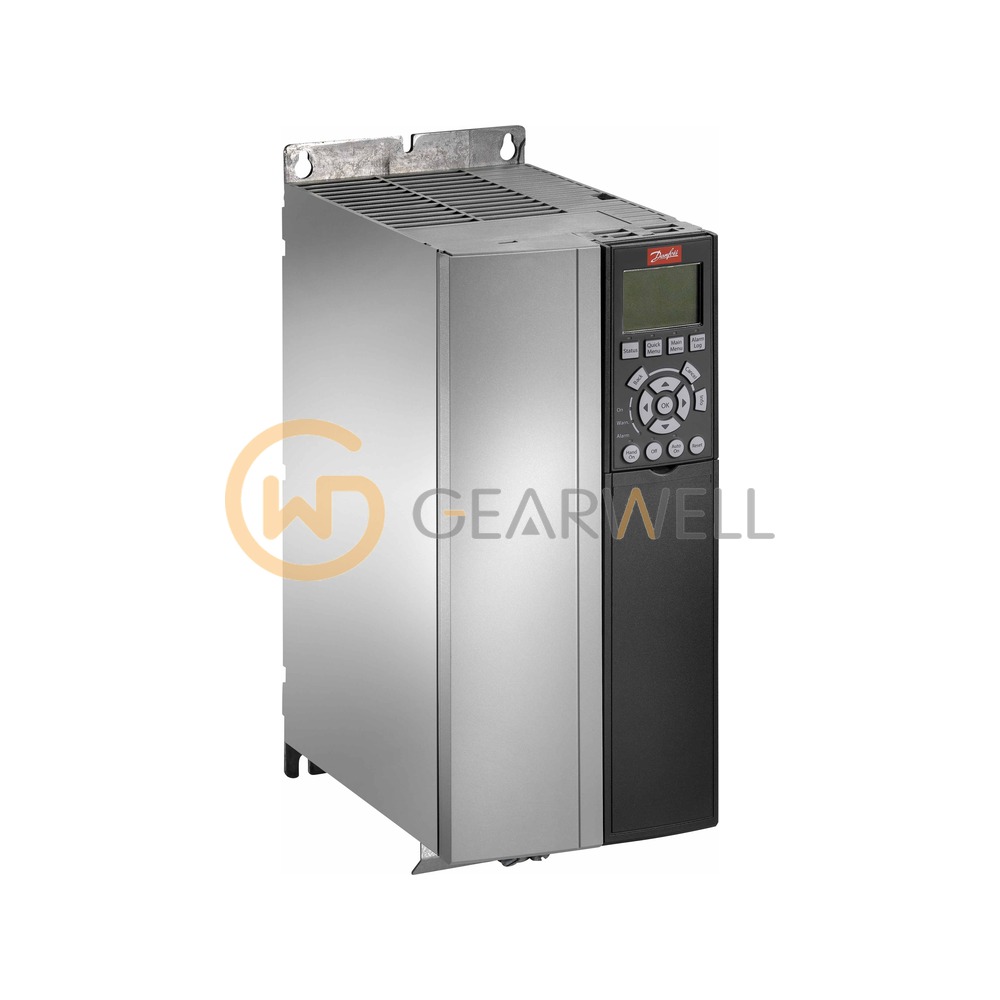

Danfoss FC-302P37KT5E20H2X AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- FC-302P37KT5E20H2X
- GEARWELL SKU
- GWP-000011637
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- C3
- Enclosure (code E20)
- IP20 / Chassis
- RFI filter (code H2)
- RFI Filter
- Collected type code
- FC-302P37KT5E20H2X
- Brake chopper (code X)
- No
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-302P37KT5E20H2X is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P37K, rated 37 kW / 50 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 73 A continuous and 110 A intermittent (60 s) output current on 380-440 V, or 65 A and 97.5 A on 441-500 V, with a continuous input current of 66 A at 400 V and an estimated power loss of 697 W. In normal overload (110%) the same drive is rated 45 kW / 60 hp at 90 A (380-440 V) or 80 A (441-500 V) continuous. The code E20 selects the IP20/Chassis version, which is enclosure size C3; H2 means an RFI filter of class A2 (C3), and X in position 18 means no brake IGBT. The LCP, coating and option characters are not specified in this catalog number, so the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-302P37KT5E20H2X AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-302P37KT5E20H2X |
| Category | Variable Frequency Drives |
| Frame size | C3 |
| Enclosure (code E20) | IP20 / Chassis |
| RFI filter (code H2) | RFI Filter |
| Collected type code | FC-302P37KT5E20H2X |
| Brake chopper (code X) | No |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P37K) | 37 kW / 50 HP |
| Remaining positions options | LCP X / N / G, coating X / C, A option AX / A0 / A8 / AN ..., B option BX / B4 / B5 / BK ... (specify on order) |
