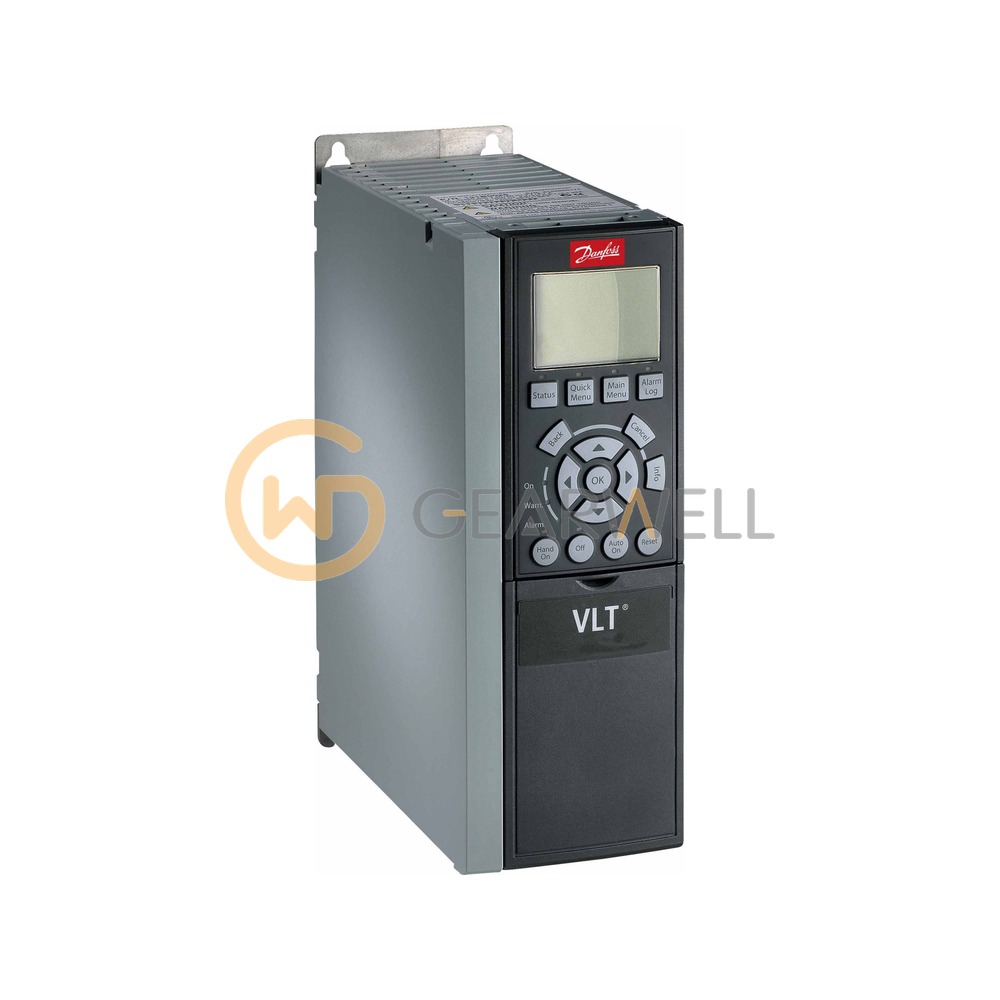

Danfoss FC-302P2K2T5E20H2XGXXXXSXXXXAXBXCXXXXDX AC Drive

Product overview

The Danfoss FC-302P2K2T5E20H2XGXXXXSXXXXAXBXCXXXXDX is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P2K2, rated 2.2 kW / 3 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 5.6 A continuous and 9 A intermittent (60 s) output current on 380-440 V, or 4.8 A and 7.7 A on 441-500 V, with a continuous input current of 5 A at 400 V and an estimated power loss of 88 W. The code E20 selects the IP20/Chassis version, which is enclosure size A2; H2 means an RFI filter of class A2 (C3), and X in position 18 means no brake IGBT. The remaining characters give a VLT® Control Panel LCP 102 graphical keypad (G), the standard PCB coating, class 3C2 (X), no mains option, standard cable entries and the latest released standard software (SXXX), no fieldbus A-option (AX), with no B-option (BX) or C-options (CX) and no D-option (DX).
