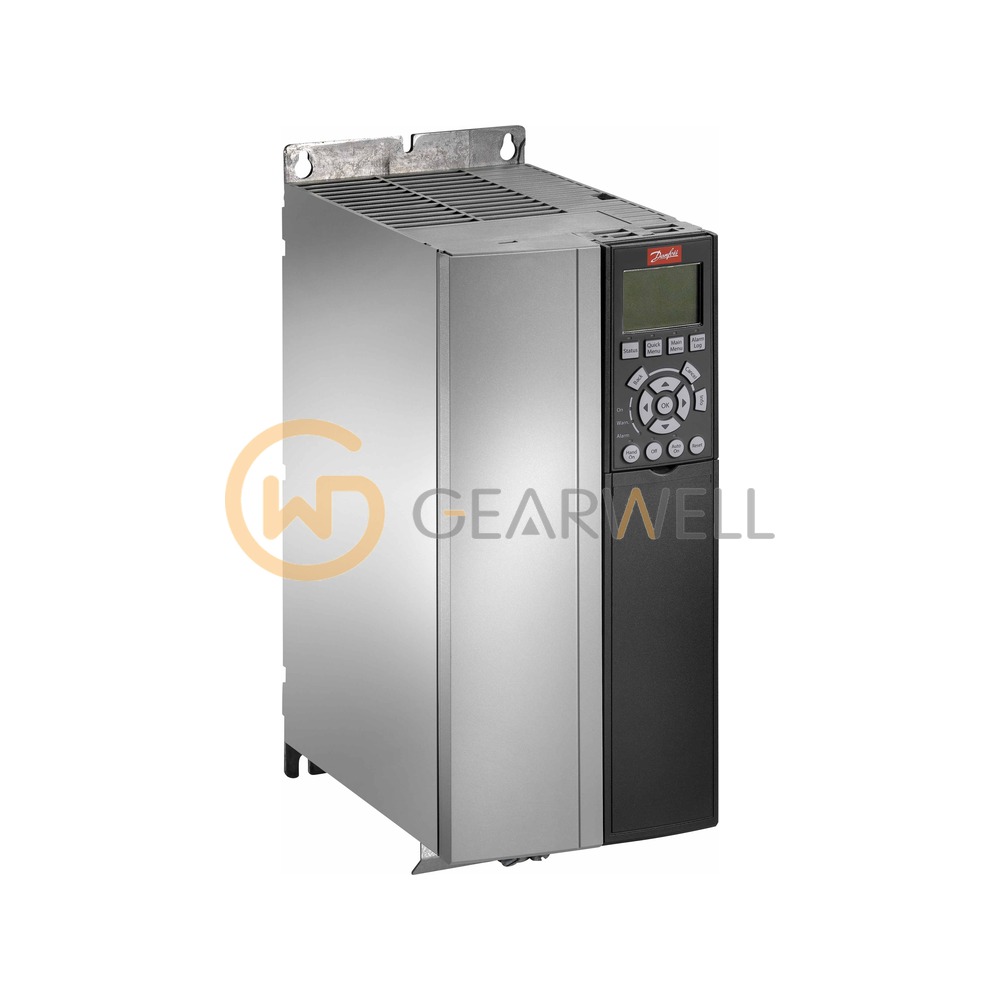

Danfoss FC-302P15KT5E20 AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- FC-302P15KT5E20
- GEARWELL SKU
- GWP-000011634
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- B3
- Enclosure (code E20)
- IP20 / Chassis
- Collected type code
- FC-302P15KT5E20
- Mains supply (code T5)
- 3-phase 380-500 V AC
- Rated power (code P15K)
- 15 kW / 20 HP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-302P15KT5E20 is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P15K, rated 15 kW / 20 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 32 A continuous and 51.2 A intermittent (60 s) output current on 380-440 V, or 27 A and 43.2 A on 441-500 V, with a continuous input current of 29 A at 400 V and an estimated power loss of 379 W. In normal overload (110%) the same drive is rated 18.5 kW / 25 hp at 37.5 A (380-440 V) or 34 A (441-500 V) continuous. The code E20 selects the IP20/Chassis version, which is enclosure size B3. The RFI filter, brake, LCP, coating and option characters are not specified in this catalog number, so the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-302P15KT5E20 AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-302P15KT5E20 |
| Category | Variable Frequency Drives |
| Frame size | B3 |
| Enclosure (code E20) | IP20 / Chassis |
| Collected type code | FC-302P15KT5E20 |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P15K) | 15 kW / 20 HP |
| Remaining positions options | RFI H1 / H2 / H3 / H4, brake X / B, LCP X / N / G, coating X / C, A option AX / A0 / AL / AN ... (specify on order) |
