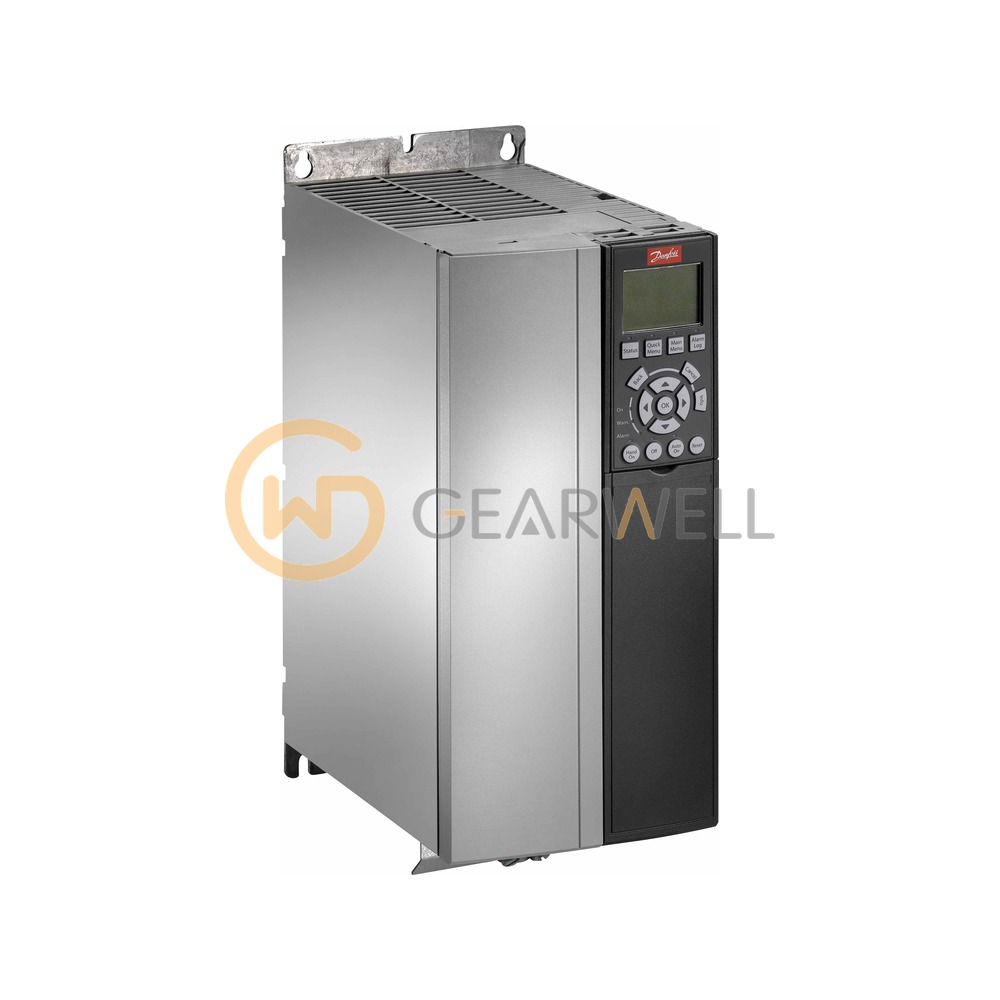

Danfoss FC-302P18KT5E20 AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- FC-302P18KT5E20
- GEARWELL SKU
- GWP-000011635
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- B4
- Enclosure (code E20)
- IP20 / Chassis
- Collected type code
- FC-302P18KT5E20
- Mains supply (code T5)
- 3-phase 380-500 V AC
- Rated power (code P18K)
- 18.5 kW / 25 HP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-302P18KT5E20 is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P18K, rated 18.5 kW / 25 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 37.5 A continuous and 60 A intermittent (60 s) output current on 380-440 V, or 34 A and 54.4 A on 441-500 V, with a continuous input current of 34 A at 400 V and an estimated power loss of 444 W. In normal overload (110%) the same drive is rated 22 kW / 30 hp at 44 A (380-440 V) or 40 A (441-500 V) continuous. The code E20 selects the IP20/Chassis version, which is enclosure size B4. The RFI filter, brake, LCP, coating and option characters are not specified in this catalog number, so the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-302P18KT5E20 AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-302P18KT5E20 |
| Category | Variable Frequency Drives |
| Frame size | B4 |
| Enclosure (code E20) | IP20 / Chassis |
| Collected type code | FC-302P18KT5E20 |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P18K) | 18.5 kW / 25 HP |
| Remaining positions options | RFI H1 / H2 / H3 / H4, brake X / B, LCP X / N / G, coating X / C, A option AX / A0 / AL / AN ... (specify on order) |
