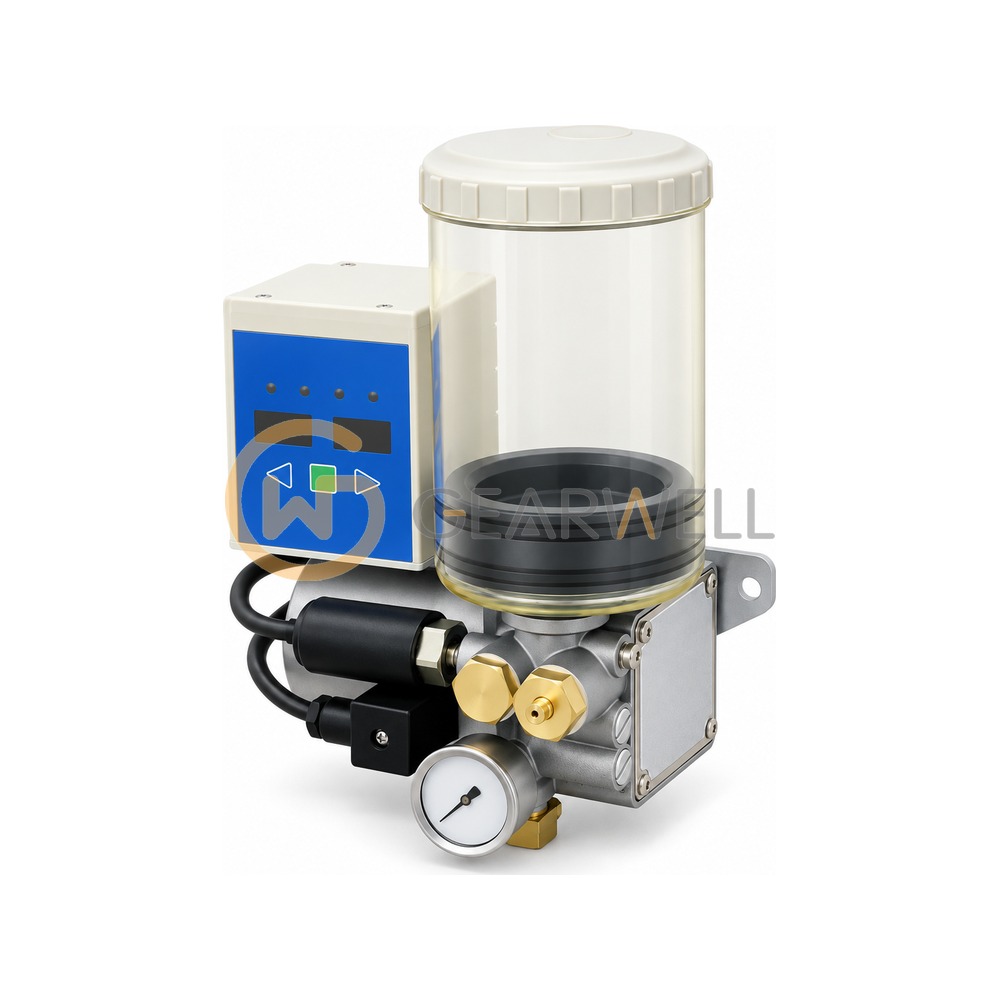

CHENYING KGN-35 Resistance Type Grease Electric Lubricator 1000cc
- Brand
- CHENYING
- Model
- KGN-35
- GEARWELL SKU
- GWP-000011917
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible
- Ampere
- 1.8A / 1.0A
- N.W. (kg)
- 4.65
- Series
- KGN Resistance Type Grease Electric Lubricator
- Voltage
- AC110V / AC220V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KGN-35 Resistance Type Grease Electric Lubricator 1000cc |
|---|---|
| Brand | CHENYING |
| Model | KGN-35 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible |
| Ampere | 1.8A / 1.0A |
| N.W. (kg) | 4.65 |
| Series | KGN Resistance Type Grease Electric Lubricator |
| Voltage | AC110V / AC220V |
| Width (mm) | 146 |
| Height (mm) | 292 |
| Length (mm) | 237 |
| Motor Output | 60W / 80W |
| Interval Time | 1-999 sec., 1-999 min. |
| Tank Capacity | 1000cc |
| Discharge Bore | Ø6, Ø8, PT1/8 |
| Operation Time | 1-999 sec. |
| Pressure Switch | Optional (NC Contact) |
| Voltage options | AC110V / AC220V (specify on order) |
| Suitable Viscosity | Grease, NLGI 000-0 |
| Max. Discharge Volume | 30cc/min |
| Time Setting options | sec x sec / sec x min (specify on order) |
| Magnetic Level Switch | Optional (NC Contact) |
| Discharge Bore options | φ6 / φ6 W/Pressure Gauge / φ8 / φ8 W/Pressure Gauge / PT1/8 / PT1/8 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 190 |
| Max. Operating Pressure | 100kgf/c㎡ |
| Optional special requests | Add a NC Contact Pressure Switch / Add a NC Contact Magnetic Level Switch |
