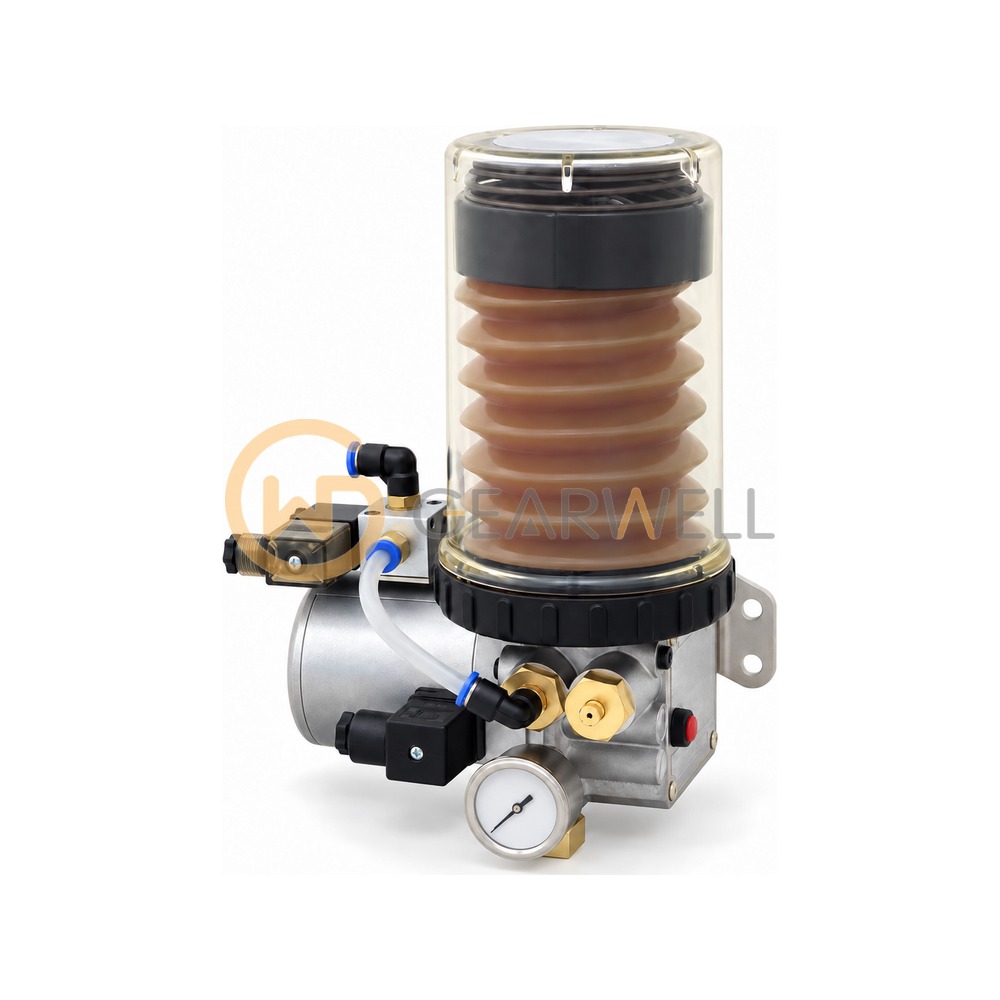

CHENYING KGBP-07 Pressure-Relief Grease Electric/Pneumatic Lubricator
- Brand
- CHENYING
- Model
- KGBP-07
- GEARWELL SKU
- GWP-000011913
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible / --
- Series
- KGBP Pressure-Relief Type Grease Electric/Pneumatic Lubricator
- Discharge Bore
- Ø6, Ø8, PT1/8
- Voltage options
- AC 110V / AC 220V / DC24V (specify on order)
- Effective Capacity
- 700cc Grease Cartridge
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KGBP-07 Pressure-Relief Grease Electric/Pneumatic Lubricator |
|---|---|
| Brand | CHENYING |
| Model | KGBP-07 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible / -- |
| Series | KGBP Pressure-Relief Type Grease Electric/Pneumatic Lubricator |
| Discharge Bore | Ø6, Ø8, PT1/8 |
| Voltage options | AC 110V / AC 220V / DC24V (specify on order) |
| Effective Capacity | 700cc Grease Cartridge |
| Suitable Viscosity | Grease, NLGI 000~1 |
| Max. Discharge Volume | 30cc/min / 35cc/min |
| Discharge Bore options | φ6 / φ6 W/Pressure Gauge / φ8 / φ8 W/Pressure Gauge / PT1/8 / PT1/8 W/Pressure Gauge (specify on order) |
| Max. Operating Pressure | 100kgf/c㎡ |
| Optional special requests | Add a NC Contact Pressure Switch / Add a NO Contact Pressure Switch / Add a NC Contact Magnetic Level Switch / Add a NO Contact Magnetic Level Switch |
| Pressure-Relief Type options | Pneumatic Type / Electric Type (specify on order) |
