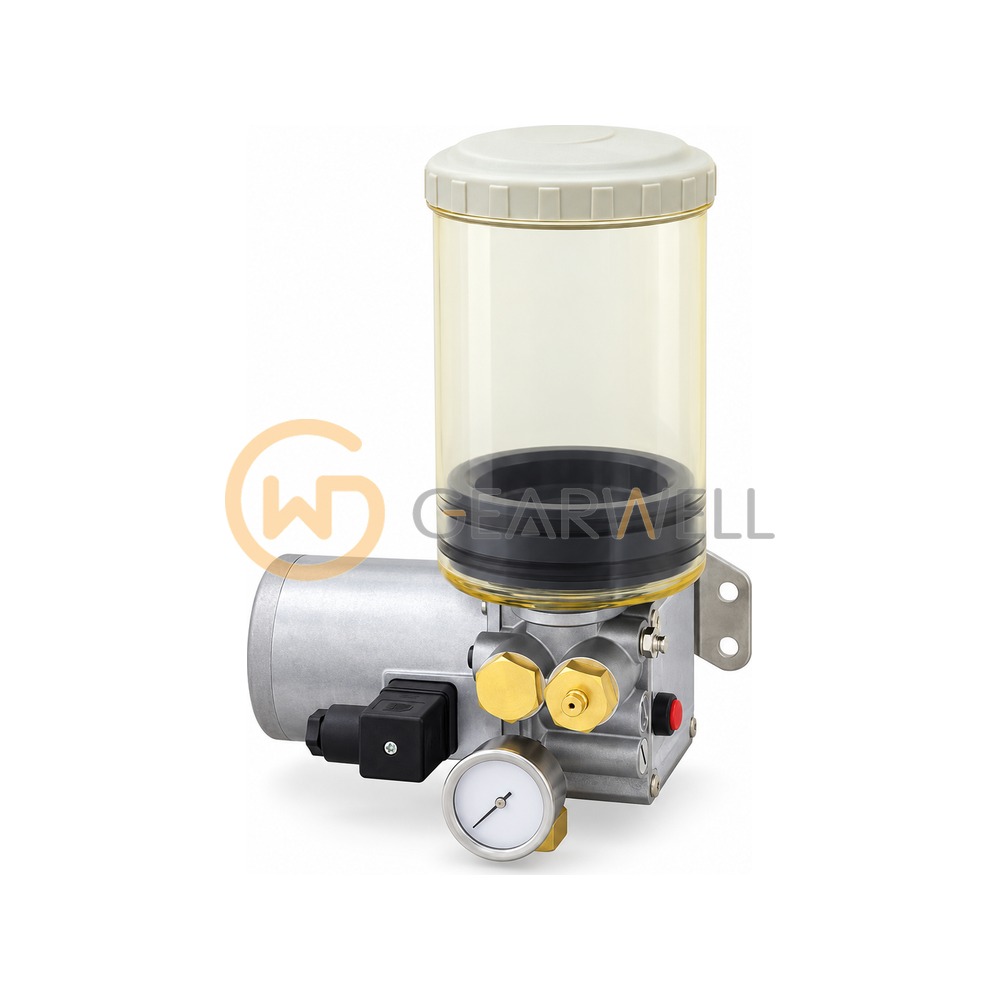

CHENYING KGC-50 Resistance Type Grease Electric Lubricator 2000cc
- Brand
- CHENYING
- Model
- KGC-50
- GEARWELL SKU
- GWP-000011915
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible / --
- Series
- KGC Resistance Type Grease Electric Lubricator
- Tank Capacity
- 2000cc
- Discharge Bore
- Ø6, Ø8, PT1/8
- Pressure Switch
- Optional (NC or NO Contact)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KGC-50 Resistance Type Grease Electric Lubricator 2000cc |
|---|---|
| Brand | CHENYING |
| Model | KGC-50 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible / -- |
| Series | KGC Resistance Type Grease Electric Lubricator |
| Tank Capacity | 2000cc |
| Discharge Bore | Ø6, Ø8, PT1/8 |
| Pressure Switch | Optional (NC or NO Contact) |
| Voltage options | 1φ110V / 1φ220V / DC24V (specify on order) |
| Suitable Viscosity | Grease, NLGI 000-0 |
| Max. Discharge Volume | 30cc/min / 35cc/min |
| Magnetic Level Switch | Optional (NC or NO Contact) |
| Discharge Bore options | φ6 / φ6 W/Pressure Gauge / φ8 / φ8 W/Pressure Gauge / PT1/8 / PT1/8 W/Pressure Gauge (specify on order) |
| Max. Operating Pressure | 100kgf/c㎡ |
| Optional special requests | Add a NC Contact Pressure Switch / Add a NO Contact Pressure Switch / Add a NC Contact Magnetic Level Switch / Add a NO Contact Magnetic Level Switch |
