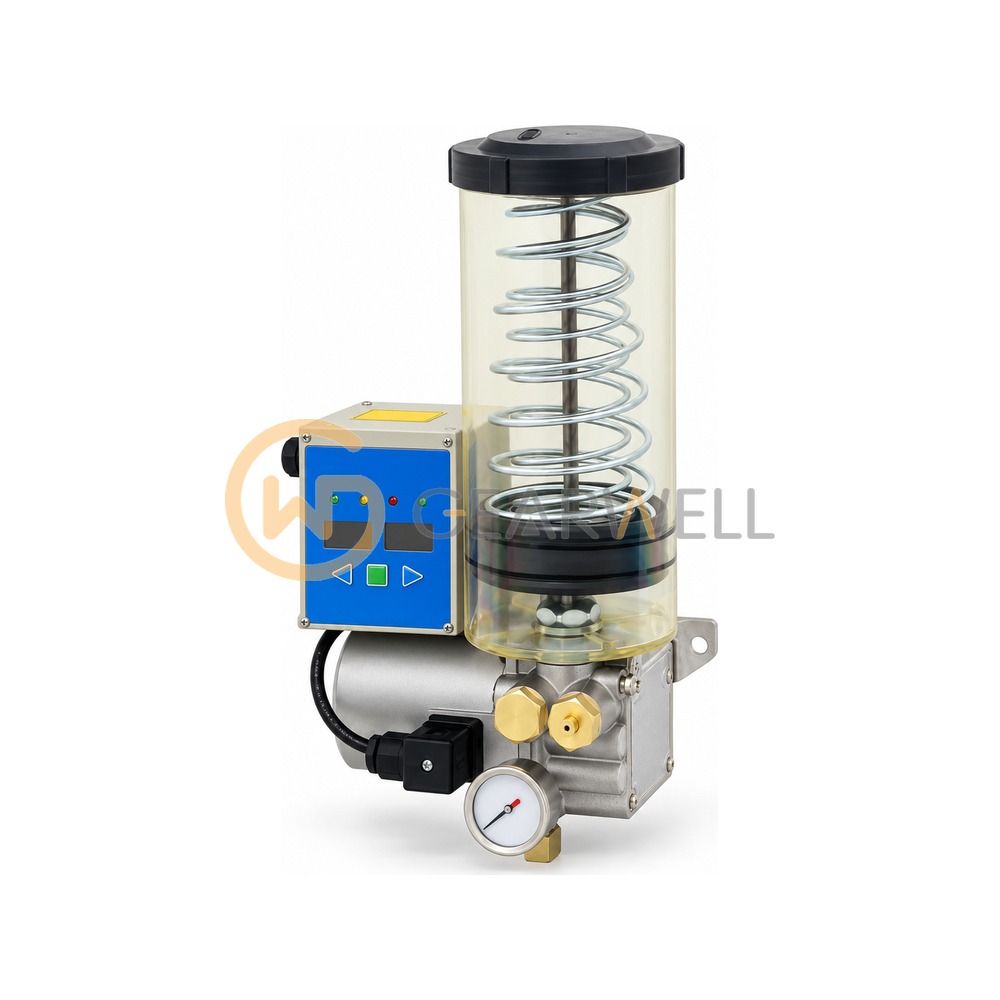

CHENYING KGNP-07 Resistance Type Grease Electric Lubricator
- Brand
- CHENYING
- Model
- KGNP-07
- GEARWELL SKU
- GWP-000011919
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible
- Ampere
- 1.8A / 1.0A
- Series
- KGNP Resistance Type Grease Electric Lubricator
- Voltage
- AC110V / AC220V
- Motor Output
- 60W / 80W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KGNP-07 Resistance Type Grease Electric Lubricator |
|---|---|
| Brand | CHENYING |
| Model | KGNP-07 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible |
| Ampere | 1.8A / 1.0A |
| Series | KGNP Resistance Type Grease Electric Lubricator |
| Voltage | AC110V / AC220V |
| Motor Output | 60W / 80W |
| Interval Time | 1-999 sec., 1-999 min. |
| Discharge Bore | Ø6, Ø8, PT1/8 |
| Operation Time | 1-999 sec. |
| Pressure Switch | Optional (NC Contact) |
| Voltage options | AC110V / AC220V (specify on order) |
| Effective Capacity | 700cc Grease Cartridge |
| Suitable Viscosity | KGNP-50: Grease, NLGI 1, 2 KGNP-07: Grease, NLGI 000-1 |
| Max. Discharge Volume | 30cc/min |
| Time Setting options | sec x sec / sec x min (specify on order) |
| Magnetic Level Switch | Optional (NC Contact) |
| Discharge Bore options | φ6 / φ6 W/Pressure Gauge / φ8 / φ8 W/Pressure Gauge / PT1/8 / PT1/8 W/Pressure Gauge (specify on order) |
| Max. Operating Pressure | 100kgf/c㎡ |
| Optional special requests | Add a NC Contact Pressure Switch / Add a NC Contact Magnetic Level Switch |
