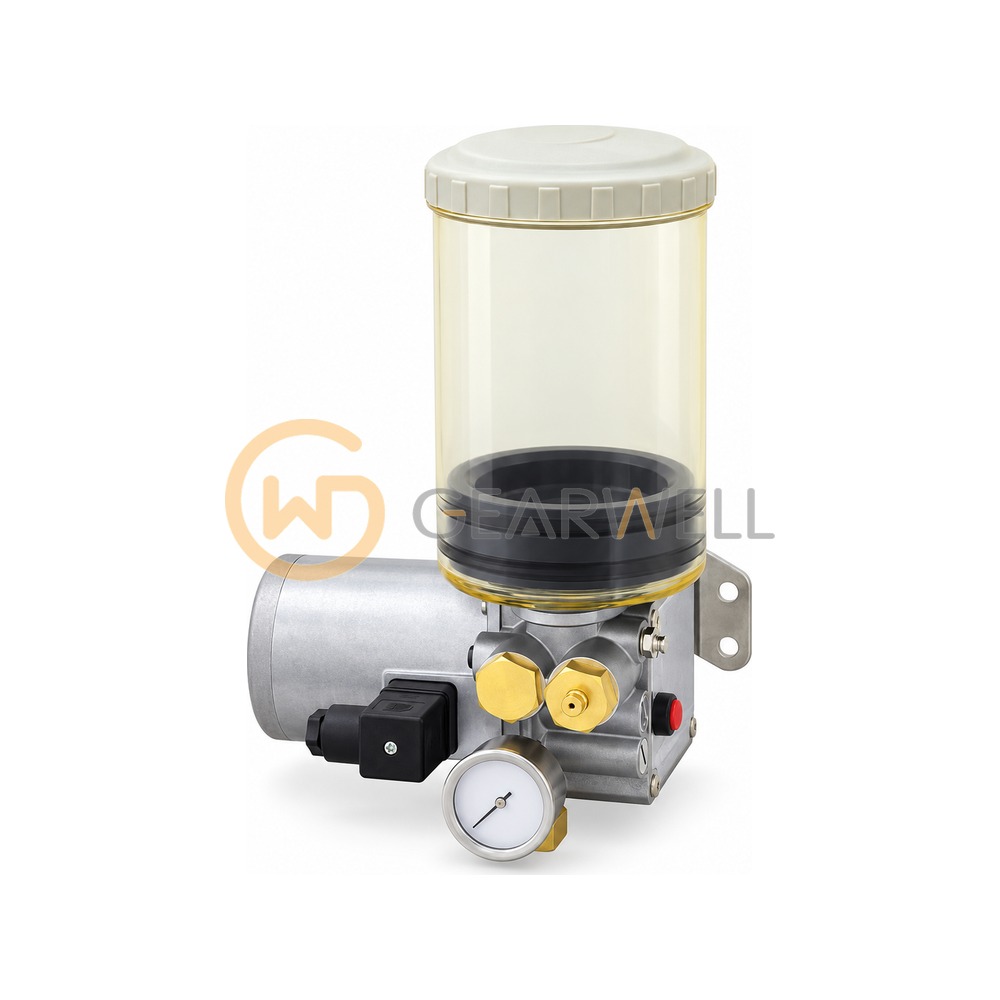

CHENYING KGC-35 Resistance Type Grease Electric Lubricator 1000cc
- Brand
- CHENYING
- Model
- KGC-35
- GEARWELL SKU
- GWP-000011914
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible / --
- N.W. (kg)
- 4.07
- Series
- KGC Resistance Type Grease Electric Lubricator
- Width (mm)
- 146
- Height (mm)
- 292
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KGC-35 Resistance Type Grease Electric Lubricator 1000cc |
|---|---|
| Brand | CHENYING |
| Model | KGC-35 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible / -- |
| N.W. (kg) | 4.07 |
| Series | KGC Resistance Type Grease Electric Lubricator |
| Width (mm) | 146 |
| Height (mm) | 292 |
| Length (mm) | 191 |
| Tank Capacity | 1000cc |
| Discharge Bore | Ø6, Ø8, PT1/8 |
| Pressure Switch | Optional (NC or NO Contact) |
| Voltage options | 1φ110V / 1φ220V / DC24V (specify on order) |
| Suitable Viscosity | Grease, NLGI 000-0 |
| Max. Discharge Volume | 30cc/min / 35cc/min |
| Magnetic Level Switch | Optional (NC or NO Contact) |
| Discharge Bore options | φ6 / φ6 W/Pressure Gauge / φ8 / φ8 W/Pressure Gauge / PT1/8 / PT1/8 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 104 |
| Max. Operating Pressure | 100kgf/c㎡ |
| Optional special requests | Add a NC Contact Pressure Switch / Add a NO Contact Pressure Switch / Add a NC Contact Magnetic Level Switch / Add a NO Contact Magnetic Level Switch |
