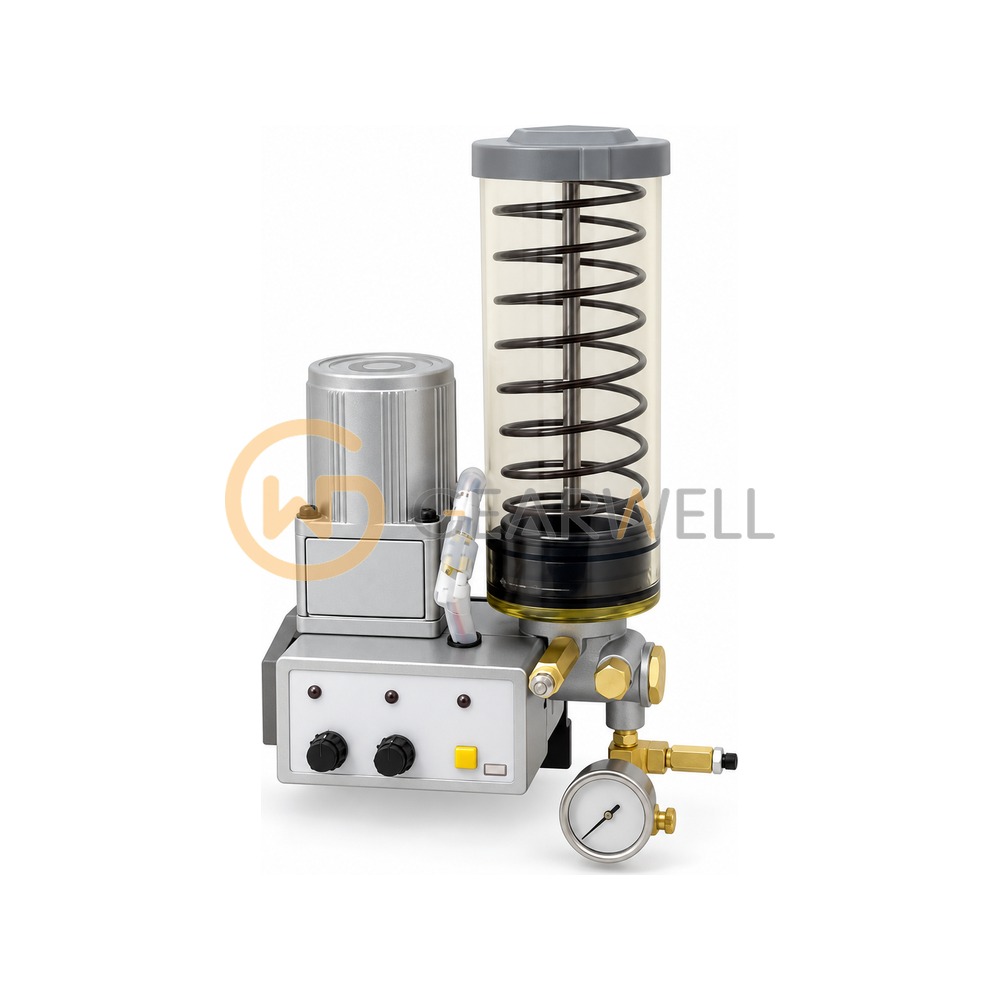

CHENYING KSBP-50 Resistance Type Grease Electric Lubricator
- Brand
- CHENYING
- Model
- KSBP-50
- GEARWELL SKU
- GWP-000012019
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible / --
- Series
- KSBP Resistance Type Grease Electric Lubricator with Metal Spring
- AC110V, AC220V
- DC24V / M = Motor
- Interval Time
- 1-180 min., 1-360 min.
- Discharge Bore
- Ø4, Ø6, Ø8, PT1/8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING KSBP-50 Resistance Type Grease Electric Lubricator |
|---|---|
| Brand | CHENYING |
| Model | KSBP-50 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible / -- |
| Series | KSBP Resistance Type Grease Electric Lubricator with Metal Spring |
| AC110V, AC220V | DC24V / M = Motor |
| Interval Time | 1-180 min., 1-360 min. |
| Discharge Bore | Ø4, Ø6, Ø8, PT1/8 |
| Operation Time | 3 sec. to 12 min. |
| Voltage options | AC110V / AC220V / DC24V (specify on order) |
| Effective Capacity | 1500cc |
| Suitable Viscosity | Grease, NLGI 1, 2 |
| Max. Discharge Volume | 15cc/min |
| Interval Time options | 180min / 360min (specify on order) |
| Magnetic Level Switch | Optional (NC or NO Contact) |
| Discharge Bore options | φ4 / φ6 / φ4 W/Pressure Gauge / φ6 W/Pressure Gauge / φ8 / φ8 W/Pressure Gauge / PT1/8 / PT1/8 W/Pressure Gauge (specify on order) |
| Max. Operating Pressure | 150kgf/c㎡ |
| Optional special requests | Add a NC Contact Magnetic Level Switch / Add a NO Contact Magnetic Level Switch |
