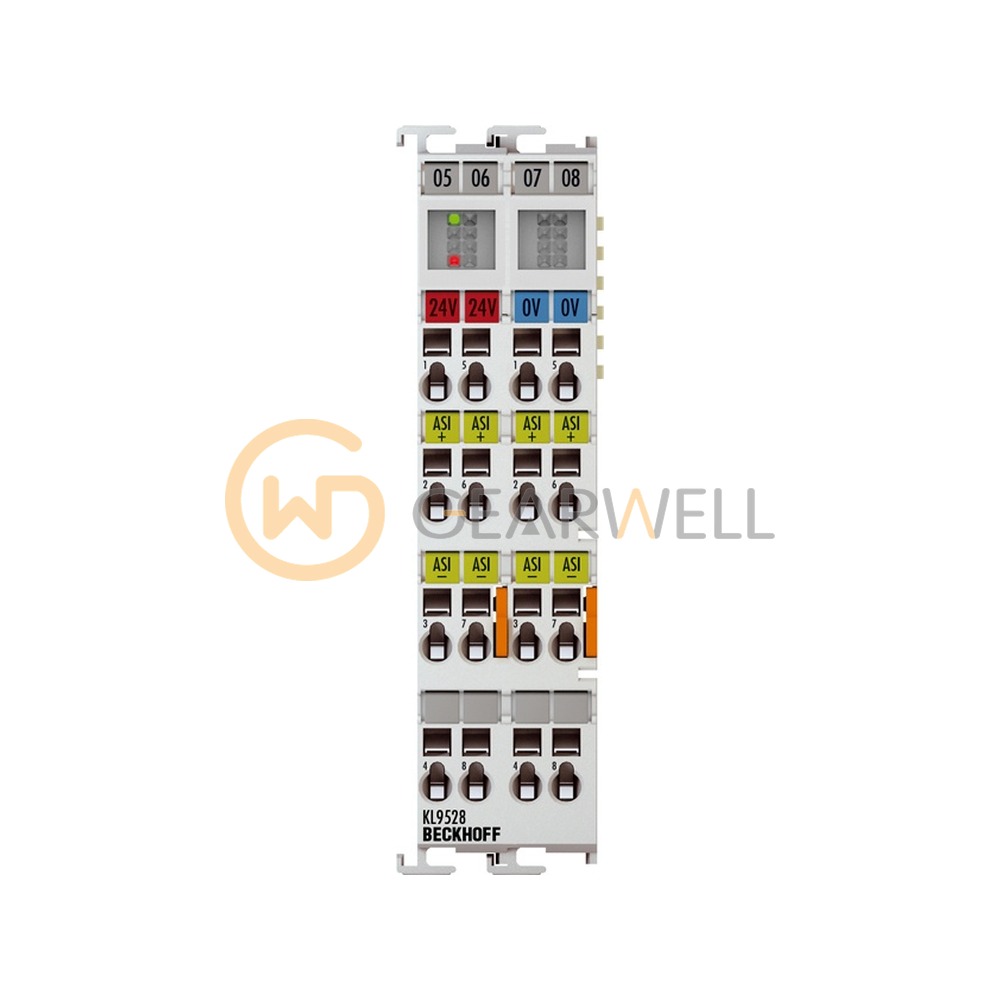

BECKHOFF KL9528 AS-Interface Power Supply Terminal 24 V DC/30 V DC
- Brand
- BECKHOFF
- Model
- KL9528
- GEARWELL SKU
- GWP-000008311
- Category
- PLCs & I/O
Key specifications
- Efficiency
- approx. 95%
- K-bus length
- 2 inputs, 2 outputs
- Input voltage
- 21…28.8 V DC
- Output current
- max. 1.25 A
- Output voltage
- 30 V DC (+5%/-5%)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9528 is an AS-Interface power supply terminal that generates 30 V DC (up to 1.25 A) from a 24 V DC input, with about 95 % efficiency. It is short-circuit proof with automatic restart. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9528 AS-Interface Power Supply Terminal 24 V DC/30 V DC |
|---|---|
| Brand | BECKHOFF |
| Model | KL9528 |
| Category | PLCs & I/O |
| Efficiency | approx. 95% |
| K-bus length | 2 inputs, 2 outputs |
| Input voltage | 21…28.8 V DC |
| Output current | max. 1.25 A |
| Output voltage | 30 V DC (+5%/-5%) |
| Short-circuit proof | yes, automatic restart |
| Short-circuit current | max. 1.3 A |
| Current consumption K-bus | typ. 10 mA |
