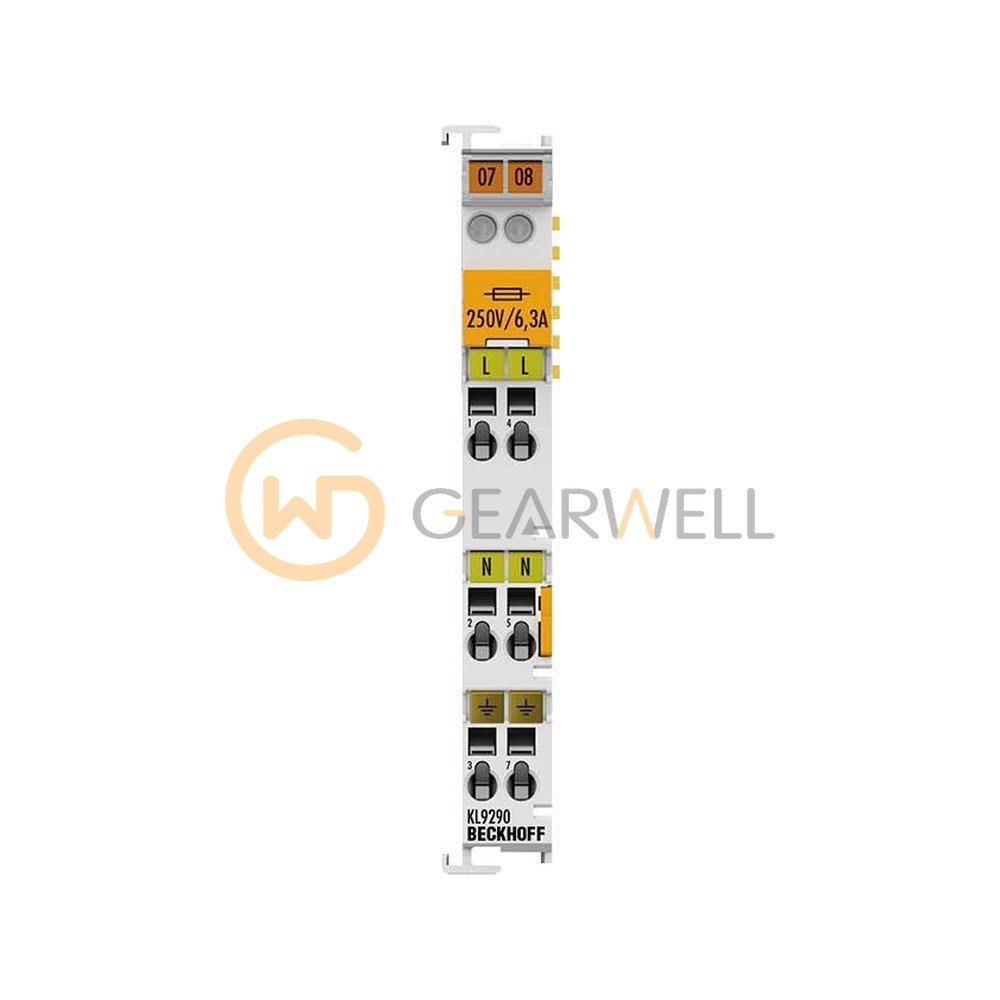

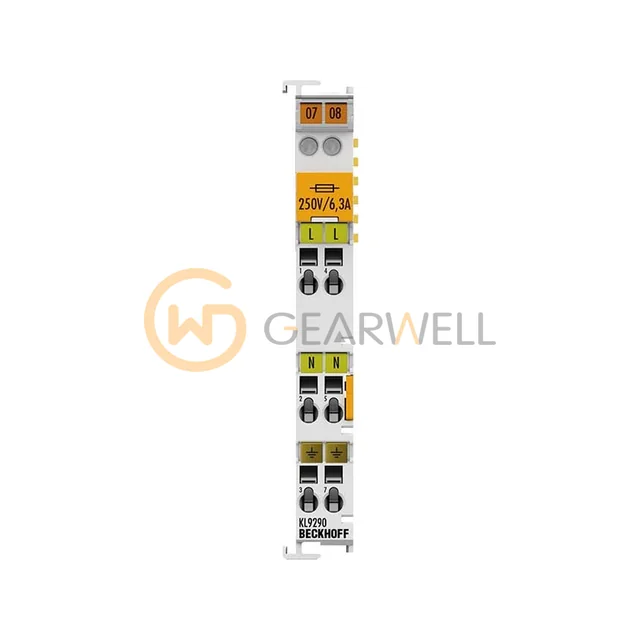

BECKHOFF KL9290 Potential Supply Terminal
- Brand
- BECKHOFF
- Model
- KL9290
- GEARWELL SKU
- GWP-000008308
- Category
- PLCs & I/O
Key specifications
- Current load
- ≤ 10 A
- Housing width
- 12 mm
- Nominal voltage
- arbitrary
- Electrical isolation
- yes
- K-bus, looped through
- yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9290 is a potential supply terminal for any voltage up to 230 V AC with an integrated fine-wire fuse of up to 6.3 A, for a current load up to 10 A. It feeds one additional power contact, loops the K-bus through, occupies no bits in the process image and is 12 mm wide. It operates at 0 to 55 °C and carries CE, CCC, UL, ATEX, IECEx, DNV and cFMus approvals. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9290 Potential Supply Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL9290 |
| Category | PLCs & I/O |
| Current load | ≤ 10 A |
| Housing width | 12 mm |
| Nominal voltage | arbitrary |
| Electrical isolation | yes |
| K-bus, looped through | yes |
| Integrated fine-wire fuse | …6.3 A |
| Bit width in the process image | 0 |
| Connection facility to additional power contact | 1 |
