BECKHOFF PS3031-2420-0001 Power Supply PS3000
- Brand
- BECKHOFF
- Model
- PS3031-2420-0001
- GEARWELL SKU
- GWP-000007162
- Category
- Power Supplies
Key specifications
- Input current
- typ. 0.79 A at 400 V AC
- Input voltage
- 3 AC 380…480 V
- Output voltage
- 24 V DC
- Mains frequency
- 50…60 Hz
- Starting current
- typ. 3 A peak at 400 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

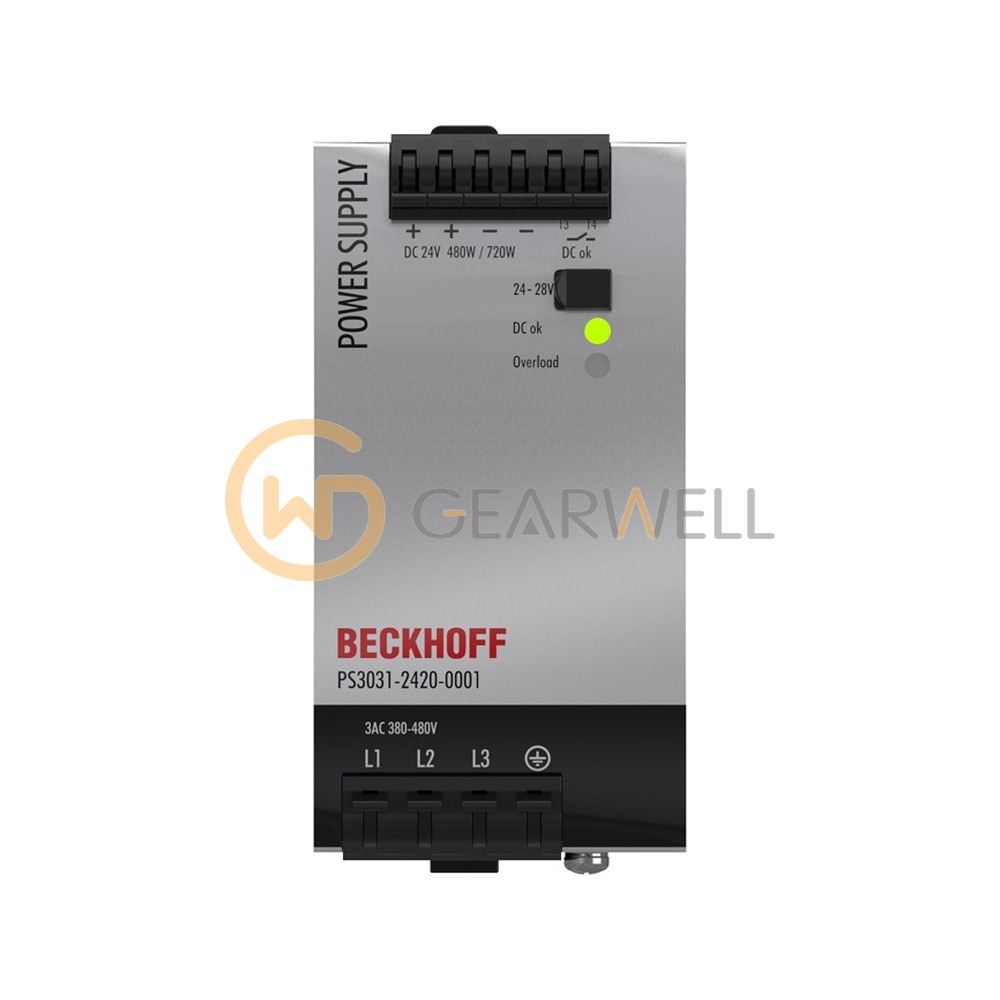

Beckhoff PS3031-2420-0001 is a PS3000 DIN-rail power supply that delivers 24 V DC at 20 A (480 W) from a 3-phase 380 to 480 V AC input, with about 95 % efficiency. It provides 50 % extra power for 4 s and has DC OK and overload LEDs. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF PS3031-2420-0001 Power Supply PS3000 |
|---|---|
| Brand | BECKHOFF |
| Model | PS3031-2420-0001 |
| Category | Power Supplies |
| Input current | typ. 0.79 A at 400 V AC |
| Input voltage | 3 AC 380…480 V |
| Output voltage | 24 V DC |
| Mains frequency | 50…60 Hz |
| Starting current | typ. 3 A peak at 400 V AC |
| Wide-range input | yes |
| Harmonic correction (PFC) | active |
| Switch-on current limiter | yes |
