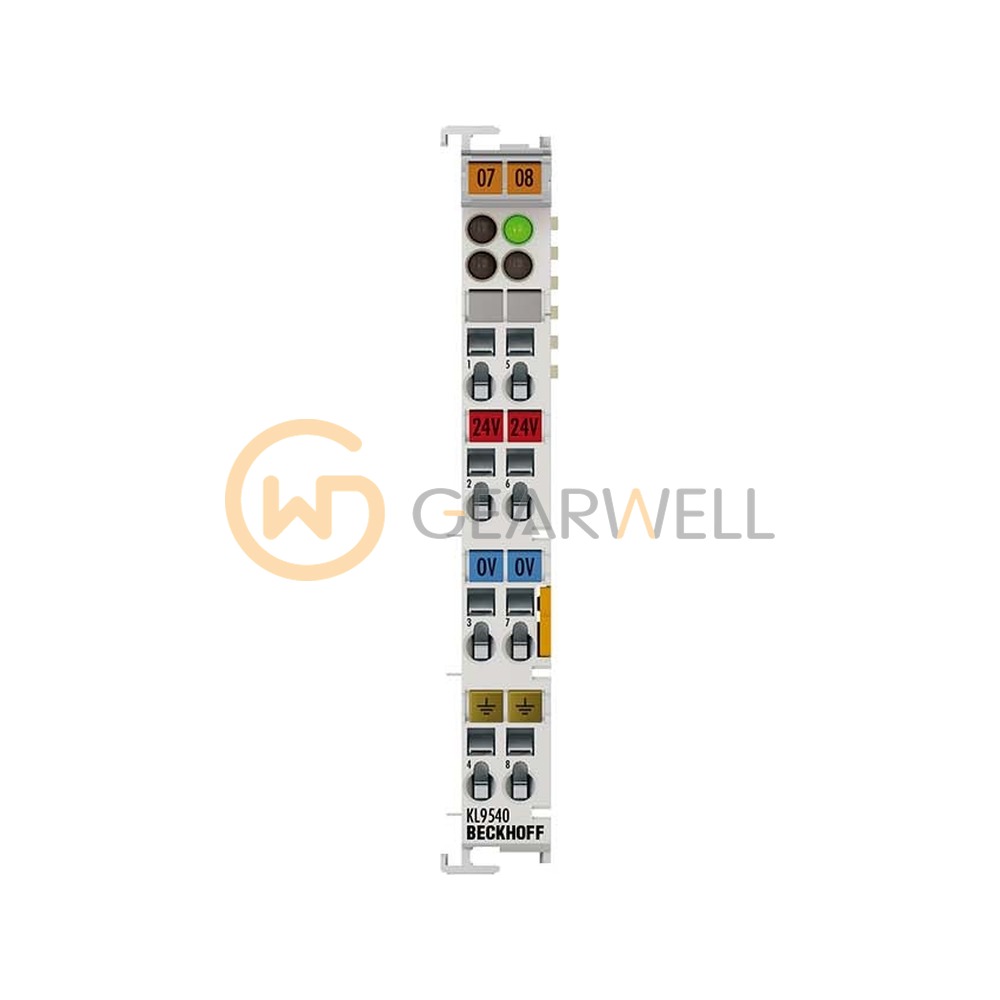

BECKHOFF KL9540 System Terminal, Surge Filter Field Supply
- Brand
- BECKHOFF
- Model
- KL9540
- GEARWELL SKU
- GWP-000008312
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 40 g
- Nominal voltage
- 24 V DC (-15%/+20%)
- Operating temperature
- -25…+60 °C
- Surge filter field supply
- yes
- Current carrying capacity field supply
- ≤ 10 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9540 is a surge filter terminal for the 24 V DC field supply of a Bus Terminal station, for up to 10 A. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9540 System Terminal, Surge Filter Field Supply |
|---|---|
| Brand | BECKHOFF |
| Model | KL9540 |
| Category | PLCs & I/O |
| Weight | approx. 40 g |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Operating temperature | -25…+60 °C |
| Surge filter field supply | yes |
| Current carrying capacity field supply | ≤ 10 A |
