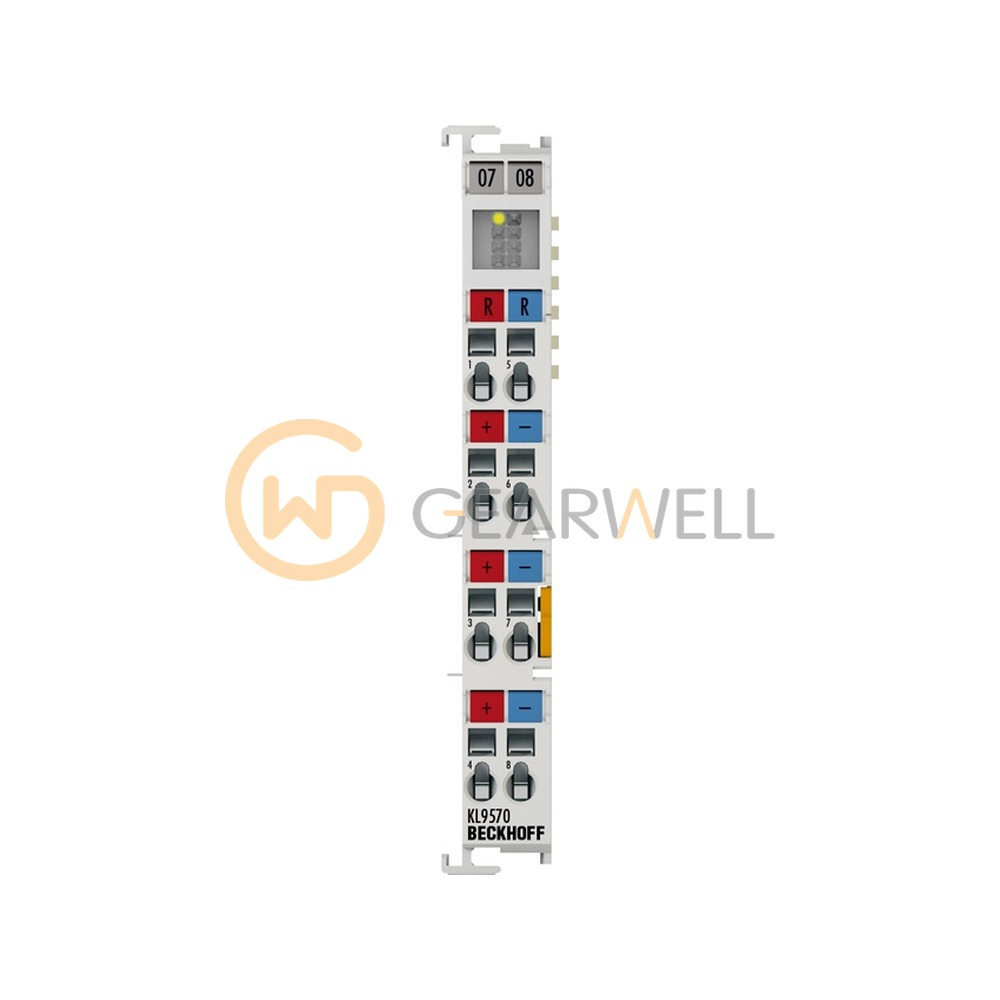

BECKHOFF KL9570 Buffer Capacitor Terminal
- Brand
- BECKHOFF
- Model
- KL9570
- GEARWELL SKU
- GWP-000008313
- Category
- PLCs & I/O
Key specifications
- Capacity
- 500 µF
- Nominal voltage
- 50 V
- Max. ripple current
- 10 A @ 100 kHz
- Internal resistance
- < 20 mΩ @ 100 kHz
- Surge voltage protection
- > 56 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9570 is a buffer capacitor terminal for Bus Terminal stations with 500 µF at 50 V, used to stabilize supply voltages, for example with stepper motor terminals; Beckhoff recommends the ZB8110 braking resistor with it. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9570 Buffer Capacitor Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL9570 |
| Category | PLCs & I/O |
| Capacity | 500 µF |
| Nominal voltage | 50 V |
| Max. ripple current | 10 A @ 100 kHz |
| Internal resistance | < 20 mΩ @ 100 kHz |
| Surge voltage protection | > 56 V |
| Overvoltage control range | ±2 V |
| Braking resistor clock rate | load-dependent, 2-point control |
| Recommended braking resistor | ZB8110 |
