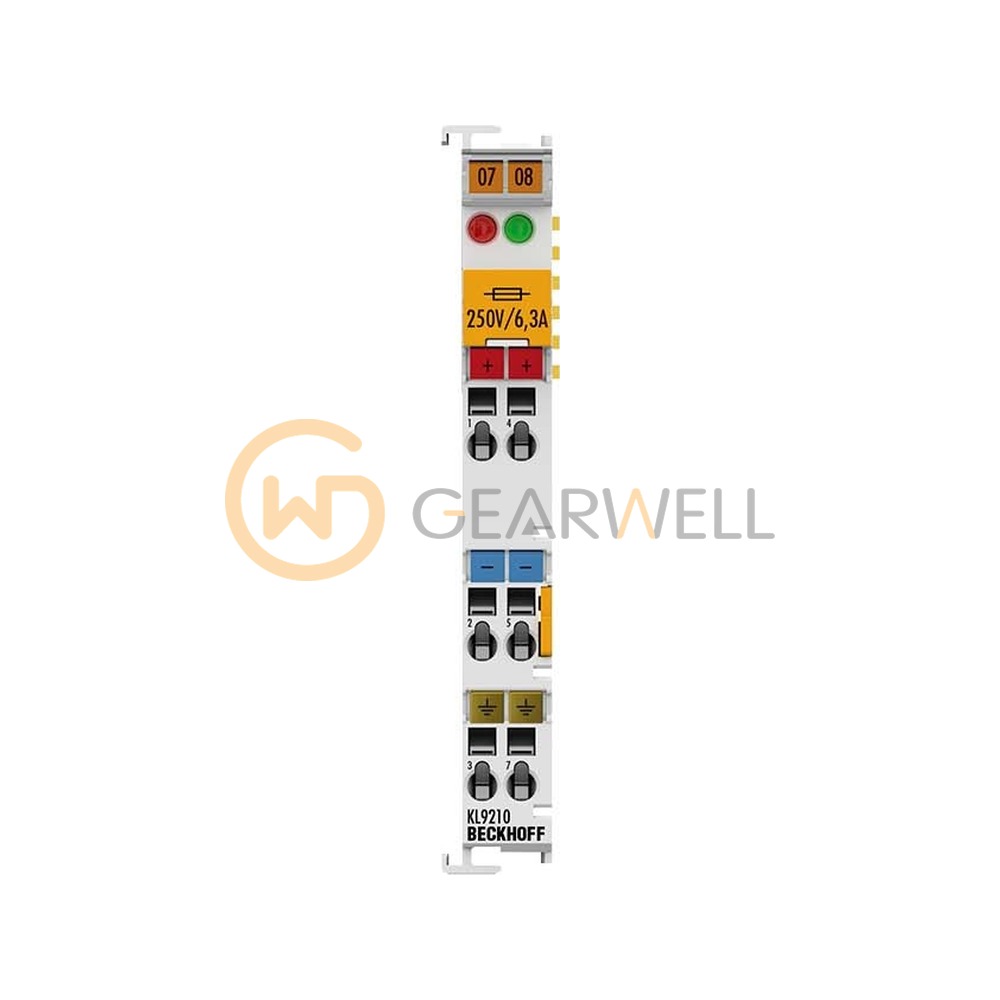

BECKHOFF KL9210 Potential Supply Terminal
- Brand
- BECKHOFF
- Model
- KL9210
- GEARWELL SKU
- GWP-000008307
- Category
- PLCs & I/O
Key specifications
- Power LED
- green
- Defect LED
- red
- Diagnostics
- yes
- Current load
- ≤ 10 A
- Nominal voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9210 is a 24 V DC potential supply terminal with diagnostics and an integrated fuse (up to 6.3 A) for Bus Terminal stations. Green and red LEDs show supply and fuse status, which is also reported to the K-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9210 Potential Supply Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL9210 |
| Category | PLCs & I/O |
| Power LED | green |
| Defect LED | red |
| Diagnostics | yes |
| Current load | ≤ 10 A |
| Nominal voltage | 24 V DC |
| Electrical isolation | yes |
| Current consumption K-bus | typ. 10 mA |
| Integrated fine-wire fuse | …6.3 A |
