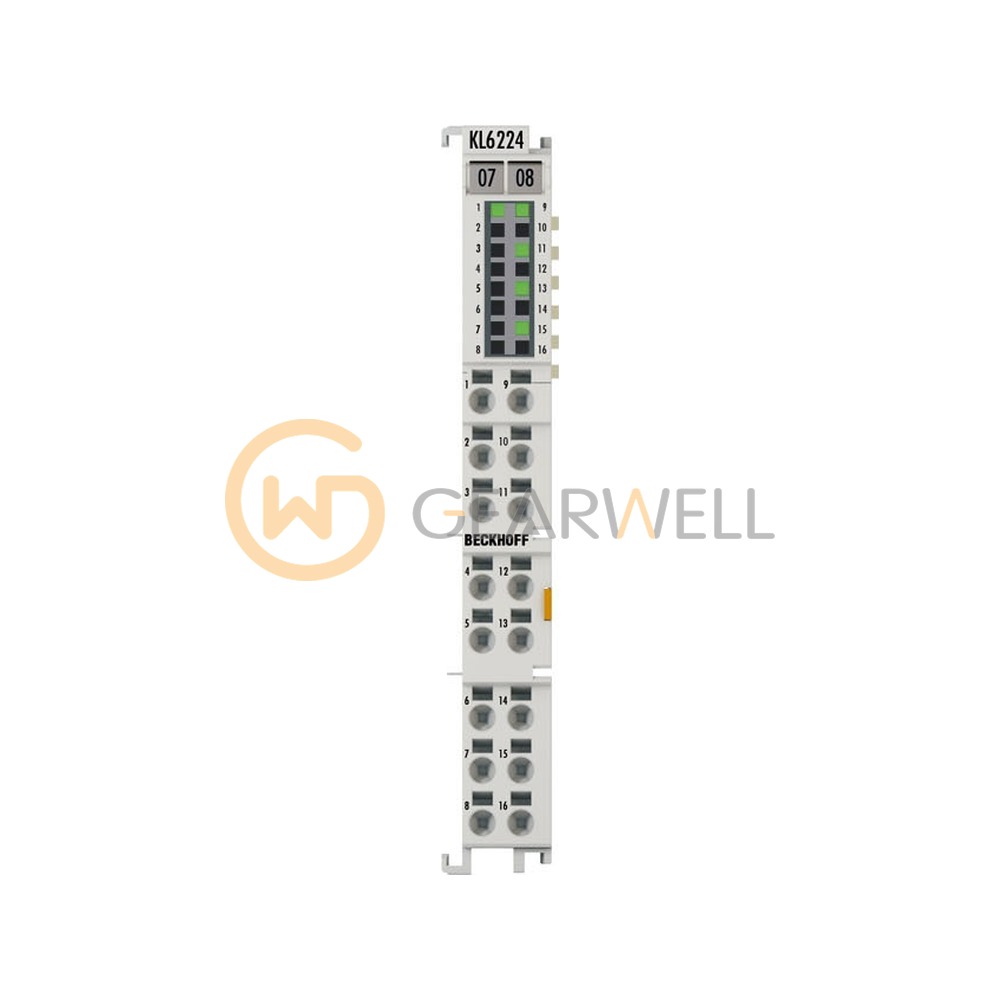

BECKHOFF KL6224 4-Channel IO-Link Master Bus Terminal
- Brand
- BECKHOFF
- Model
- KL6224
- GEARWELL SKU
- GWP-000008282
- Category
- PLCs & I/O
Key specifications
- Connection
- 3-wire
- Technology
- IO-Link
- Cable length
- max. 20 m
- Power supply
- via K-bus and power contacts
- Field voltage
- 24 V DC via power contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL6224 is a 4-channel IO-Link master Bus Terminal (K-bus) for 3-wire IO-Link devices at 4.8, 38.4 or 230.4 kbaud, with cable lengths up to 20 m. Each port supplies up to 500 mA to its device. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL6224 4-Channel IO-Link Master Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL6224 |
| Category | PLCs & I/O |
| Connection | 3-wire |
| Technology | IO-Link |
| Cable length | max. 20 m |
| Power supply | via K-bus and power contacts |
| Field voltage | 24 V DC via power contacts |
| Transmission rate | 4.8 kbaud, 38.4 kbaud and 230.4 kbaud |
| IO-Link interfaces | 4 |
| Number of channels | 4 |
