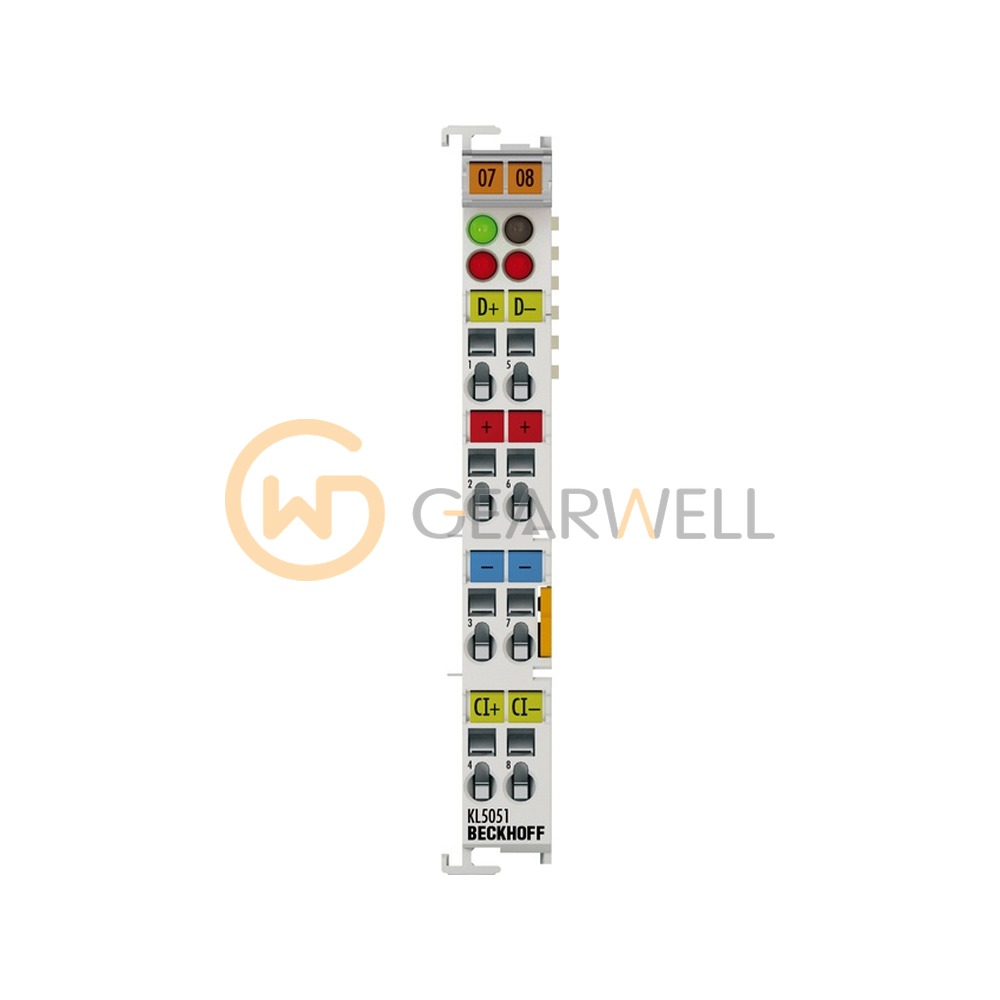

BECKHOFF KL5051 1-Channel Encoder Interface Bus Terminal
- Brand
- BECKHOFF
- Model
- KL5051
- GEARWELL SKU
- GWP-000008280
- Category
- PLCs & I/O
Key specifications
- Technology
- SSI encoder interface
- Power supply
- 5 V DC via power contacts (KL9505)
- Encoder supply
- 5 V DC
- Transmission rate
- 1 MHz
- Encoder connection
- binary input: D+, D-, binary output: Cl+, Cl-
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL5051 is a 1-channel bidirectional SSI encoder interface Bus Terminal (K-bus) with RS422 differential clock and data lines at 1 MHz. The 5 V DC encoder supply comes from the power contacts via a KL9505 power supply terminal. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL5051 1-Channel Encoder Interface Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL5051 |
| Category | PLCs & I/O |
| Technology | SSI encoder interface |
| Power supply | 5 V DC via power contacts (KL9505) |
| Encoder supply | 5 V DC |
| Transmission rate | 1 MHz |
| Encoder connection | binary input: D+, D-, binary output: Cl+, Cl- |
| Number of channels | 1 encoder interface |
| Current consumption | typ. 85 mA without encoder |
| Current consumption power contacts | no data |
