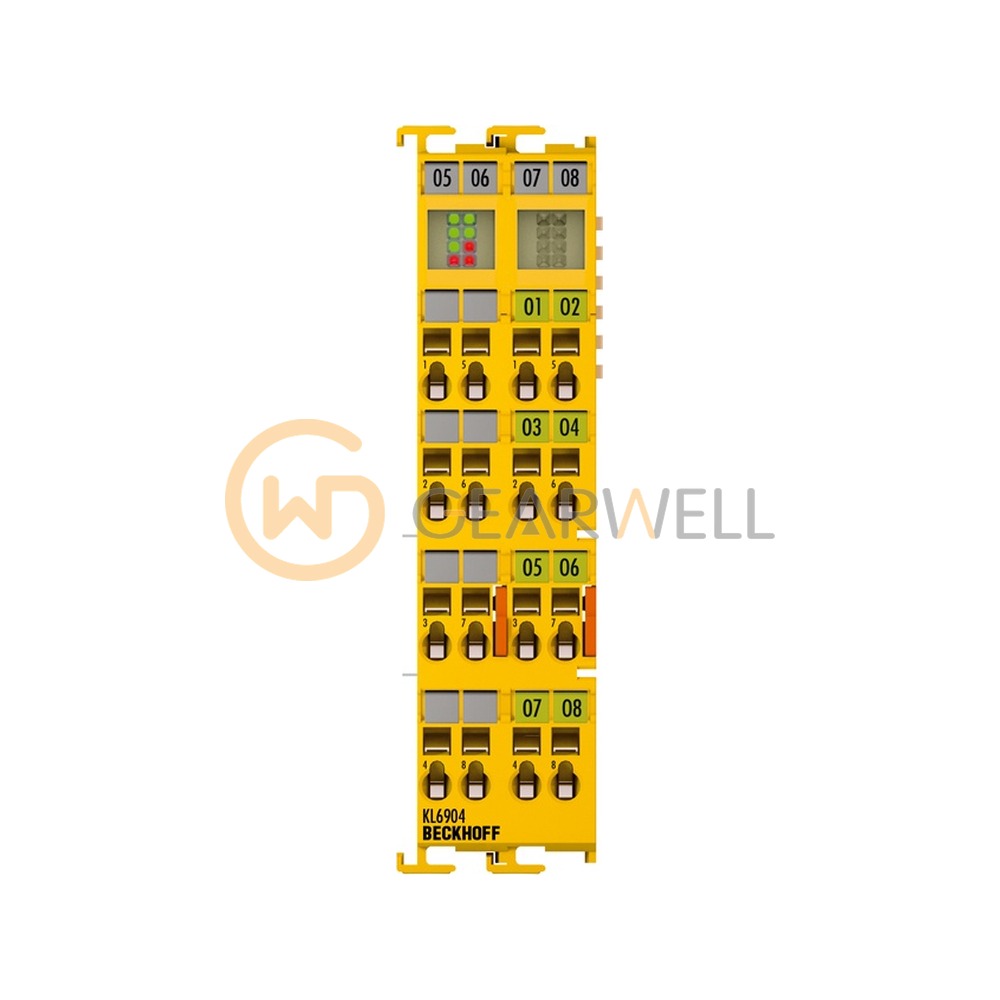

BECKHOFF KL6904 TwinSAFE Logic Bus Terminal
- Brand
- BECKHOFF
- Model
- KL6904
- GEARWELL SKU
- GWP-000008285
- Category
- PLCs & I/O
Key specifications
- Protocol
- TwinSAFE/Safety over EtherCAT
- Cycle time
- 4…100 ms
- Number of outputs
- 4
- Max. output current
- 0.5 A/20 mA min. (per channel)
- Fault response time
- ≤ watchdog time (parameterizable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL6904 is a TwinSAFE logic Bus Terminal (K-bus) with 4 fail-safe 24 V DC outputs of up to 0.5 A each, certified to EN ISO 13849-1 Cat. 4/PL e and EN 61508 SIL 3. Check the full order number and the TwinSAFE project of the existing machine when requesting a quote.
Technical reference
| Product name | BECKHOFF KL6904 TwinSAFE Logic Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL6904 |
| Category | PLCs & I/O |
| Protocol | TwinSAFE/Safety over EtherCAT |
| Cycle time | 4…100 ms |
| Number of outputs | 4 |
| Max. output current | 0.5 A/20 mA min. (per channel) |
| Fault response time | ≤ watchdog time (parameterizable) |
| Connection technology | 2-wire |
| Current consumption K-bus | max. 250 mA |
| Current consumption power contacts | load-dependent |
