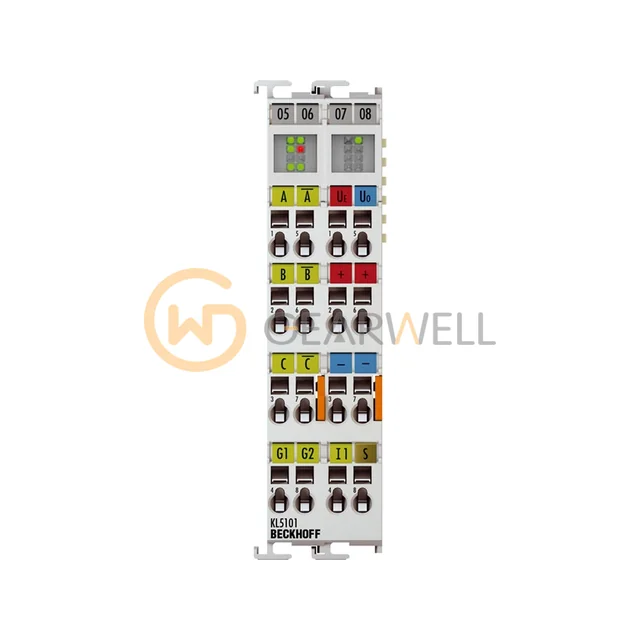

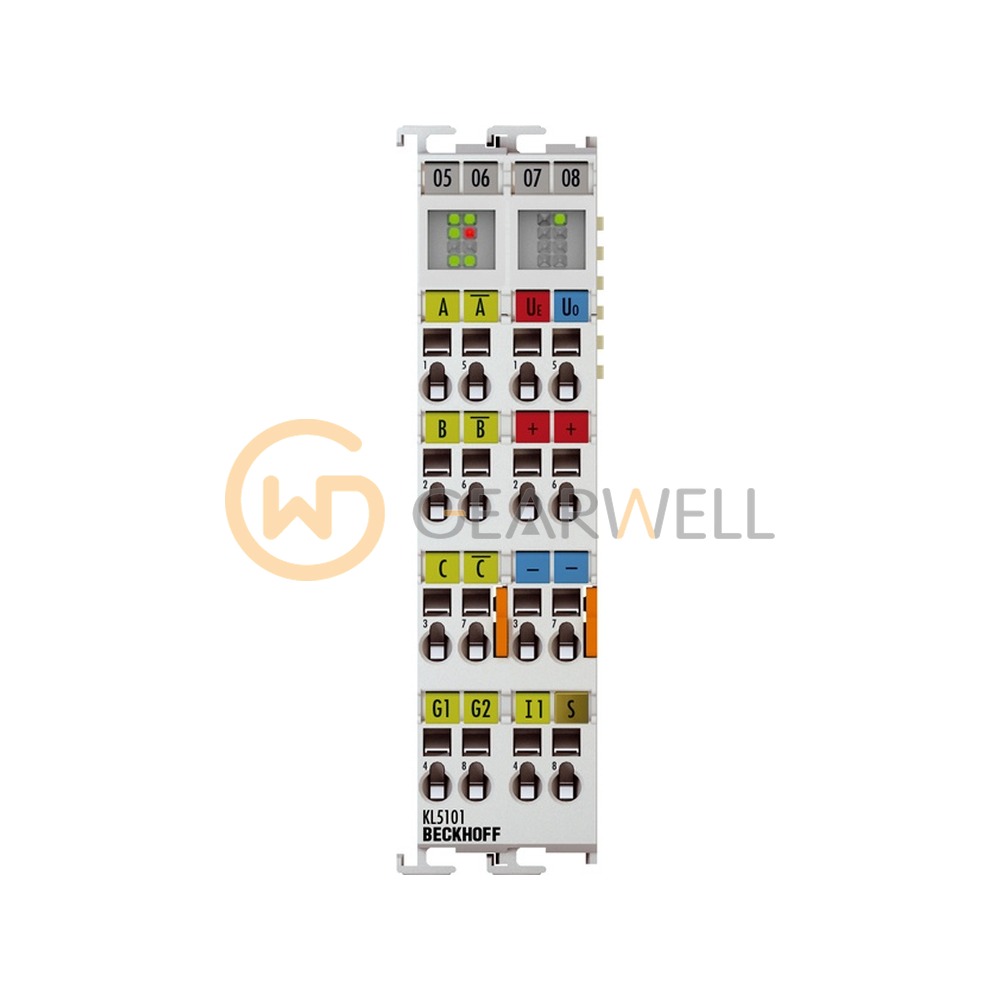

BECKHOFF KL5101 1-Channel Encoder Interface Bus Terminal
- Brand
- BECKHOFF
- Model
- KL5101
- GEARWELL SKU
- GWP-000007161
- Category
- PLCs & I/O
Key specifications
- Counter
- 16 bit, binary
- Technology
- incremental encoder interface RS422
- Zero-pulse latch
- 16 bit
- Cut-off frequency
- 4 million increments/s (with 4-fold evaluation)
- Number of channels
- 1 incremental encoder + 1 input
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL5101 is a 1-channel incremental encoder interface Bus Terminal (K-bus) for 5 V DC encoders (RS422 differential or TTL), with a 16-bit counter and up to 4 million increments/s with 4-fold evaluation. The encoder supply is 5 V DC, up to 0.5 A. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL5101 1-Channel Encoder Interface Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL5101 |
| Category | PLCs & I/O |
| Counter | 16 bit, binary |
| Technology | incremental encoder interface RS422 |
| Zero-pulse latch | 16 bit |
| Cut-off frequency | 4 million increments/s (with 4-fold evaluation) |
| Number of channels | 1 incremental encoder + 1 input |
| Quadrature decoder | 1-, 2-, 4-fold evaluation |
| Encoder output current | 0.5 A |
| Encoder operating voltage | 5 V DC |
