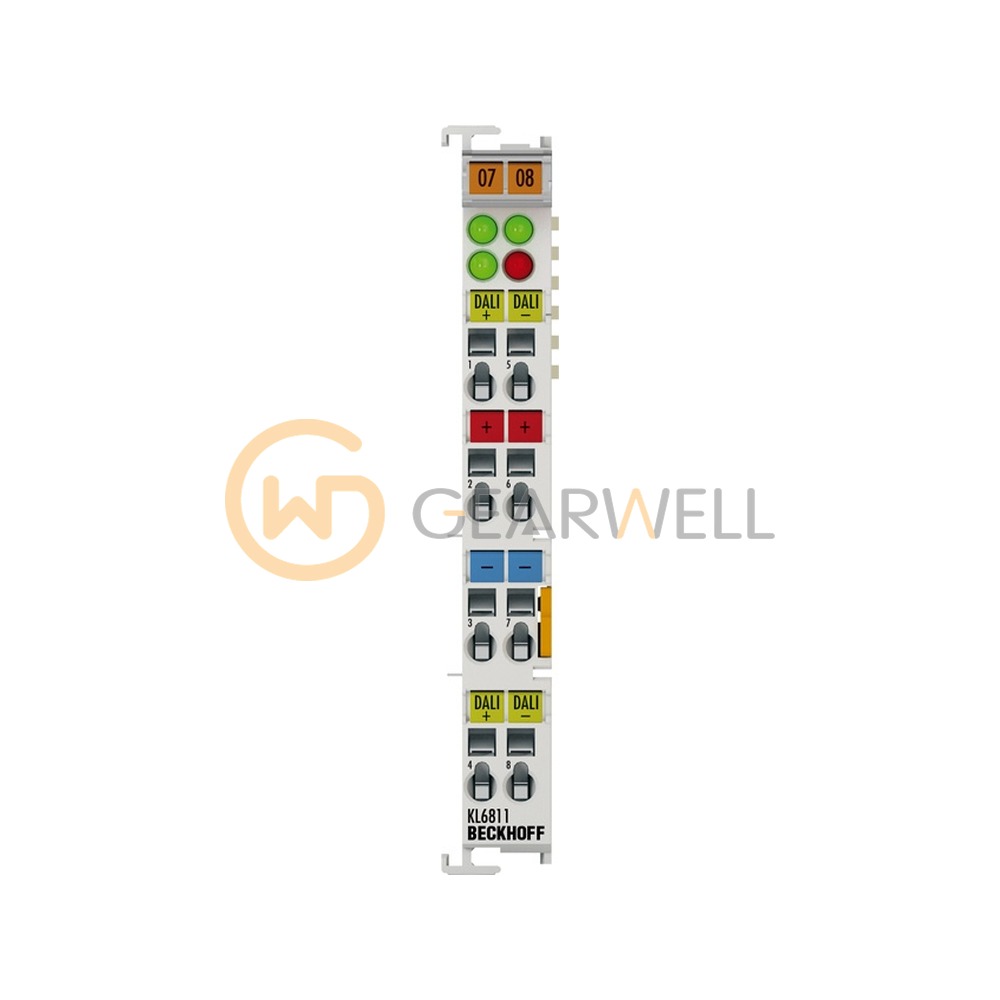

BECKHOFF KL6811 1-Channel DALI Master Bus Terminal
- Brand
- BECKHOFF
- Model
- KL6811
- GEARWELL SKU
- GWP-000008284
- Category
- PLCs & I/O
Key specifications
- Technology
- DALI/DSI
- Slaves/groups
- max. 64/max. 16
- Transmission rate
- 1200 baud
- Number of channels
- 1
- Data transfer channels
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL6811 is a DALI/DSI master Bus Terminal (K-bus) with integrated DALI power supply, for up to 64 DALI slaves in up to 16 groups. It is used with the TwinCAT PLC DALI library. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL6811 1-Channel DALI Master Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL6811 |
| Category | PLCs & I/O |
| Technology | DALI/DSI |
| Slaves/groups | max. 64/max. 16 |
| Transmission rate | 1200 baud |
| Number of channels | 1 |
| Data transfer channels | 1 |
| Data transfer standard | DALI |
| Current consumption K-bus | typ. 55 mA |
| Current consumption power contacts | typ. 30 mA + load |
