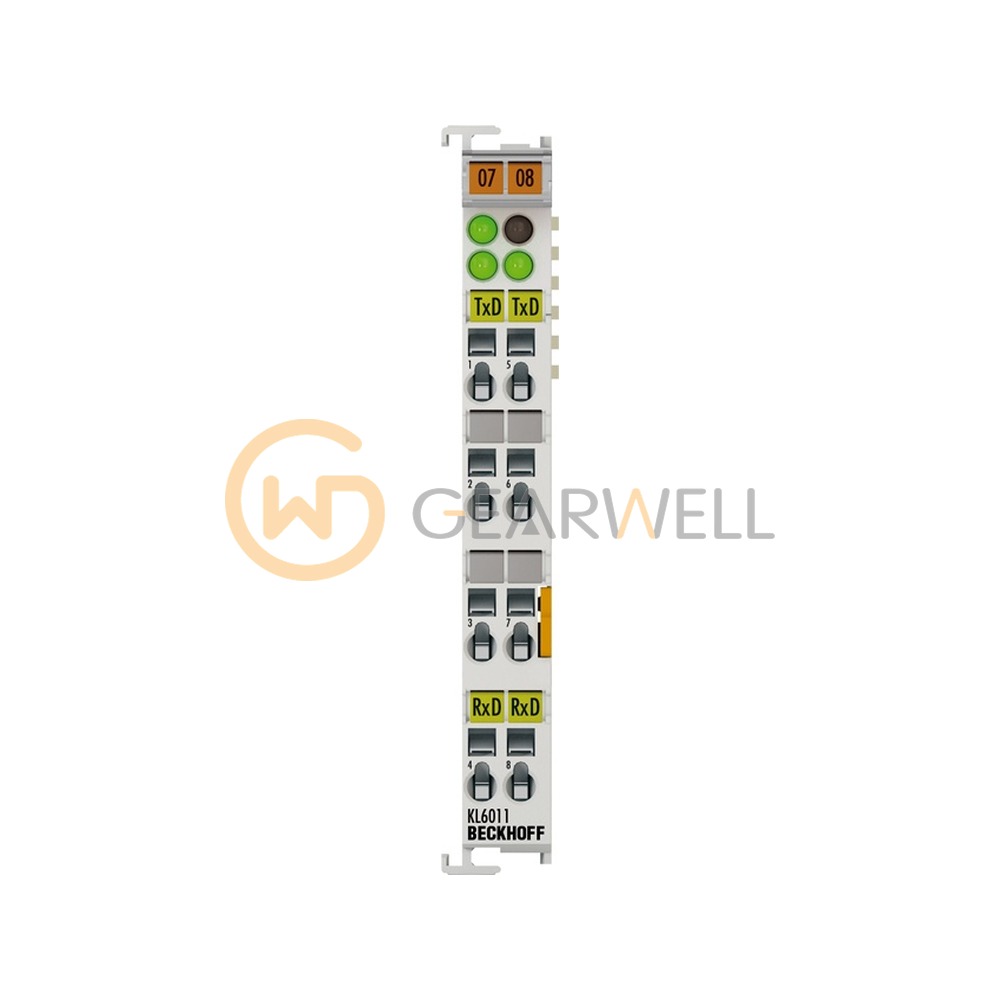

BECKHOFF KL6011 1-Channel Serial Interface Bus Terminal
- Brand
- BECKHOFF
- Model
- KL6011
- GEARWELL SKU
- GWP-000008281
- Category
- PLCs & I/O
Key specifications
- Load
- < 500 Ω
- Technology
- TTY
- Bit transfer
- 2 x 20 mA
- Cable length
- max. 1000 m twisted pair
- Power supply
- via the K-bus
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL6011 is a 1-channel TTY (20 mA current loop) serial interface Bus Terminal (K-bus), at 1,200 to 19,200 baud in full duplex. Twisted-pair cable runs of up to 1,000 m are possible. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL6011 1-Channel Serial Interface Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL6011 |
| Category | PLCs & I/O |
| Load | < 500 Ω |
| Technology | TTY |
| Bit transfer | 2 x 20 mA |
| Cable length | max. 1000 m twisted pair |
| Power supply | via the K-bus |
| Transmission rate | 1200…19,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit |
| Data transfer channels | 2 (1/1), TxD and RxD, full duplex |
| Current consumption K-bus | typ. 55 mA |
