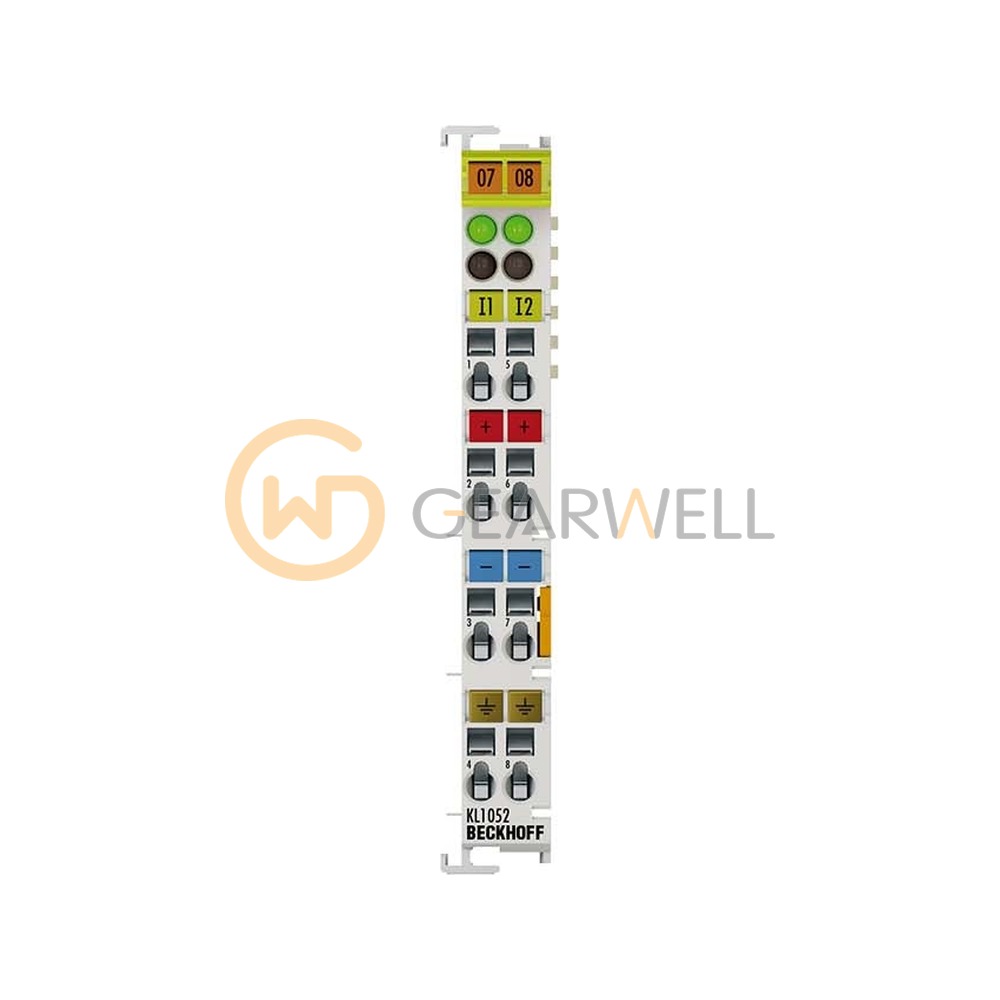

BECKHOFF KL1052 2-Channel Digital Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL1052
- GEARWELL SKU
- GWP-000008167
- Category
- PLCs & I/O
Key specifications
- Input filter
- typ. 3 ms
- Input current
- typ. 3 mA
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of inputs
- 2
- Electrical isolation
- 500 V (K-bus/field potential)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL1052 is a 2-channel digital input Bus Terminal (K-bus) for 24 V DC positive- or ground-switching signals with a typical 3 ms input filter and 4-wire connection. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL1052 2-Channel Digital Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL1052 |
| Category | PLCs & I/O |
| Input filter | typ. 3 ms |
| Input current | typ. 3 mA |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of inputs | 2 |
| Electrical isolation | 500 V (K-bus/field potential) |
| Connection technology | 4-wire |
| Current consumption K-bus | typ. 8 mA |
| Bit width in the process image | 2 inputs |
