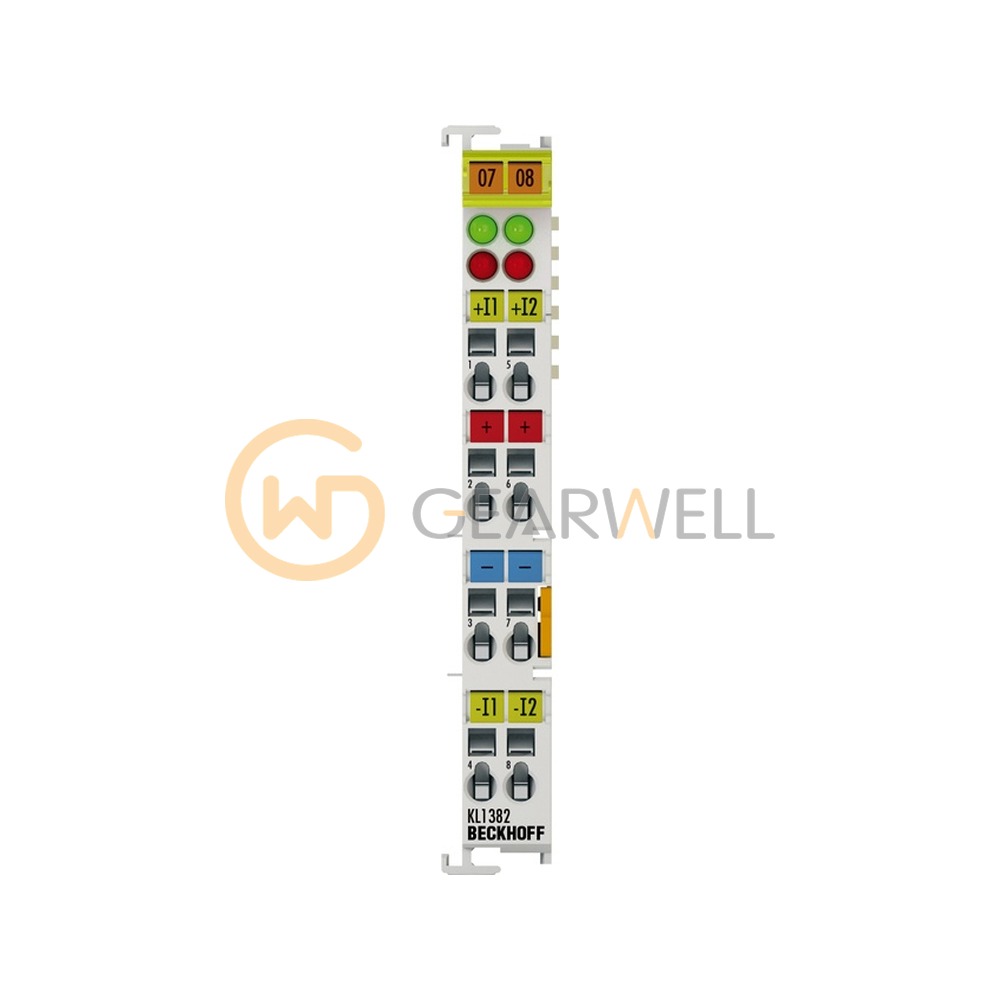

BECKHOFF KL1382 2-Channel Digital Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL1382
- GEARWELL SKU
- GWP-000008170
- Category
- PLCs & I/O
Key specifications
- Diagnostics
- open-circuit monitoring > 8 kΩ, short-circuit diagnostic < 25 Ω
- Input filter
- typ. 30 ms
- Sensor voltage
- ≤ 5 V
- Nominal voltage
- 24 V (-15%/+20%)
- Number of inputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL1382 is a 2-channel thermistor input Bus Terminal (K-bus) for thermal machine protection, signalling excess temperature at 3 kΩ or more and release at 1.5 kΩ or less. It monitors the sensor circuit for open circuit (above 8 kΩ) and short circuit (below 25 Ω). Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL1382 2-Channel Digital Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL1382 |
| Category | PLCs & I/O |
| Diagnostics | open-circuit monitoring > 8 kΩ, short-circuit diagnostic < 25 Ω |
| Input filter | typ. 30 ms |
| Sensor voltage | ≤ 5 V |
| Nominal voltage | 24 V (-15%/+20%) |
| Number of inputs | 2 |
| Signal “0” release | ≤ 1.5 kΩ |
| Connection technology | 2-wire |
| Signal “1” excess temperature | ≥ 3 kΩ |
