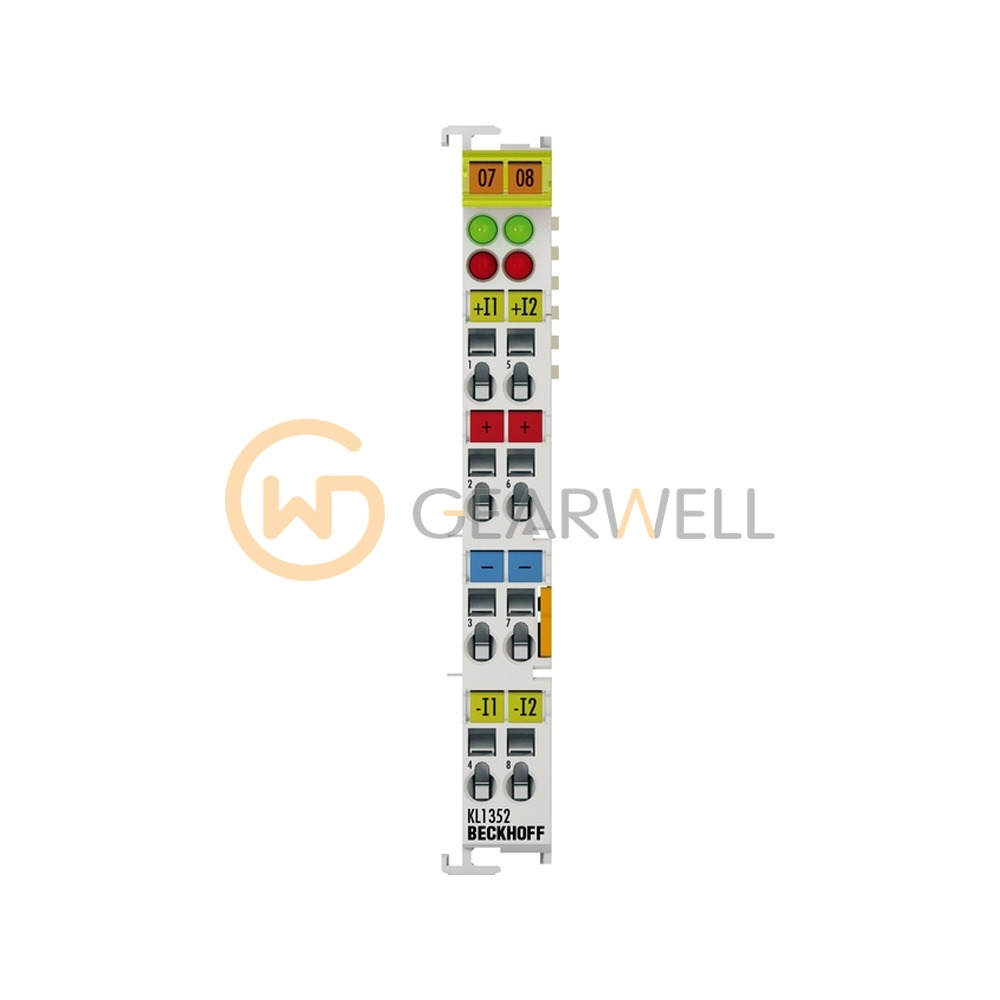

BECKHOFF KL1352 2-Channel Digital Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL1352
- GEARWELL SKU
- GWP-000007150
- Category
- PLCs & I/O
Key specifications
- Number of inputs
- 2
- Signal current “0”
- ≤ 1.2 mA
- Signal current “1”
- ≥ 2.1 mA
- Open circuit voltage
- typ. 8.2 V DC
- Switching hysteresis
- 0.2 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL1352 is a 2-channel digital input Bus Terminal (K-bus) for NAMUR sensors, with 2-wire connection and short-circuit detection above 6.5 mA. The open-circuit voltage is typically 8.2 V DC and the input filter typically 3 ms. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL1352 2-Channel Digital Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL1352 |
| Category | PLCs & I/O |
| Number of inputs | 2 |
| Signal current “0” | ≤ 1.2 mA |
| Signal current “1” | ≥ 2.1 mA |
| Open circuit voltage | typ. 8.2 V DC |
| Switching hysteresis | 0.2 mA |
| Connection technology | 2-wire |
| Short-circuit current | typ. 8.2 mA |
| Short-circuit detection | > 6.5 mA |
