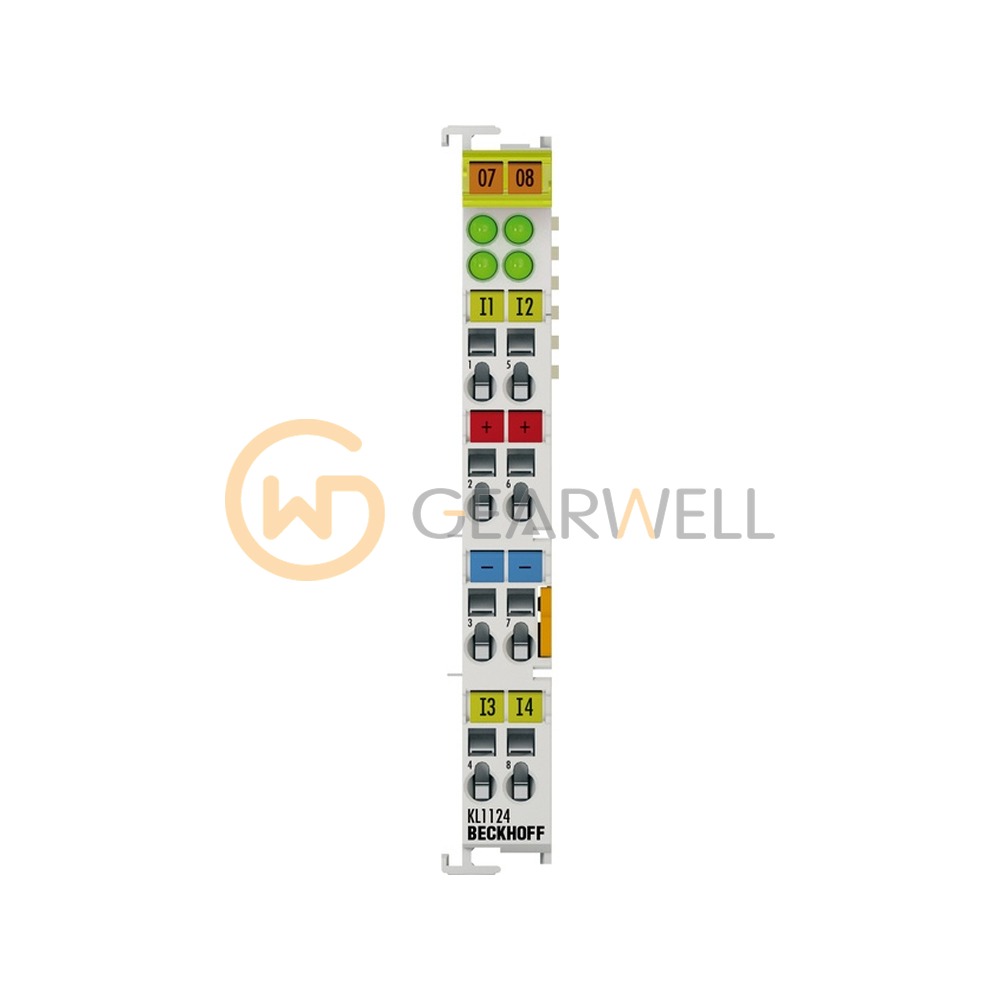

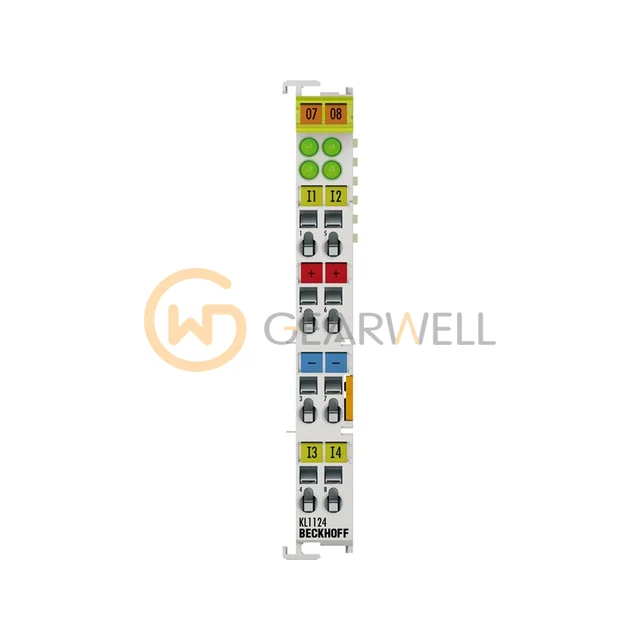

BECKHOFF KL1124 4-Channel Digital Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL1124
- GEARWELL SKU
- GWP-000008169
- Category
- PLCs & I/O
Key specifications
- Input filter
- typ. 0.2 ms
- Input current
- typ. 50 µA
- Nominal voltage
- 5 V DC
- Number of inputs
- 4
- Electrical isolation
- 500 V (K-bus/field potential)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL1124 is a 4-channel digital input Bus Terminal (K-bus) for 5 V DC signals with a typical 0.2 ms input filter and 2- or 3-wire connection. The 5 V DC supply is fed via the power contacts. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL1124 4-Channel Digital Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL1124 |
| Category | PLCs & I/O |
| Input filter | typ. 0.2 ms |
| Input current | typ. 50 µA |
| Nominal voltage | 5 V DC |
| Number of inputs | 4 |
| Electrical isolation | 500 V (K-bus/field potential) |
| Connection technology | 2-/3-wire |
| Current consumption K-bus | typ. 5 mA |
| Current consumption power contacts | typ. 1 mA + load |
