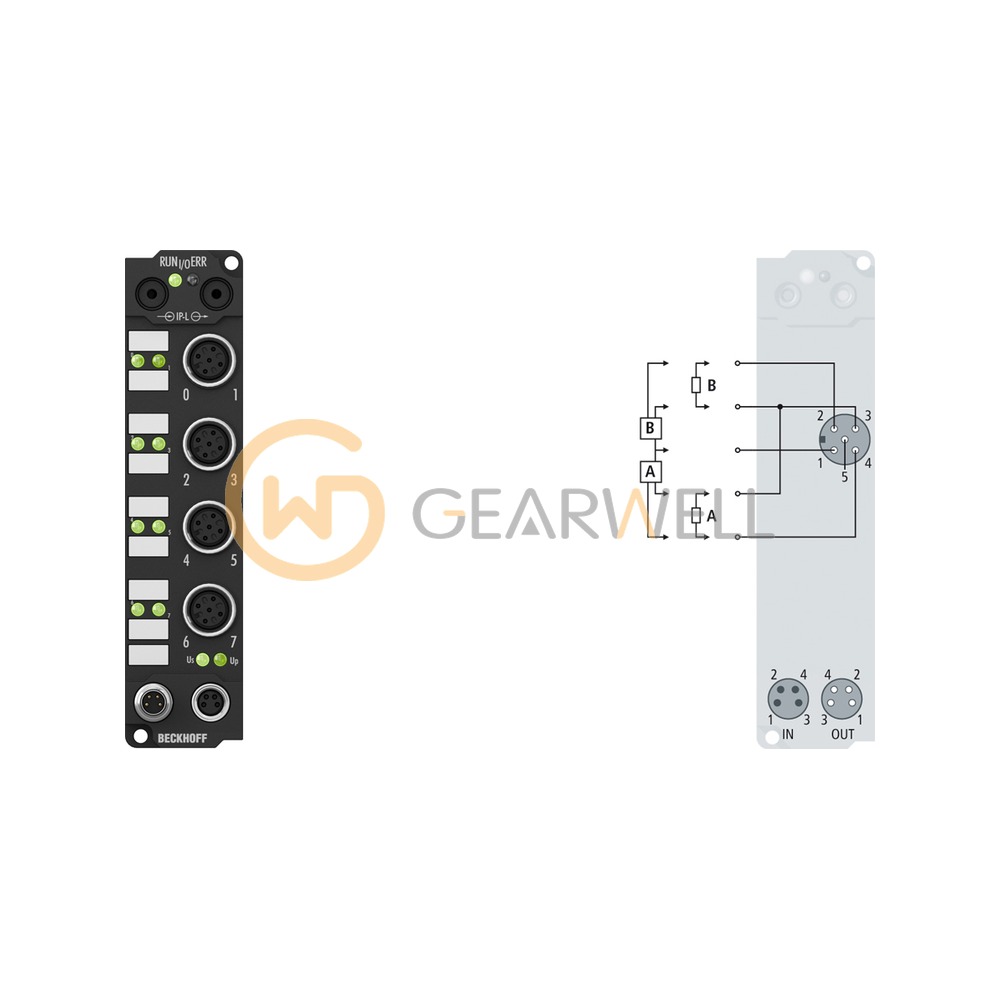

BECKHOFF IE2002 Extension Box, 8-channel digital output, 24 V DC, 0.5 A, M12
- Brand
- BECKHOFF
- Model
- IE2002
- GEARWELL SKU
- GWP-000015015
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Number of outputs
- 8
- Max. output current
- 0.5 A per channel, individually short-circuit proof
- Output connections
- M12, screw type
- Short-circuit current
- typ. 1.5 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BECKHOFF IE2002 Extension Box, 8-channel digital output, 24 V DC, 0.5 A, M12 |
|---|---|
| Brand | BECKHOFF |
| Model | IE2002 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Number of outputs | 8 |
| Max. output current | 0.5 A per channel, individually short-circuit proof |
| Output connections | M12, screw type |
| Short-circuit current | typ. 1.5 A |
| Nominal output voltage | 24 V DC (-15%/+20%) |
| Auxiliary power current | typ. 20 mA per channel |
| Current consumption from U S (without sensor current) | 25 mA |
